YOKOGAWA WT5000 User Manual

2-23
IM WT5000-02EN
2.7 Setting the Line Filter and Frequency Filter
• When Line Filter Advanced Settings Is Set to ON
You can set the following filters separately.
• AAF (anti-aliasing filter)
• DLF (N) (normal measurement line filter)
• DLF(H) (harmonics line filter)

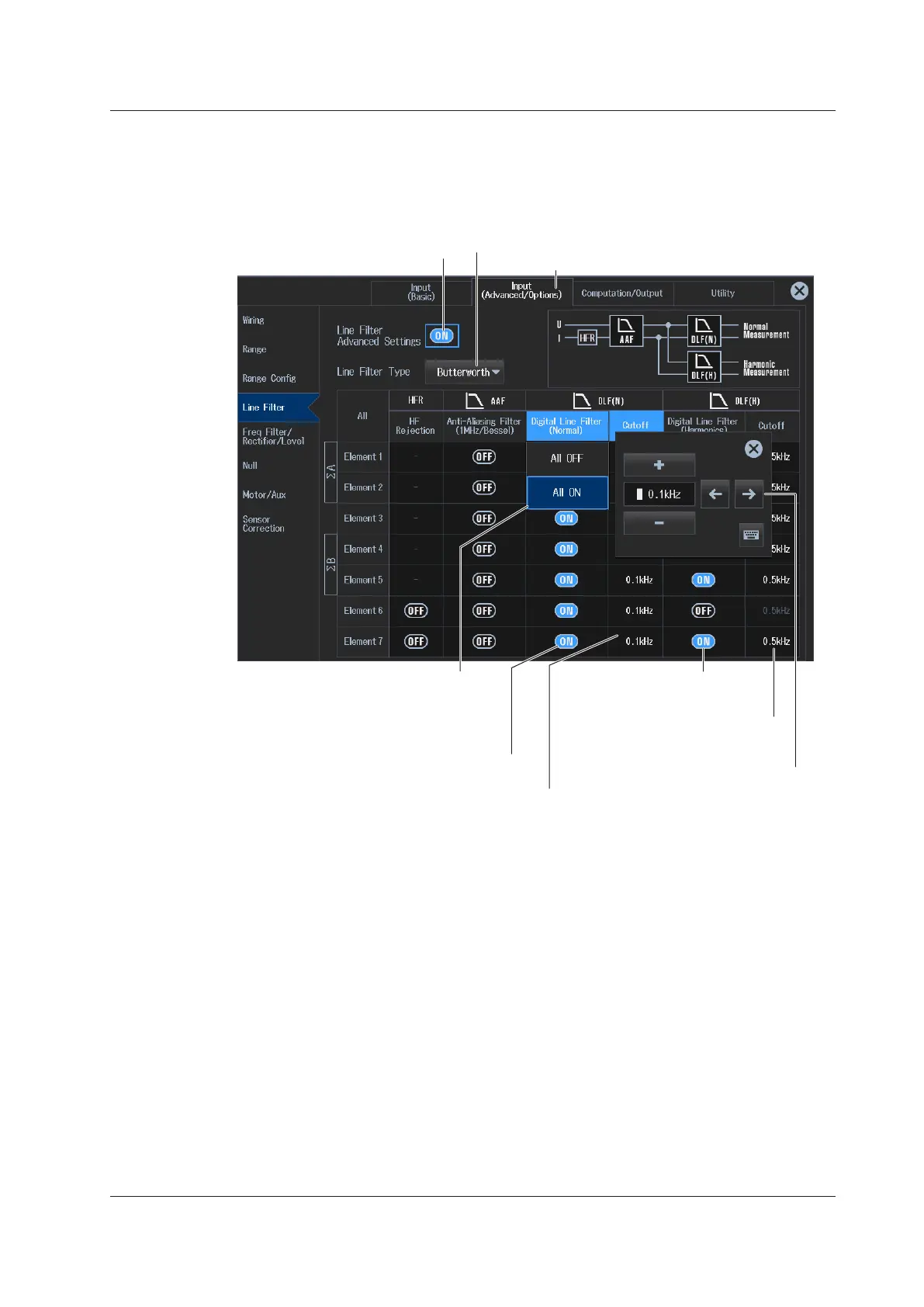

Input (Advanced/Options) tab
Turns line filter advanced settings
on or off
Set the filter type (Butterworth, Bessel).
By tapping Cutoff, you can set the
value collectively for all elements.
By tapping HF Rejection (input element
760903 only), Anti-Aliasing Filter, Digital
Line Filter (Normal), or Digital Line Filter
(Harmonics), you can turn on or off the
function on all elements collectively.
Set the cutoff frequency of the digital line filter (for normal
measurement) (0.1 kHz to 100.0 kHz (0.1 kHz steps)).
Turns the digital line filter (for normal
measurement) on and off
Set the cutoff frequency of the digital
line filter (for harmonic measurement)
(0.1 kHz to 100.0 kHz (0.1 kHz steps)).
Turns the digital line filter (for
harmonic measurement) on and off

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
