2.7 Setting the Line Filter and Frequency Filter
Setting the Frequency Filter (Sync Source/Freq Measurement)
3.
Tap Freq Filter/Rectifier/Level. A frequency filter setup screen appears.
4.
Tap Sync Source/Freq Measurement. A Sync Source/Freq Measurement (sync source/
frequency measurement) screen appears.

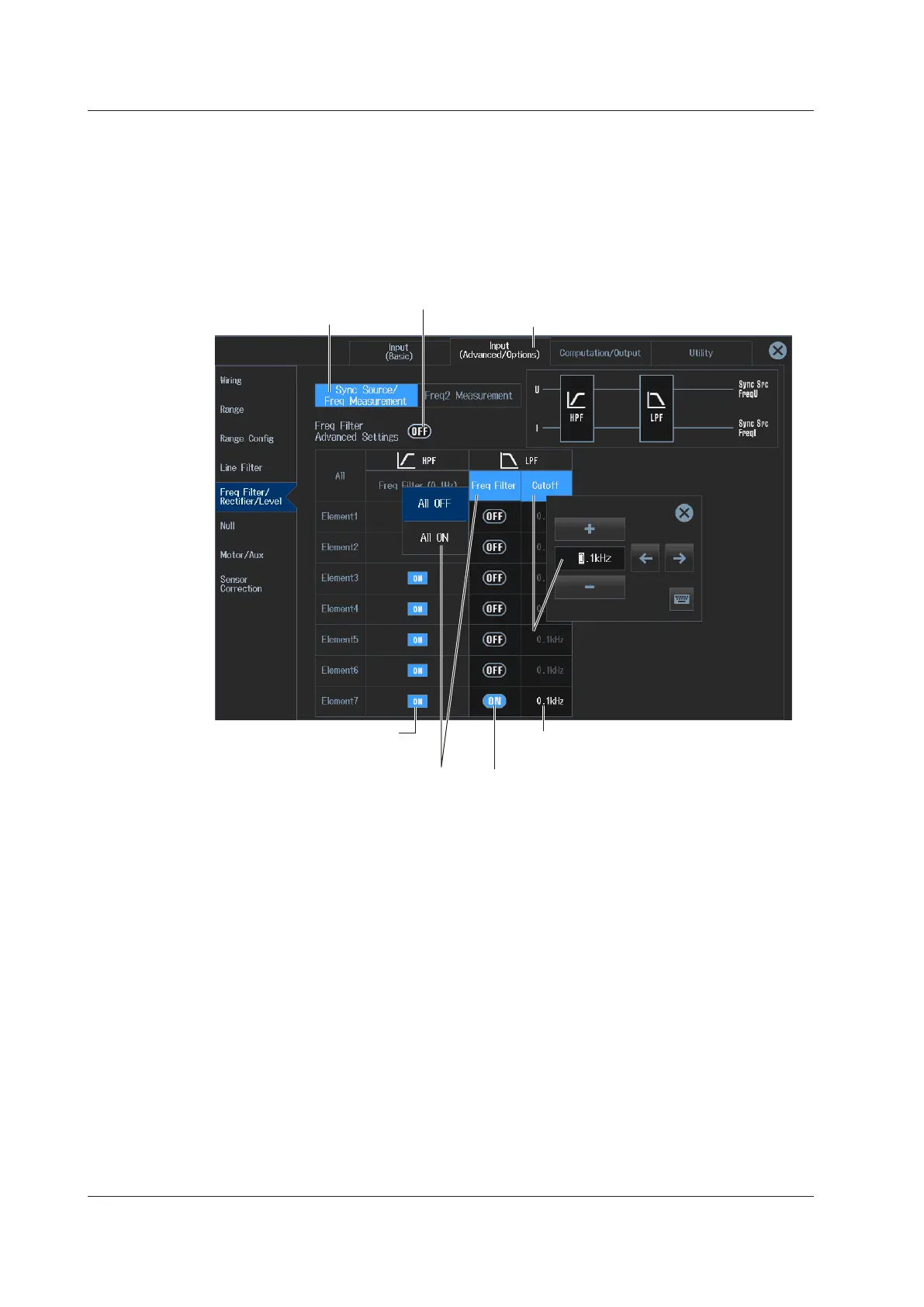

• When Freq Filter Advanced Settings Is Set to OFF
You can set the cutoff frequency of the low-pass filter (LPF).
Input (Advanced/Options) tab
Turns freq filter advanced settings on or off
Set sync source and
frequency measurement.
By tapping Cutoff, you can set the
value collectively for all elements.
By tapping Freq Filter, you can turn on or
off the feature on all elements collectively.
Set the cutoff frequency of the low-pass filter
(LPF) (0.1 kHz to 100.0 kHz (0.1 kHz steps)).
Turns the low-pass filter (LPF) on or off
The high-pass filter (HPF)
is fixed to on.
