2-31

IM WT5000-02EN

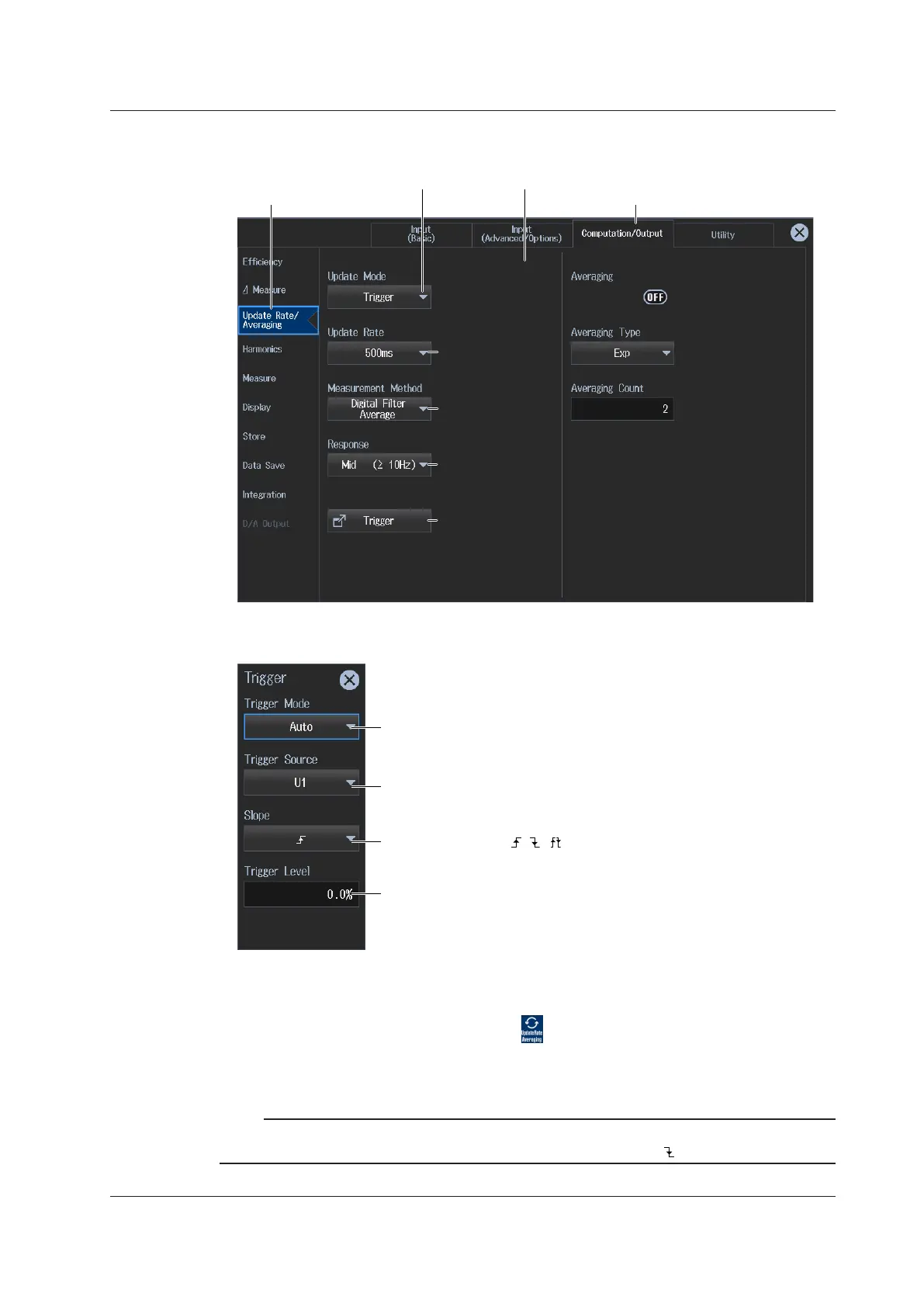

2.10 Setting the Data Update Interval

• When the Data Update Mode Is Set to Trigger

Set the data update interval.

Set the measure method.

(See the previous page.)

Set the update interval.

(See the previous page.)

Set the response.

(See the previous page.)

Trigger Setting

Averaging screen

See section 2.13.

Computation/Output tab

Update Rate screen

(when the data update mode is set to trigger)

Set the data update mode.

(Constant, Trigger)

Trigger Setting

Set the trigger slope ( , , ).

You cannot use this when the trigger source is set to Ext Clk.

Set the trigger mode (Auto, Normal).

Set the trigger source (U1 to U7, I1 to I7, Ext Clk).

Set the trigger level (0.0% to ±100.0%).

You cannot use this when the trigger source is set to Ext Clk.

Procedure Using the Menu Icons

You can also use the menu icons shown on the right side of the screen to set the data update interval.

Tap the Update Rate/Averaging menu icon . An Update Rate./Averaging menu appears in

the sub menu area on the right side of the screen.

By tapping the displayed items, you can specify the same settings as when using the keys explained

earlier.

Note

• For details on the Update Rate/Averaging menu, see page ix.

• When the trigger source is set to Ext Clk, you cannot set the trigger slope ( fixed to falling).
