Accessories
101

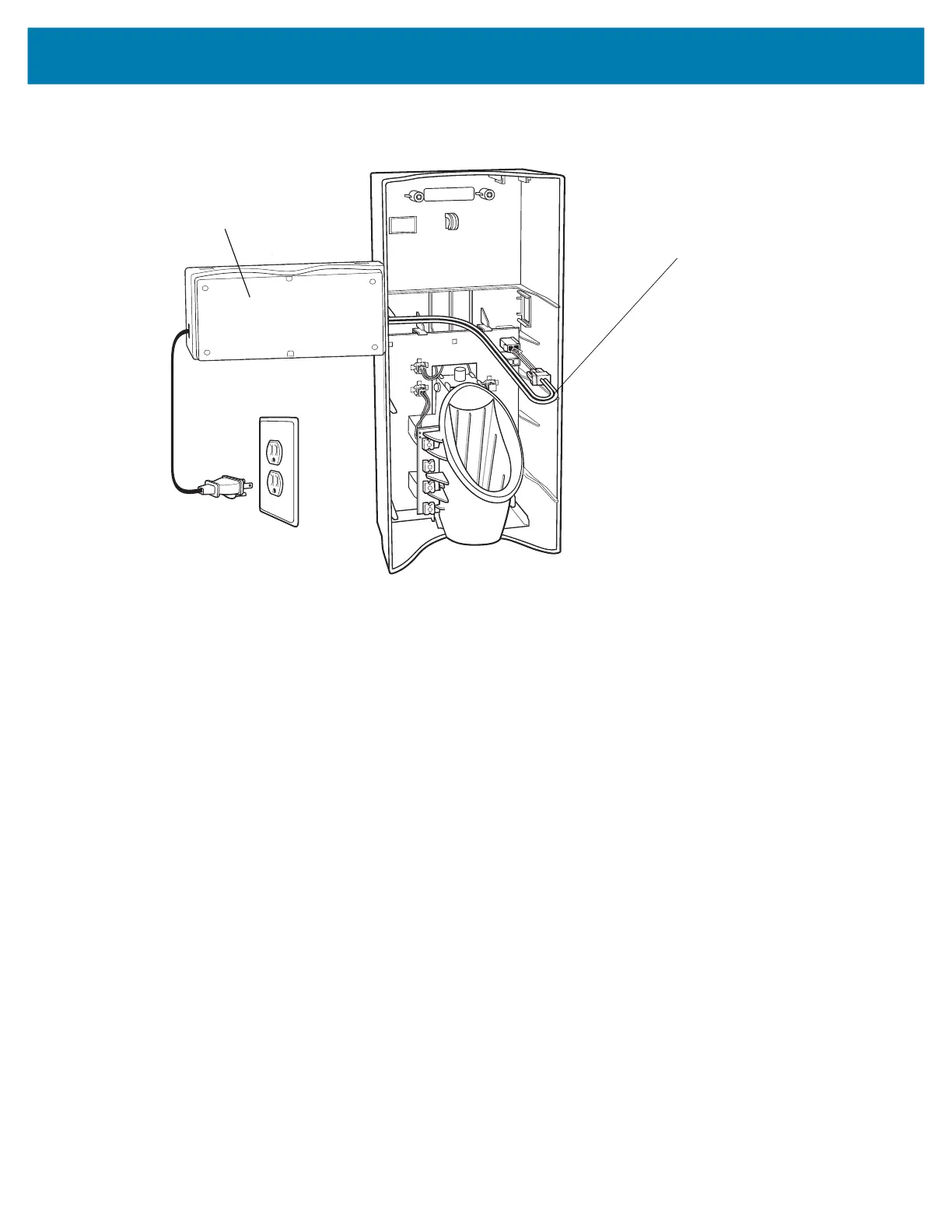

Figure 46 Connecting Power Supply
2. Insert power cable through a cable outlet of cradle back housing.
3. Plug connector into power connector on printed circuit board.
4. If more than one cradle is being installed, connect the interconnect cable from the first cradle to the
second cradle.
Power Cable CBL-DC-394A1-01
Power Supply
PWR-BGA12V108W0WW
(inside Decorative Housing)
MC18 Product Reference Guide.book Page 101 Tuesday, June 30, 2020 9:07 PM
