Single Slot Cradle
PS20 Interface Connector Pin-Outs

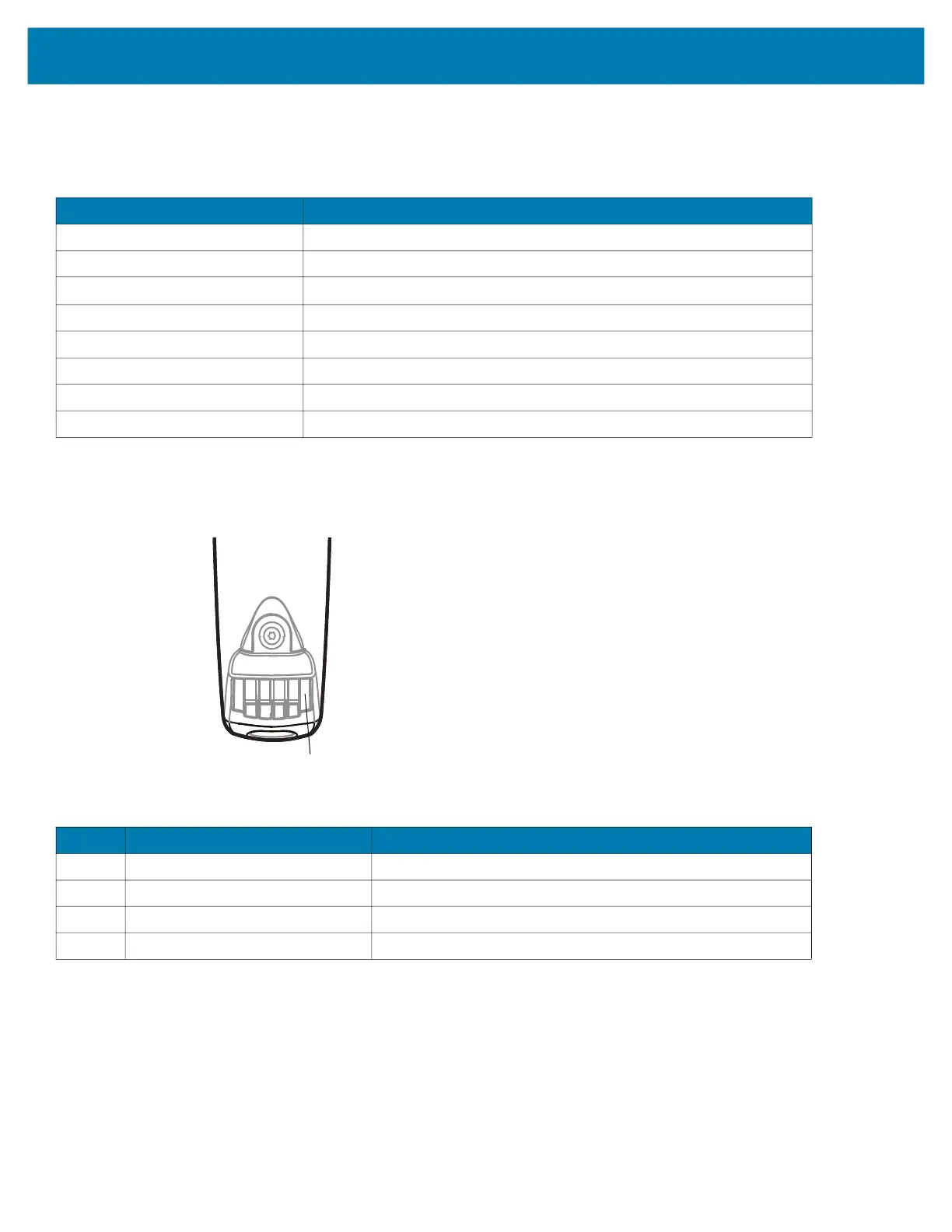

Figure 79 Power Connector Pin-Outs
Table 21 Cradle Specifications
Item Description
Operating Temperature 0° C to +40° C (32° F to 104° F)
Storage Temperature -20° C to 60° C (-4° F to 140° F)
Battery Charging Temperature
0° C to +40° C (32° F to 104° F) ambient temperature
Humidity 10% to 95% non-condensing
Size (L x W x H) 98 mm x 127 mm x 272 mm (4 in. x 5 in. x 10.7 in.)
Weight 620 g (21.87 oz)
Power Supply 12.0 VDC,9.0 A
Electrostatic Discharge (ESD) ±15 k VDC air discharge, ± 8 k VDC contact discharge
Pin 1
Table 22 Power Connector Pin-Outs
PIN Signal Name Function
1 +5V Input power
2 TX Transmit Output to Cradle
3 RX Receive Input from Cradle
4 GND Ground
MC18 Product Reference Guide.book Page 146 Tuesday, June 30, 2020 9:07 PM

Zebra PS20 Specifications

General

Operating system version	11
Operating system installed	Android
Operating system upgradeable	Yes
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
RFID reader	-
Scanner type	1D/2D
Certification	WFA
Product color	Light grey
Phone function	No
Display diagonal	4 \
Display resolution	- pixels
Speakers	Mono
Number of microphones	1
Flash memory	16 GB
Internal memory	4 GB
Battery capacity	3500 mAh
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Quantity per pack	10 pc(s)
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	218 mm
Width	78.6 mm
Height	75 mm
Weight	290 g
