Zebra PS20 Product Reference Guide

Accessories
105

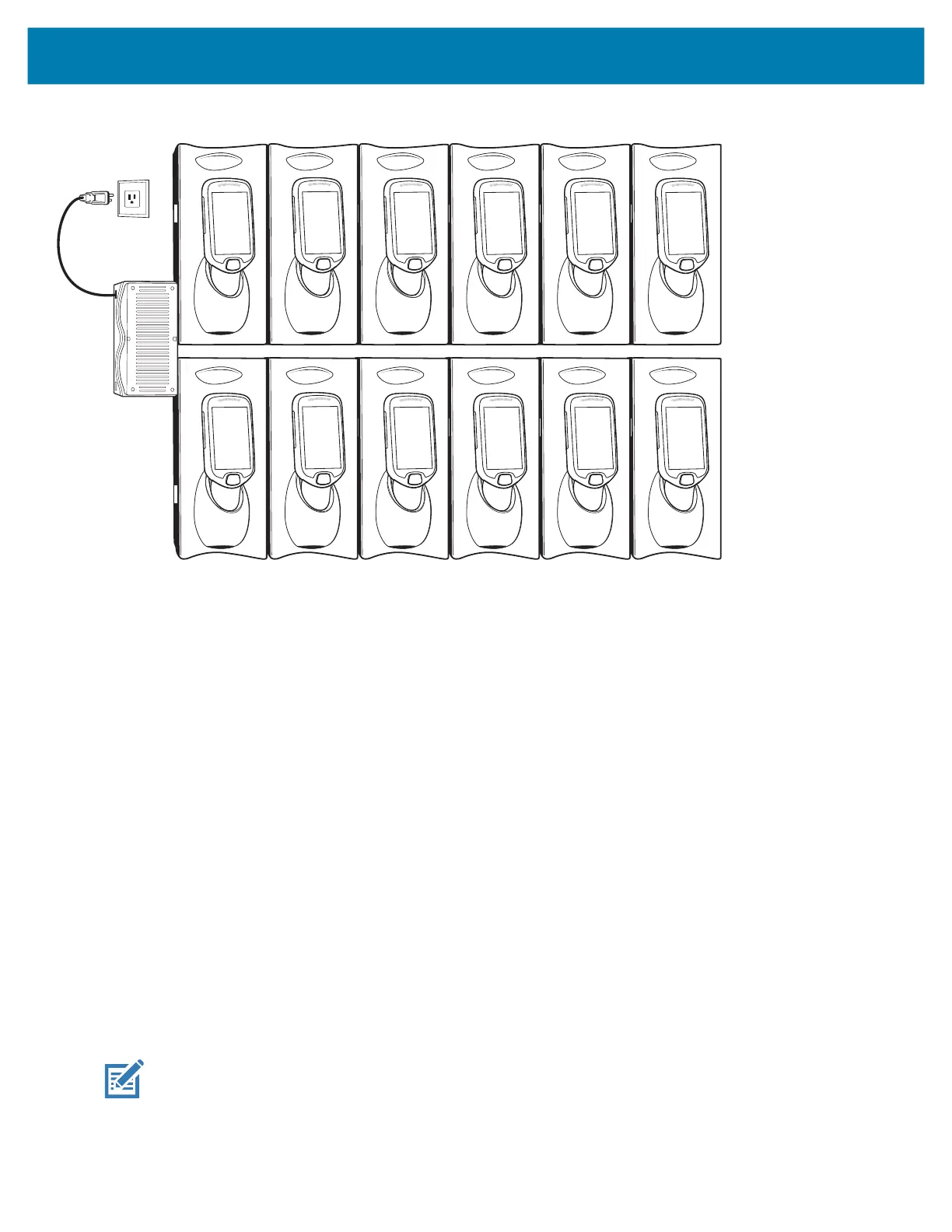

Figure 52 Maximum Number of Charge Cradles per Power Supply with “Y” Power Cable
Installation of the Three Slot Cradle
Installation of the Three Slot Cradle include the following mounting steps:
• Select the mounting configuration (see Mounting Configurations on page 105)
• Select the charging mode (see Charging Modes on page 107)
• Mount the Three Slot Cradles on a dispenser wall (see Mounting the Three Slot Cradle on a Dispenser
Wall on page 109)
• Set the cradle(s) (see Controlling the Cradle on page 57)
Mounting Configurations
Three slot cradles can be installed in the following mounting configurations:
• High Density (HD) configuration - Using HD cradles
• Super High Density (SHD) configuration - Using SHD cradles
• Desktop configuration - Using stand alone cradle(s) on a flat surface
High Density Configuration
The cradle can be installed in high density configuration so that the display of the PS20 devices are facing
the user. In this configuration, cradles are installed with a vertical gap of 35mm between each other.
NOTE: In high density configuration, the PS20 units have a 10-degree forward-facing tilt that should be
taken in consideration, especially if furniture is planned to be placed in front of the dispenser wall.
MC18 Product Reference Guide.book Page 105 Tuesday, June 30, 2020 9:07 PM

Zebra PS20 Specifications

General

Operating system version	11
Operating system installed	Android
Operating system upgradeable	Yes
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
RFID reader	-
Scanner type	1D/2D
Certification	WFA
Product color	Light grey
Phone function	No
Display diagonal	4 \
Display resolution	- pixels
Speakers	Mono
Number of microphones	1
Flash memory	16 GB
Internal memory	4 GB
Battery capacity	3500 mAh
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Quantity per pack	10 pc(s)
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	218 mm
Width	78.6 mm
Height	75 mm
Weight	290 g
