Fast Charging Mode
• In fast charging mode, no more than six cradles can be powered off of one power supply unit (p/n
PWR-BGA12V108W0WW) using power cable CBL-DC-394A1-01.
• In fast charging mode, the current draw by each docked PS20 can reach a maximum of 1.5A.
Mounting the Single Slot Cradle on a Dispenser Wall
The cradle contains two mounting holes in the back housing so that it can be hanged on screws fixed to a
supporting furniture. In addition, it comes with plugs and a variety of cable routing outlets. Figure 44 on
page 99 provides the necessary information about the location and dimensions of the mounting holes of
the cradle.
To mount the Single Slot Cradle:
1. Loosen two captive screws securing the front cover to the base.

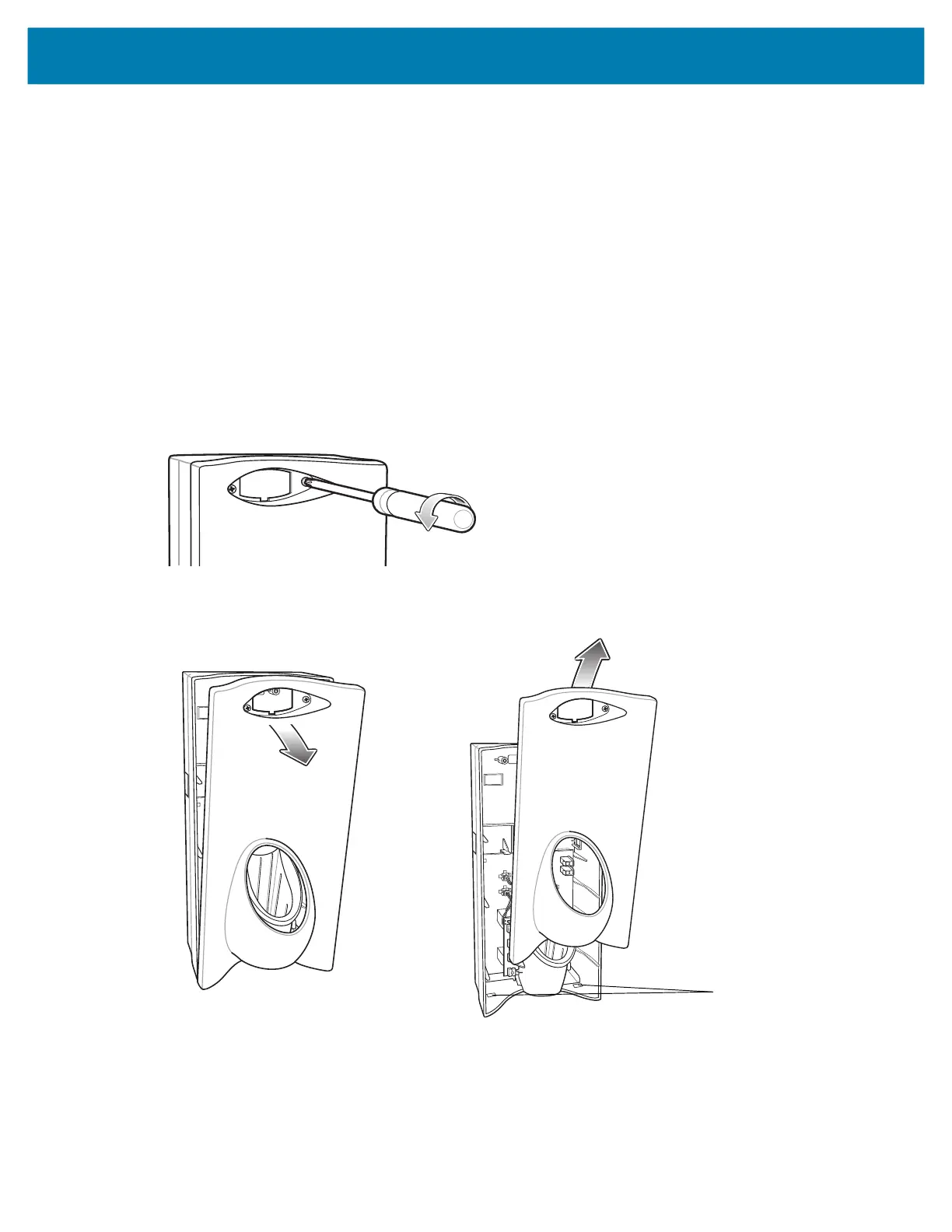

Figure 42 Remove Screws
2. Pull front cover away from base and then lift out of the base.
Figure 43 Cover Removal
3. Use two screws to hang the cradle on a wall.
Alignment Holes
