Zebra PS20 Product Reference Guide

Applications
64
11.
Select one of the following:
• QUICK AUDIT - A sample of cradles are validated and the expected data is compared to what is
actually found. Blinking cradles are displayed one after the other at the four corners. The device to
be validated should be placed in the middle slot of the blinking icon.
• FULL AUDIT - All cradles are validated and the expected data is compared to what is actually
found.
• RETURN TO HOME PAGE - Displays the CradleSmartConfig screen.
Auditing
Auditing validates that the cradles have been programmed correctly. The expected results should match
the results found.
Quick Audit
To perform a quick audit:
1. The four corner cradles will blink one after another. Place the device in the middle slot of the first
blinking cradle icon.
If the audit was successful and the expected results match the results found, a green screen displays. If
the audit failed and the expected results do not match the results found, a red screen displays.

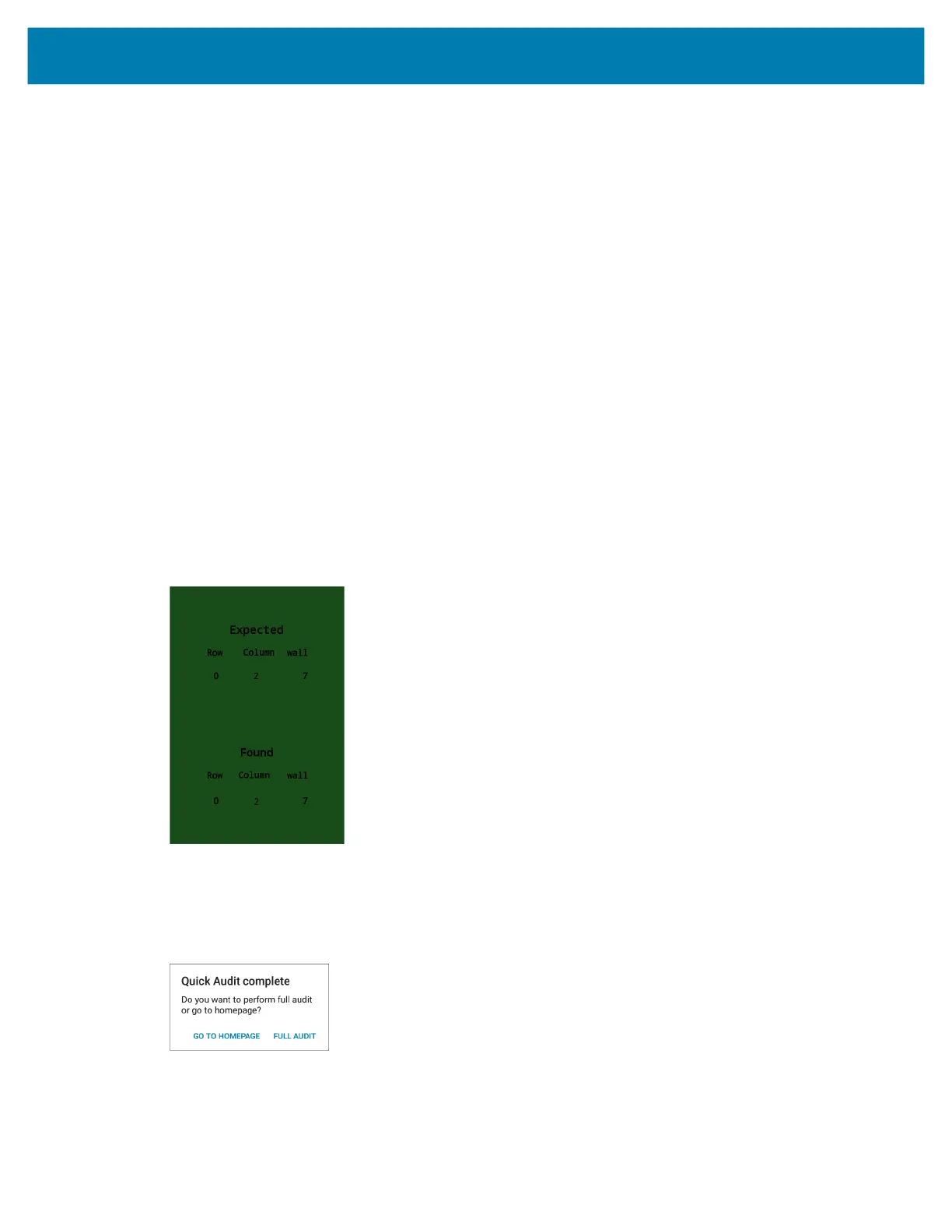

Figure 27 Successful Audit Screen
2. Moving in the direction specified, repeat until all cradles are validated.
The app detects when it has reached the end of the wall and the Quick Audit complete screen
displays.
Figure 28 Quick Audit Complete Screen
3. Select FULL AUDIT to perform a Full Audit or select GO TO HOMEPAGE to return to the
SmartCradleConfig screen.
MC18 Product Reference Guide.book Page 64 Tuesday, June 30, 2020 9:07 PM

Zebra PS20 Specifications

General

Operating system version	11
Operating system installed	Android
Operating system upgradeable	Yes
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
RFID reader	-
Scanner type	1D/2D
Certification	WFA
Product color	Light grey
Phone function	No
Display diagonal	4 \
Display resolution	- pixels
Speakers	Mono
Number of microphones	1
Flash memory	16 GB
Internal memory	4 GB
Battery capacity	3500 mAh
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Quantity per pack	10 pc(s)
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	218 mm
Width	78.6 mm
Height	75 mm
Weight	290 g
