Zebra PS20 Product Reference Guide

Applications
65
Full Audit
To perform a Full Audit:
1. Place the device in the first cradle, first slot in the top left corner (Row 1, Column 1).
The app detects the cradle in operation and starts validating the current slot.

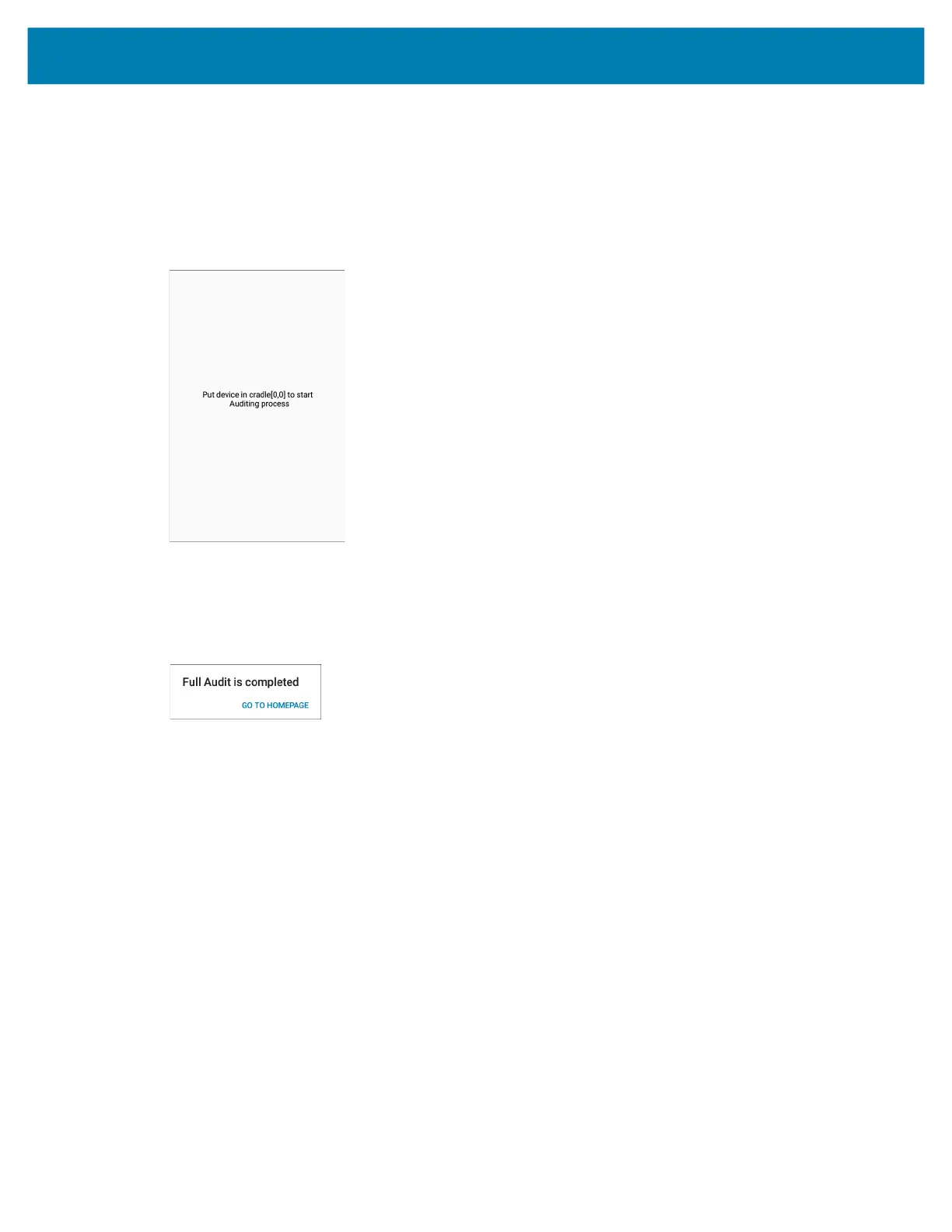

Figure 29 Start Audit Process
2. Moving in the direction specified, repeat until all cradles are validated.
The app detects when it has reached the end of the wall and the Full Audit is completed screen
displays.
Figure 30 Full Audit Complete Screen
3. Select GO TO HOMEPAGE to return to the SmartCradleConfig screen.
MC18 Product Reference Guide.book Page 65 Tuesday, June 30, 2020 9:07 PM

Zebra PS20 Specifications

General

Operating system version	11
Operating system installed	Android
Operating system upgradeable	Yes
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
RFID reader	-
Scanner type	1D/2D
Certification	WFA
Product color	Light grey
Phone function	No
Display diagonal	4 \
Display resolution	- pixels
Speakers	Mono
Number of microphones	1
Flash memory	16 GB
Internal memory	4 GB
Battery capacity	3500 mAh
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Quantity per pack	10 pc(s)
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	218 mm
Width	78.6 mm
Height	75 mm
Weight	290 g
