Accessories
107

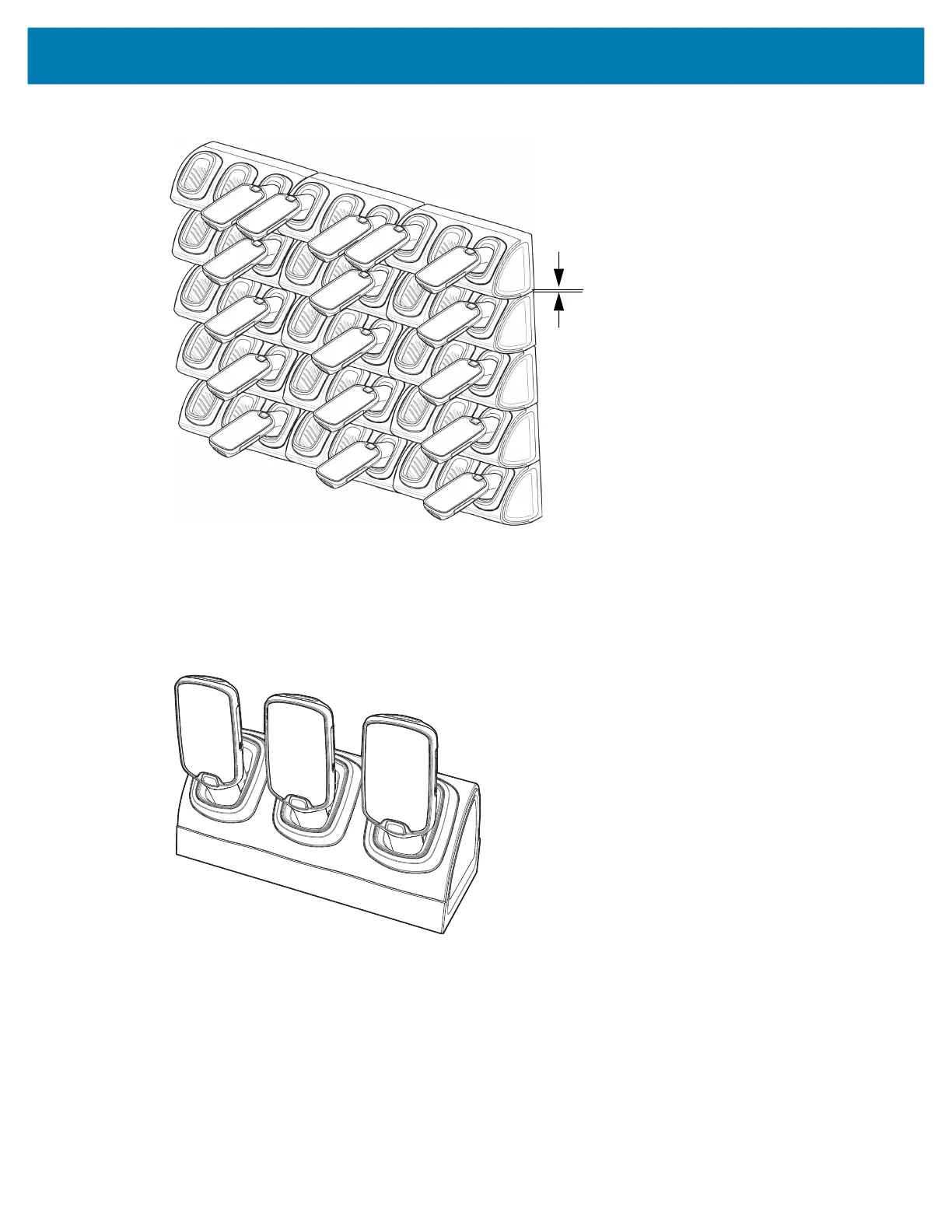

Figure 55 Installation in Super High Density Configuration
Desktop Configuration
In desktop configuration, the cradle can be placed on a flat tabletop or shelf at checkout or back room
locations.
Figure 56 Installation in Desktop Configuration
Charging Modes
Three Slot Cradles can be installed in the following charging modes:
• Standard charging
• Fast charging
There are some general charging considerations that must be taken into account when designing a
dispenser and ordering hardware elements of a system:
7mm
MC18 Product Reference Guide.book Page 107 Tuesday, June 30, 2020 9:07 PM
