Zebra PS20 Product Reference Guide

Applications
63
9.
Remove the device from the first cradle, and move in the specified direction to insert the device in the
next slot.
CradleSmartConfig directs the user to move in the proper direction. If the device is inserted into the
wrong slot, the user is prompted.

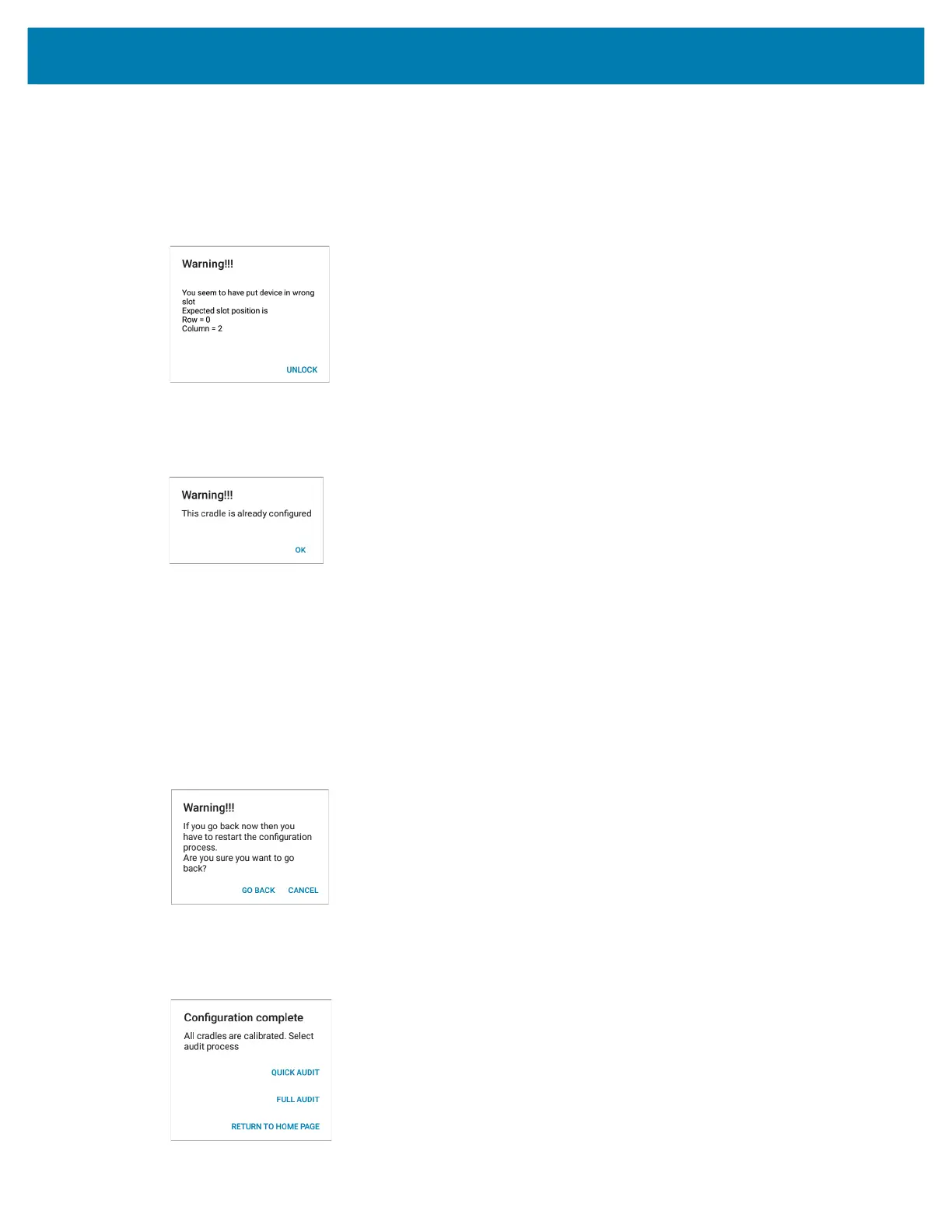

Figure 23 Warning! Wrong Slot
If the device is inserted into the same slot, a message indicates that the cradle has already been
configured.
Figure 24 Warning! Cradle Already Configured
Note that each slot on the Three Slot Cradle needs to be programmed separately. The app guides the
user to change rows in a zig-zag pattern for efficiency, with the first row going from left to right with
serial numbers (last digits) 1,2,3 and the next row going from right to left with serial numbers (last digits)
3,2,1. The app also guides the user to skip the empty or blank areas. In a single slot cradle, the HW
serial number last digit is 0.
10. Moving in the direction specified, repeat until all cradles are configured.
If the user abandons programming before the entire wall is completed, the user must start over from the
beginning.
Figure 25 Warning! Restart Configuration Screen
The app detects when it has reached the end of the wall and the Configuration complete dialog
displays.
Figure 26 Configuration Complete Dialog
MC18 Product Reference Guide.book Page 63 Tuesday, June 30, 2020 9:07 PM

Zebra PS20 Specifications

General

Operating system version	11
Operating system installed	Android
Operating system upgradeable	Yes
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
RFID reader	-
Scanner type	1D/2D
Certification	WFA
Product color	Light grey
Phone function	No
Display diagonal	4 \
Display resolution	- pixels
Speakers	Mono
Number of microphones	1
Flash memory	16 GB
Internal memory	4 GB
Battery capacity	3500 mAh
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Quantity per pack	10 pc(s)
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	218 mm
Width	78.6 mm
Height	75 mm
Weight	290 g
