Zebra PS20 Product Reference Guide

Applications
62
3.
Select SINGLE SLOT to program a wall of single slot cradles or select THREE SLOT to program a wall
of three slot cradles.
A map of cradle icons display, based on the number of rows and columns entered in the previous step.
For reference, the top left corner is Row 1, Column 1 (R1C1).
4. (Optional) Navigate around the screen.
To scroll left/right and up/down:
a. Touch and drag your finger on the screen.
b. Locate the graphic on the bottom of the screen to show where you are on the map. Scroll bars allow
you to drag the screen to see a portion of the total wall.
5. (Optional) Delete cradle slots not used. For example, placeholders for a kiosk, TV, computer monitor, or
unique store shapes.
To delete cradle slots:
a. Touch and hold (long press) the cradle slot icon.
b. Select DELETE to confirm.

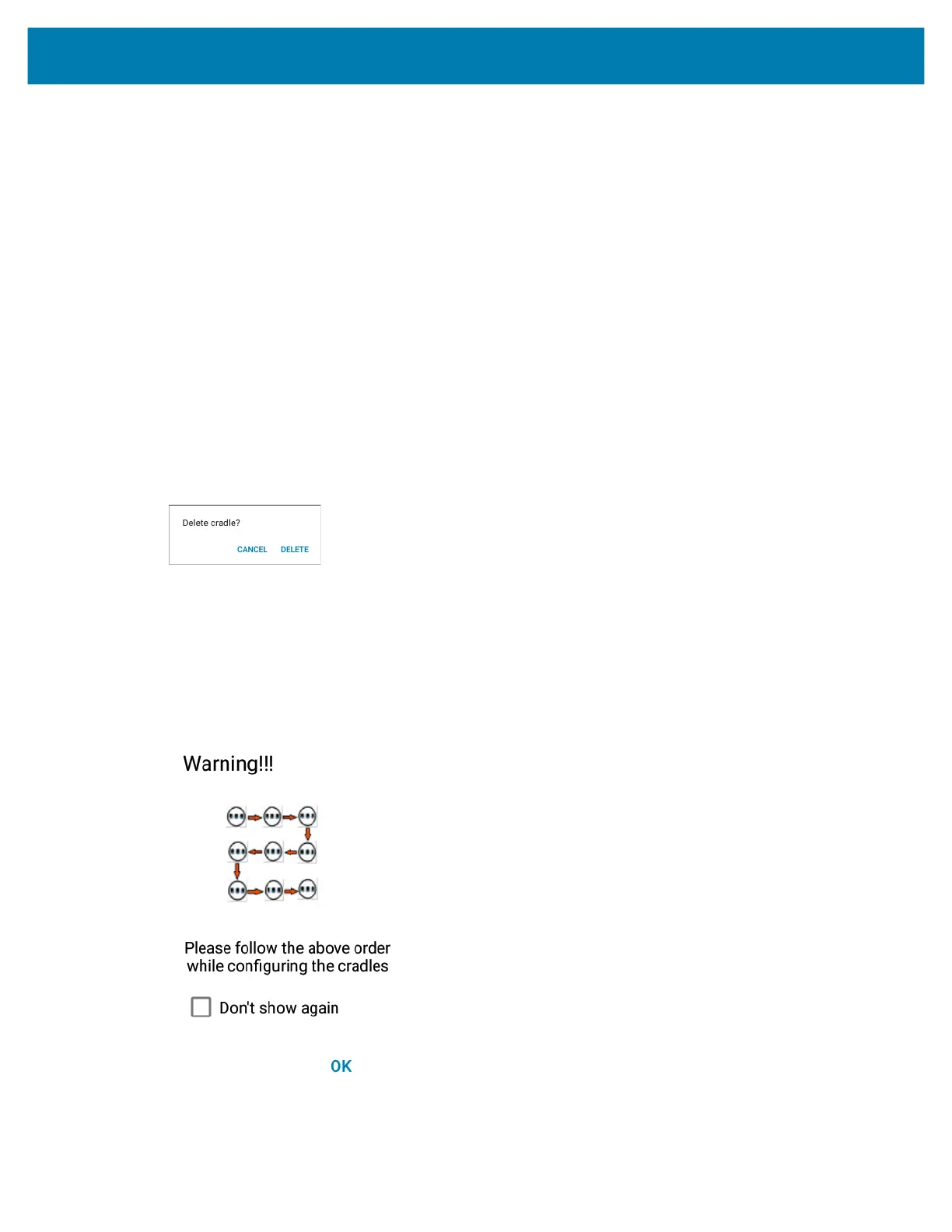

Figure 21 Delete Cradle
6. Insert a PS20 device in the first cradle in the top left corner (Row 1, Column 1).
7. Touch Start.
A Warning dialog displays indicating the correct sequence to follow when configuring the cradles.
8. Select Ok.
CradleSmartConfig programs the row, column, and wall information onto the cradle.
Figure 22 Warning Dialog - Follow Specified Order
After the first cradle is programmed successfully, a check mark appears in the location of the cradle
icon and an arrow on the screen points in the direction of where to insert the device in the next slot. An
audible sound or visual cradle charge indication may be present.
MC18 Product Reference Guide.book Page 62 Tuesday, June 30, 2020 9:07 PM

Zebra PS20 Specifications

General

Operating system version	11
Operating system installed	Android
Operating system upgradeable	Yes
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
RFID reader	-
Scanner type	1D/2D
Certification	WFA
Product color	Light grey
Phone function	No
Display diagonal	4 \
Display resolution	- pixels
Speakers	Mono
Number of microphones	1
Flash memory	16 GB
Internal memory	4 GB
Battery capacity	3500 mAh
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	40-bit WEP, 104-bit WEP, EAP-GTC, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Quantity per pack	10 pc(s)
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	218 mm
Width	78.6 mm
Height	75 mm
Weight	290 g
