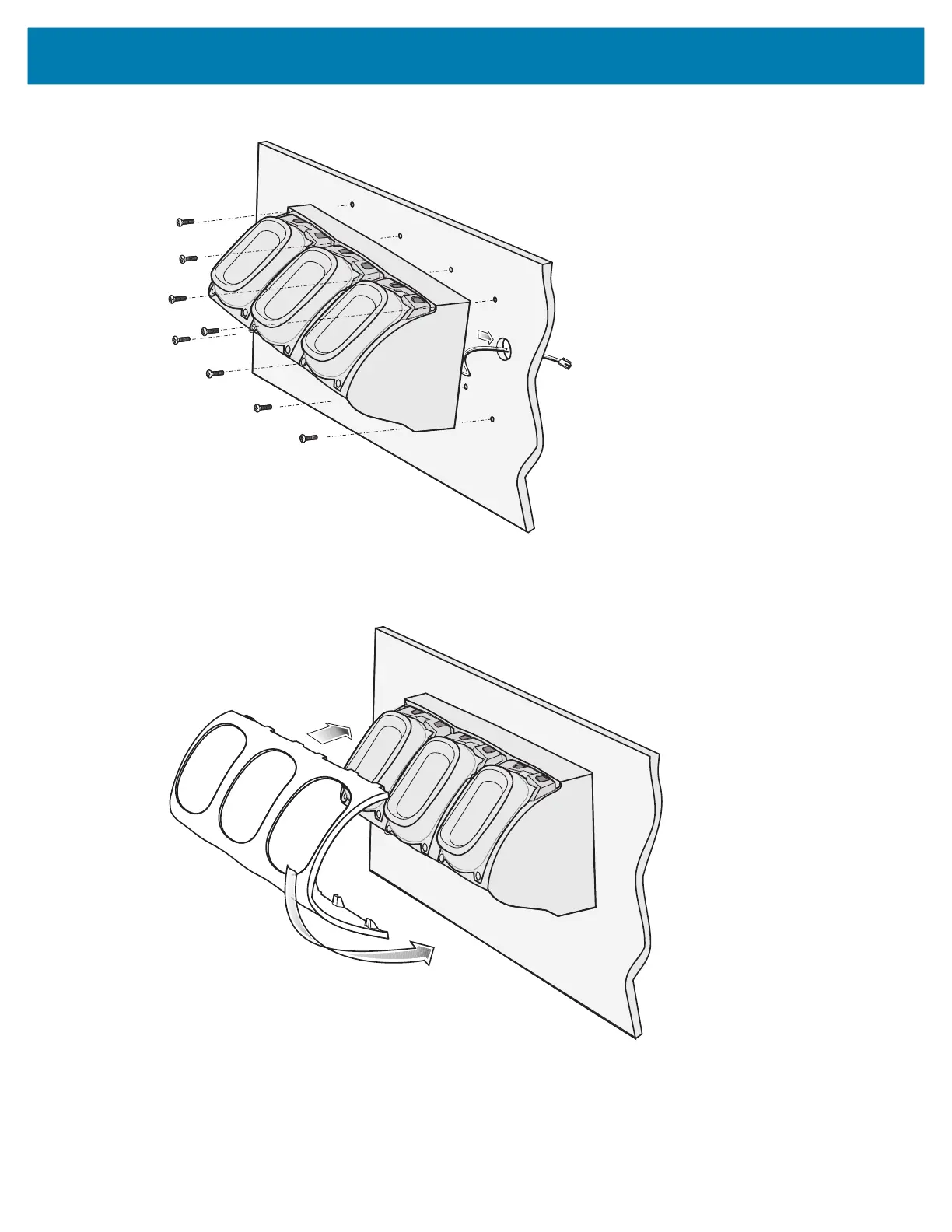

Figure 65 Three Slot Cradle - Fastening the Cradle to a Wall
10. Insert tabs on upper side of front cover into slots on cradle and rotate cover down until it snaps into
place.
Figure 66 Three Slot Cradle - Connecting the Front Cover
11. Plug Power Extension Cable (p/n CBL-MC18-EXINT1-01) to interconnect cable (p/n 25-66431-01R).
12. Plug “Y” cable (CBL-DC-392A1-02) to Interconnect cables (p/n 25-66431-01R).
13. Plug “Y” cable (CBL-DC-392A1-02) to power supply unit.
14. Secure power supply unit (p/n PWR-BGA12V108W0WW) to the back of the dispenser wall.
