Data Capture
77
3.
Adjust the position of the device so that the:
• Red aiming dot appears at the center of the barcode on devices with the SE4710 imager.
• White LED appears around the barcode on devices with the SE2100 imager.
Ensure the barcode is within the area formed by the aiming pattern. On devices with the SE4710
imager, the aiming dot is used for increased visibility in bright lighting conditions.
4. Press the Scan key.
The Status LED illuminates red. Upon successful decode, the Status LED changes from red to green
and an audible beep sounds.

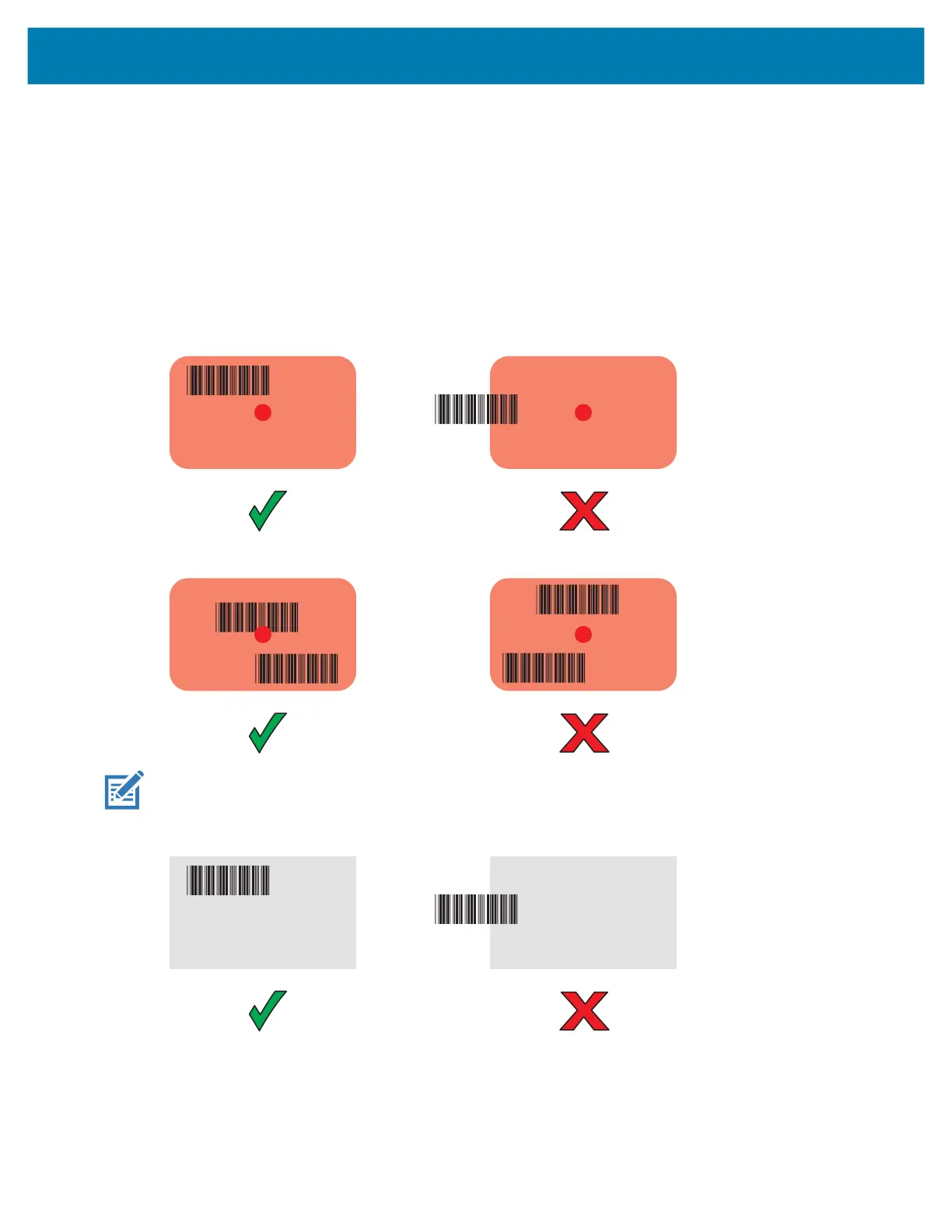

Figure 35 SE4710 Imager Decode Mode
Figure 36 SE4710 Imager Picklist Mode
NOTE: Picklist Mode is only available on the PS20 with the SE4710 imager. When the PS20 is in Picklist
Mode, the imager does not decode the barcode until the crosshair or aiming dot touches the barcode.
Figure 37 SE2100 Imager Decode Mode
5. Release the Scan key.
The barcode data displays on the screen.
MC18 Product Reference Guide.book Page 77 Tuesday, June 30, 2020 9:07 PM
