PUTTING THE INSTRUMENT INTO OPERATION
Axio Vert.A1
Mounting Standard Components Carl Zeiss
05/2012 431030-7044-001 51
3.1.10.2 Changing the Halogen Lamp for
Transmitted Light
WARNING
When changing the halogen lamp,
always be sure to allow for sufficient
cooling of the lamp and to pull the
power supply plug.
CAUTION
Do not touch the bulb with your
bare hands. I
bulb with pure alcohol before you
switch it on for the first time in
order to prevent dirt from burning
into the glass.
• Pull the illuminator cap (Fig. 3-14/1) upward off
the carrier support (Fig. 3-14/5).
• Pull the malfunctioning halogen lamp
(Fig. 3-13/2) out of the mount (Fig. 3-13/3).
• Insert the new halogen lamp (Fig. 3-13/2) into
the mount (Fig. 3-14/3). In so doing, make sure
that the tip of the mount engages in the
centering notch of the carrier plate (see arrow
in Fig. 3-13) of the halogen lamp.
• Plug the illuminator cap (Fig. 3-14/1) onto the
carrier support (Fig. 3-14/5). For proper
alignment, slide the notch in the cap onto the
alignment stud (Fig. 3-14/4).
• Reconnect the power plug.

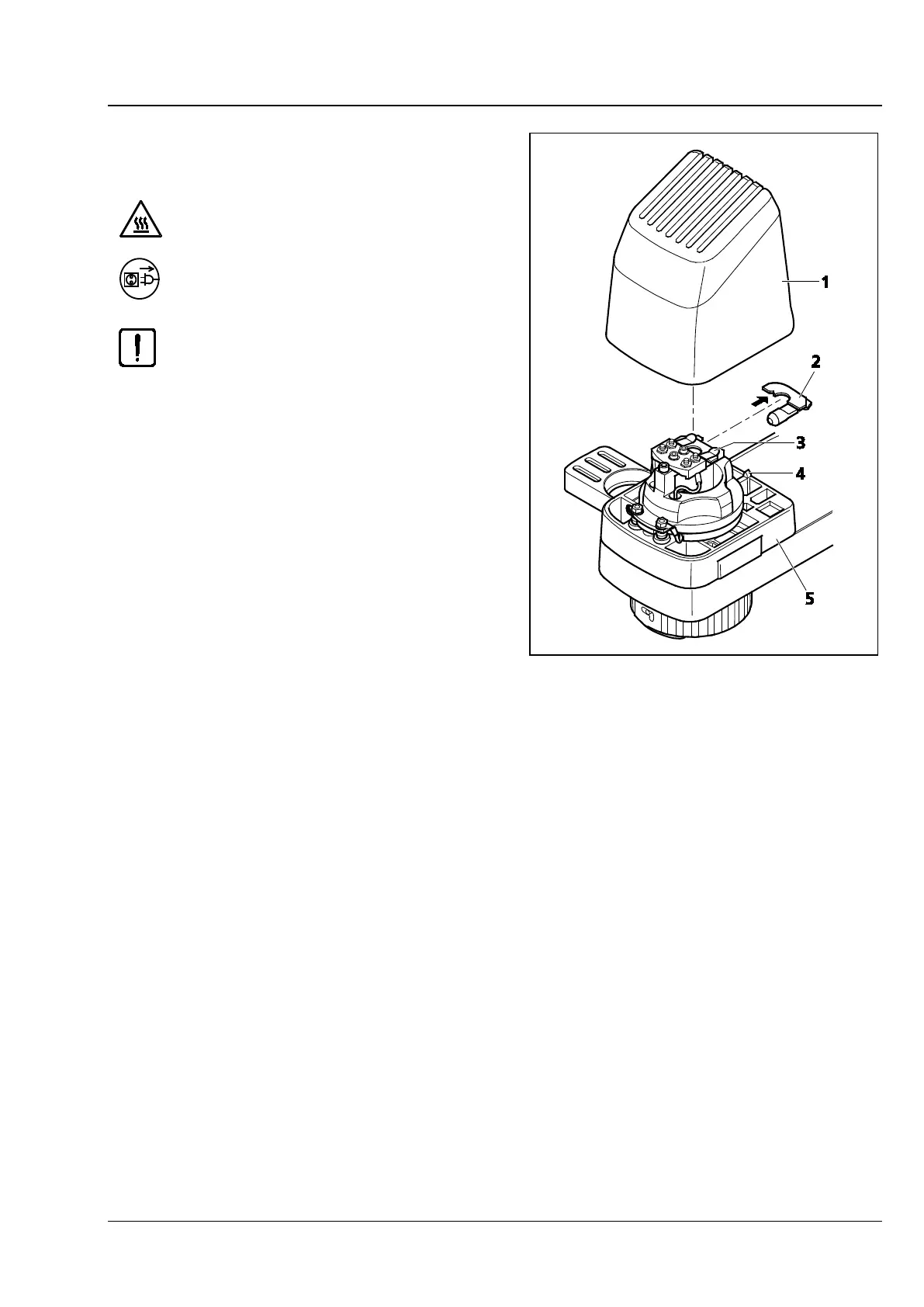

Fig. 3-14 Changing the Halogen Lamp for
Transmitted Light
