OPERATION
Axio Vert.A1
Illumination and Contrast Techniques in Reflected Light Carl Zeiss
05/2012 431030-7044-001 95
• Insert the FL attenuator into slot A for aperture sliders. Set the correct brightness with the adjustment
wheel.
• Additional excitation filters measuring 25 mm in diameter and held in position by O-rings can be
inserted into the additional filter slider (Fig. 4-17/8).

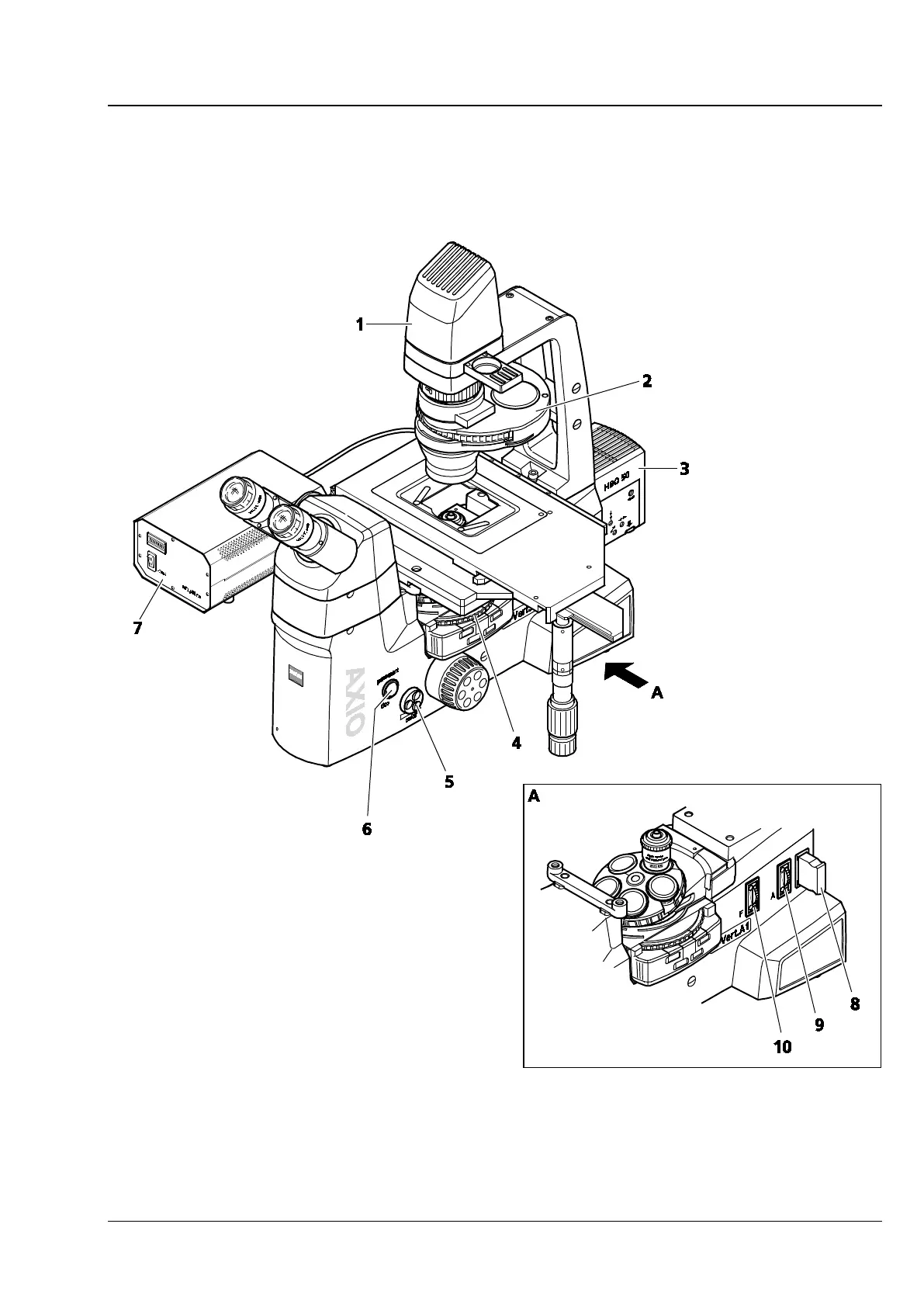

Fig. 4-17 Setting Fluorescence
