OPERATION
Carl Zeiss Micromanipulators Axio Vert.A1
96 431030-7044-001 05/2012
4.13 Micromanipulators
Axio Vert.A1 microscopes come prepared for the
use of micromanipulators.
For this purpose, there are two tapped holes each
to the right (Fig. 4-18/1) and left of the carrier for
transmitted light illumination, which are covered
by protective caps.
When employing micromanipulators, you may
want to use the condenser for stop sliders in a
position that has been rotated 90 degrees, so that
the slider is shifted lengthwise rather than
crosswise to the microscope axis.
Conflicts between the movements of the
manipulator and the slider are thus avoided, and
the slider is easier to operate.

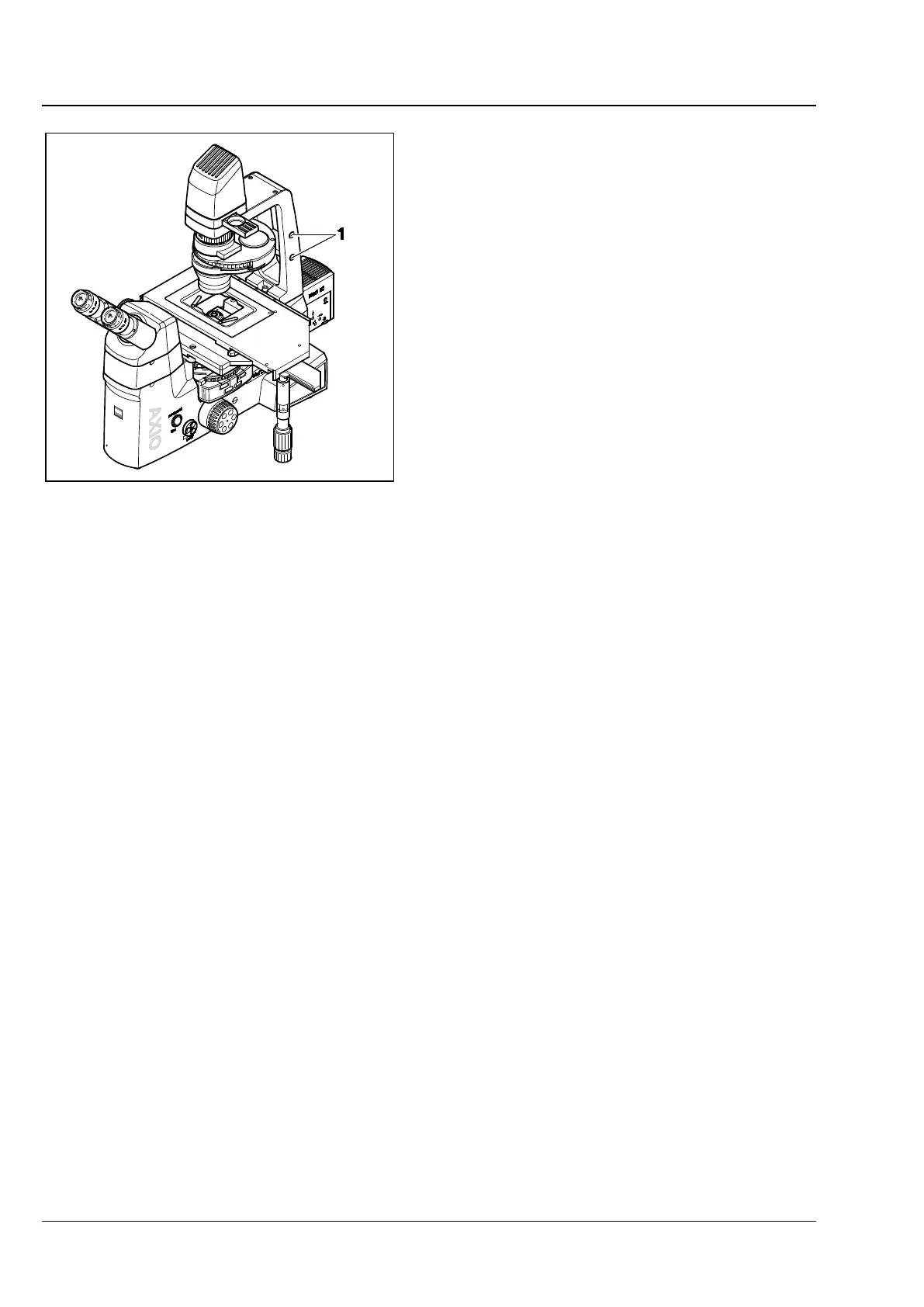

Fig. 4-18 Screw-on Options for
Micromanipulators
