5 First Operating Steps | 5.7 Working with Specific Specimen Types ZEISS

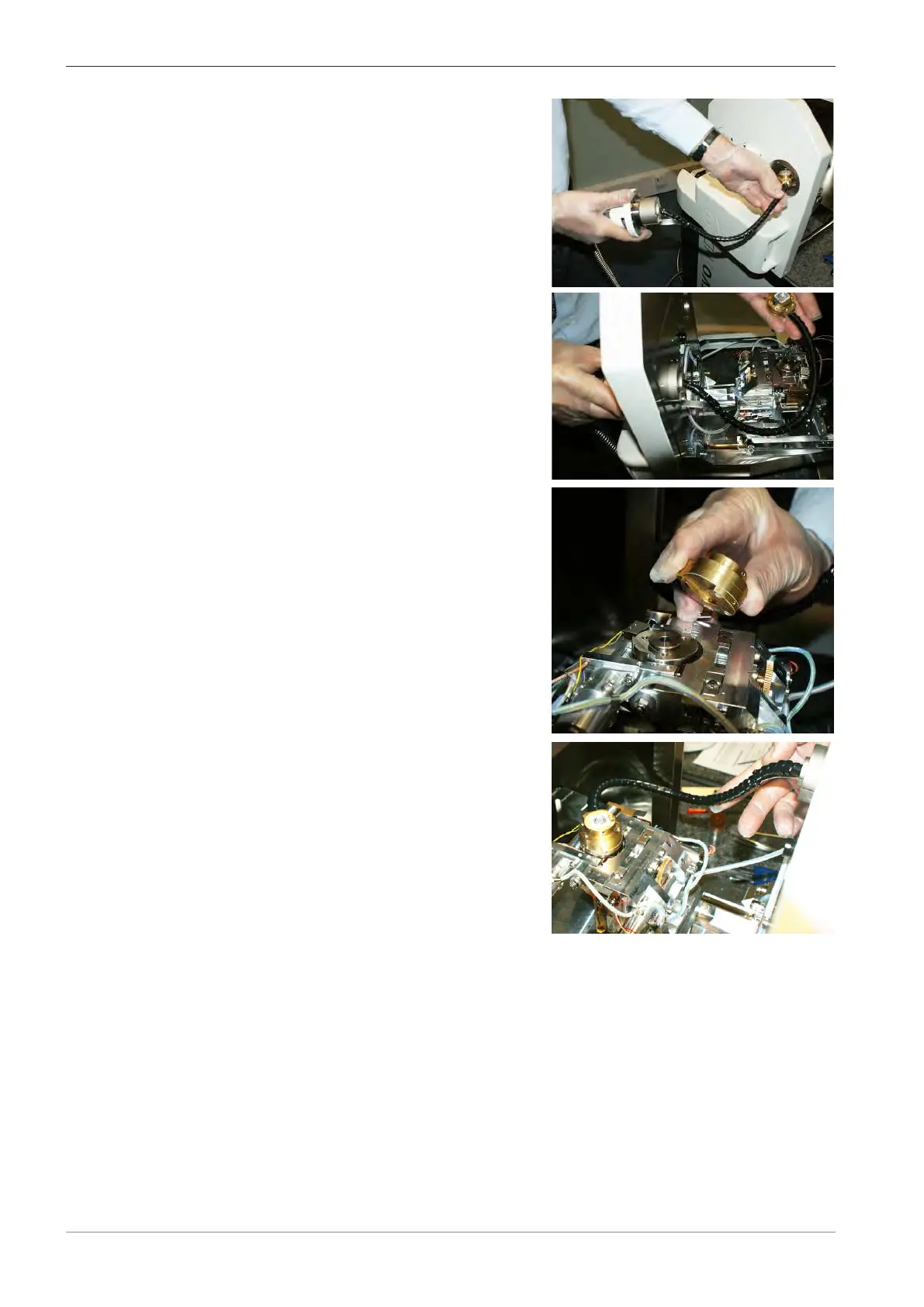

3. Feed the Peltier-coolstage holder through the
hole in the chamber door and carefully rest it
with its pipe work on the stage.
4. Attach the Peltier head to the stage via the
dovetail fitting used for all other specimen
holder types.
5. To ensure the Peltier cable is not too bent,
twisted, or strained, adjust the stage via stage
rotation to a suitable position.
102 Instruction Manual ZEISS EVO | en-US | Rev. 10 | 354706-0780-006
