ZEISS 5 First Operating Steps | 5.7 Working with Specific Specimen Types
5.7.3.2 Mounting the Peltier Coolstage
Parts and Tools
 Hex key, 1.5 mm (000000-0151-883)
 Hex Key, 2.5 mm
 Hex Key, 3.0 mm
 Stub tool

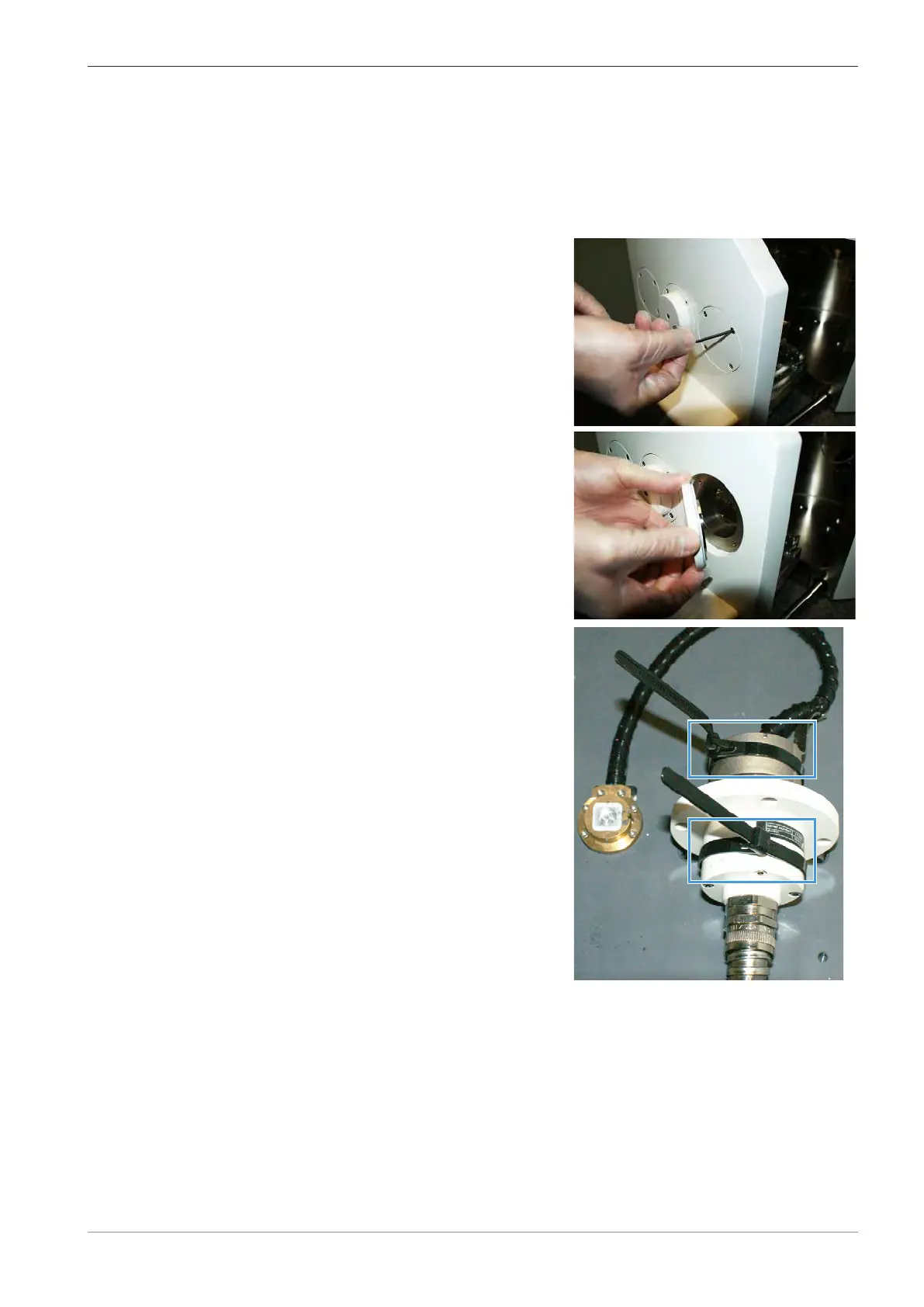

Procedure
1. Use a hex key 3mm to remove the round right
hand blanking plate from the chamber door.
2. To detach the Peltier-coolstage assembly from
its holder plate, undo the cable ties.
