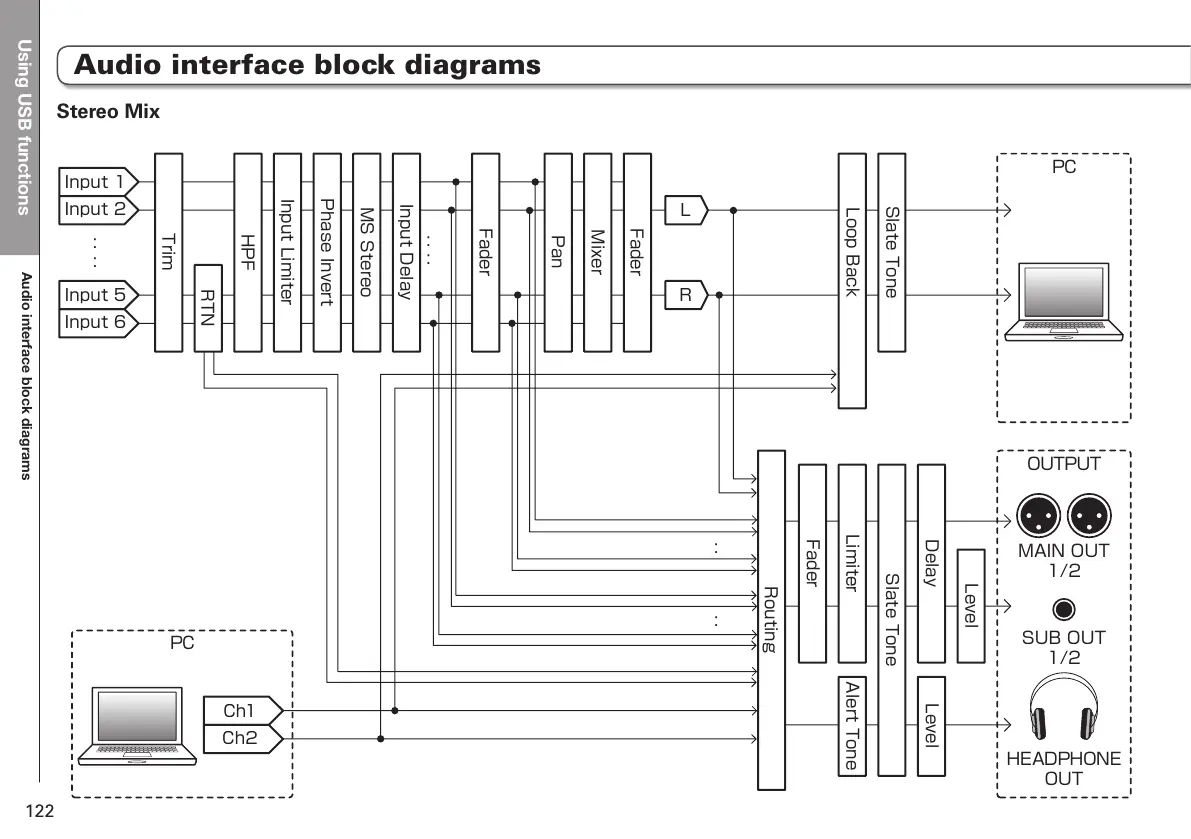

Audio interface block diagrams
122
Audio interface block diagrams
MAINOUT
1/2
SUBOUT
1/2
HEADPHONE
OUT
PC
OUTPUT
PC
:
:
Trim
HPF
InputLimiter
PhaseInvert
MSStereo
InputDelay
Pan
Fader
Mixer
Fader
L
R
Delay Level
SlateTone
Limiter
Fader
AlertTone
SlateTone
LoopBack
Routing
:
:
:
:
Level
Ch1
Ch2
Input1
Input2
Input5
Input6
RTN
Stereo Mix

Zoom F4 Specifications

General

Number of Inputs	6
Recording Formats	WAV, MP3
Max Sampling Rate	192 kHz
Bit Depth	16/24-bit
Timecode	Yes
Built-In Microphone	No
Memory Card Support	SD/SDHC/SDXC (Up to 512 GB)
Max Input Level	+24 dBu
Media	SD, SDHC, SDXC
Phantom Power	+48V
USB	USB 2.0
Power Source	AA batteries
Weight	2.27 lbs (1.03 kg)
Headphone Output	1/4" Stereo
Number of Channels	8
