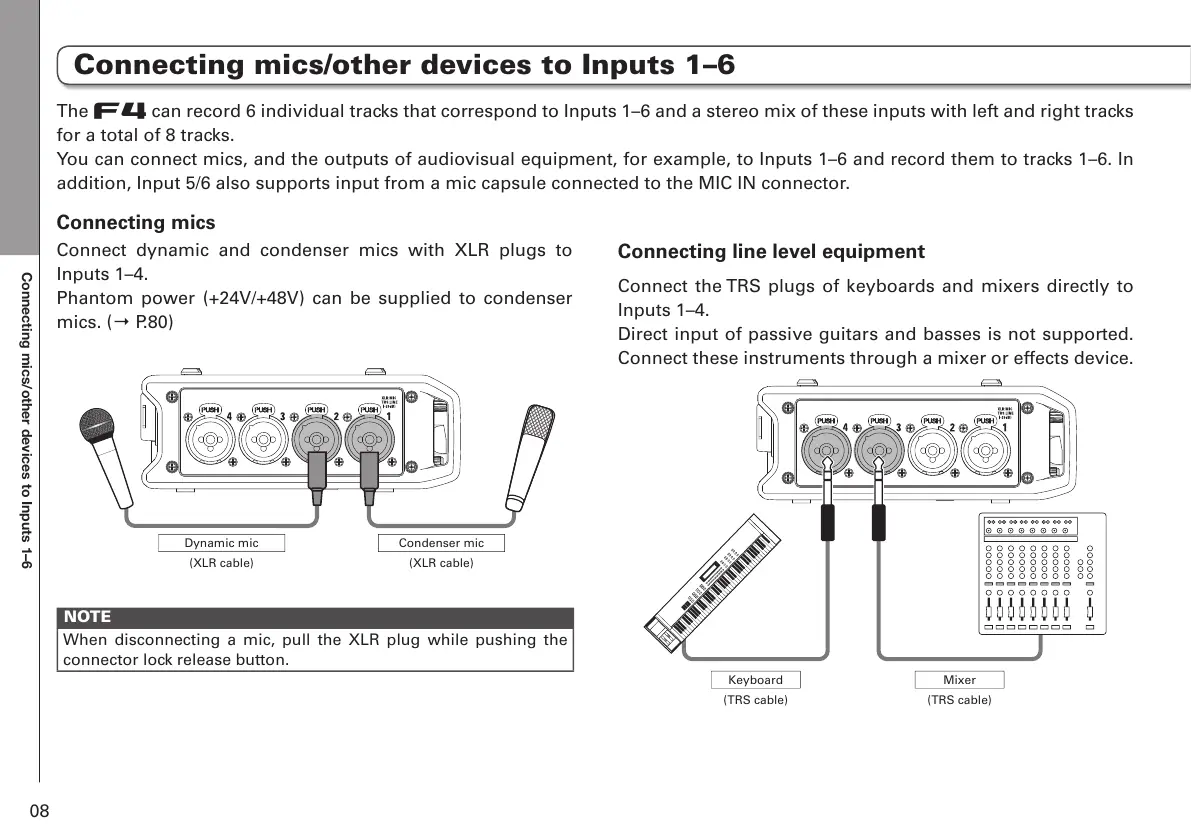

Connecting mics/other devices to Inputs 1–6

Connect dynamic and condenser mics with XLR plugs to

Inputs 1–4.

Phantom power (+24V/+48V) can be supplied to condenser

mics. (→ P.80)

Dynamic mic

(XLR cable)

Condenser mic

(XLR cable)

NOTE

When disconnecting a mic, pull the XLR plug while pushing the

connector lock release button.

Connecting line level equipment

Connect the TRS plugs of keyboards and mixers directly to

Inputs 1–4.

Direct input of passive guitars and basses is not supported.

Connect these instruments through a mixer or effects device.

(TRS cable)

Keyboard

(TRS cable)

Mixer

The F can record 6 individual tracks that correspond to Inputs 1–6 and a stereo mix of these inputs with left and right tracks

for a total of 8 tracks.

You can connect mics, and the outputs of audiovisual equipment, for example, to Inputs 1–6 and record them to tracks 1–6. In

addition, Input 5/6 also supports input from a mic capsule connected to the MIC IN connector.

Connecting mics
