Zoom F4 User Manual

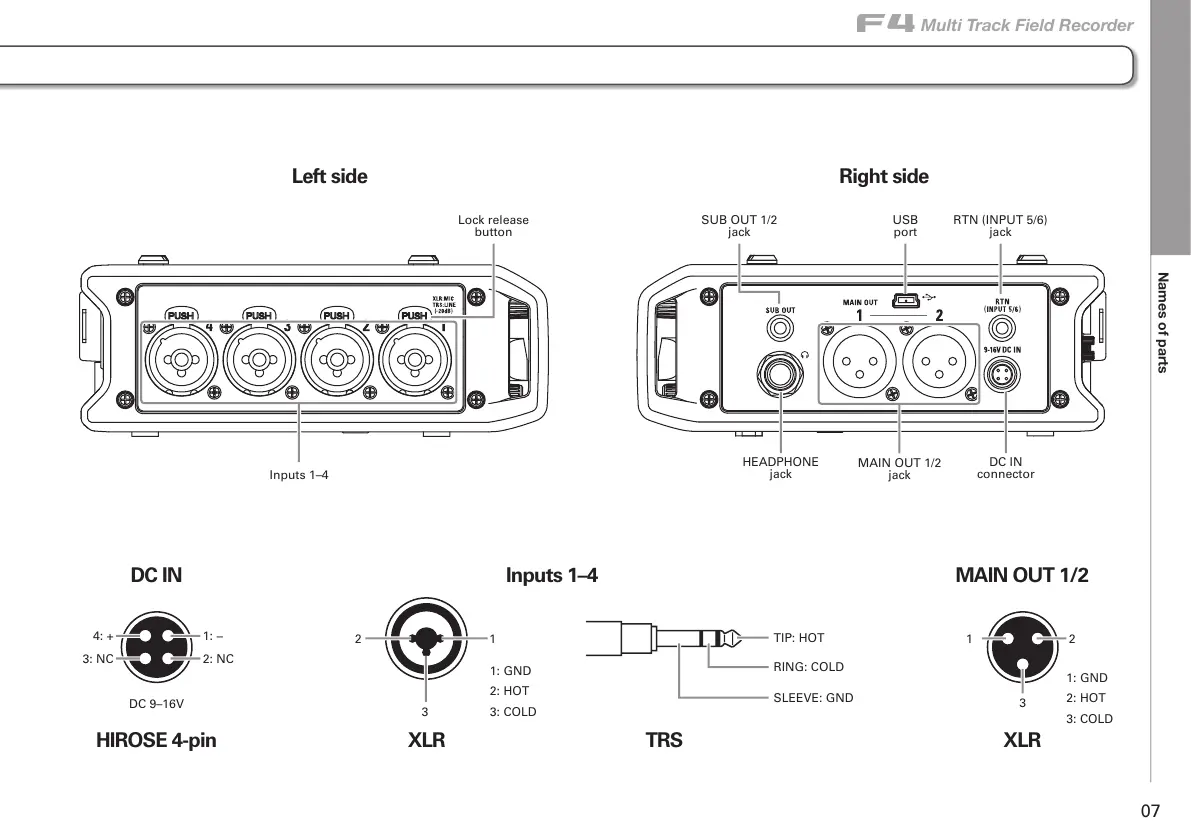

Names of parts
F
Multi Track Field Recorder
07
Left side
Inputs 1–4DC IN MAIN OUT 1/2
XLR XLRTRS
Right side
1: GND
2: HOT
3: COLD
1: GND
2: HOT
3: COLD
DC 9–16V
HIROSE 4-pin
TIP: HOT
RING: COLD
SLEEVE: GND
SUB OUT 1/2
jack
USB
port
RTN (INPUT 5/6)
jack
MAIN OUT 1/2
jack
Inputs 1–4
Lock release
button
DC IN
connector
HEADPHONE
jack
12
1: −4: +
2: NC3: NC
21
3
3

Zoom F4 Specifications

General

Number of Inputs	6
Recording Formats	WAV, MP3
Max Sampling Rate	192 kHz
Bit Depth	16/24-bit
Timecode	Yes
Built-In Microphone	No
Memory Card Support	SD/SDHC/SDXC (Up to 512 GB)
Max Input Level	+24 dBu
Media	SD, SDHC, SDXC
Phantom Power	+48V
USB	USB 2.0
Power Source	AA batteries
Weight	2.27 lbs (1.03 kg)
Headphone Output	1/4" Stereo
Number of Channels	8
