Input settings
4VUP[VYPUN[OLPUW\[ZPNUHSZVMZWLJPÄLK[YHJRZ7-3:636
72

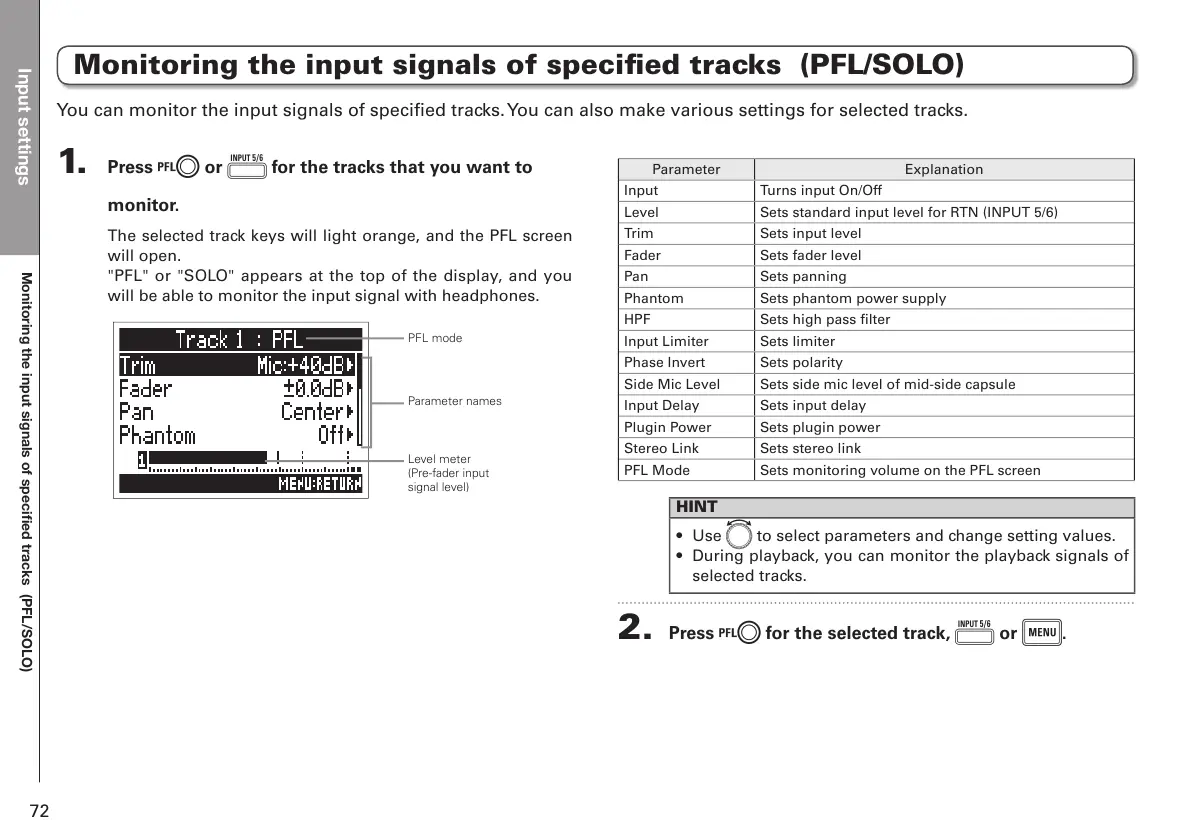

Monitoring the input signals of specified tracks (PFL/SOLO)
1. Press l or i for the tracks that you want to
monitor.
The selected track keys will light orange, and the PFL screen
will open.
"PFL" or "SOLO" appears at the top of the display, and you
will be able to monitor the input signal with headphones.
PFL mode
Level meter
(Pre-fader input
signal level)
Parameter names
Parameter Explanation
Input Turns input On/Off
Level Sets standard input level for RTN (INPUT 5/6)
Trim Sets input level
Fader Sets fader level
Pan Sets panning
Phantom Sets phantom power supply
HPF Sets high pass filter
Input Limiter Sets limiter
Phase Invert Sets polarity
Side Mic Level Sets side mic level of mid-side capsule
Input Delay Sets input delay
Plugin Power Sets plugin power
Stereo Link Sets stereo link
PFL Mode Sets monitoring volume on the PFL screen
HINT
Use
e
to select parameters and change setting values.
During playback, you can monitor the playback signals of
selected tracks.
2. Press l for the selected track, i or m.
You can monitor the input signals of specified tracks. You can also make various settings for selected tracks.
