Appendix
:WLJPÄJH[PVUZ
F
Multi Track Field Recorder
157

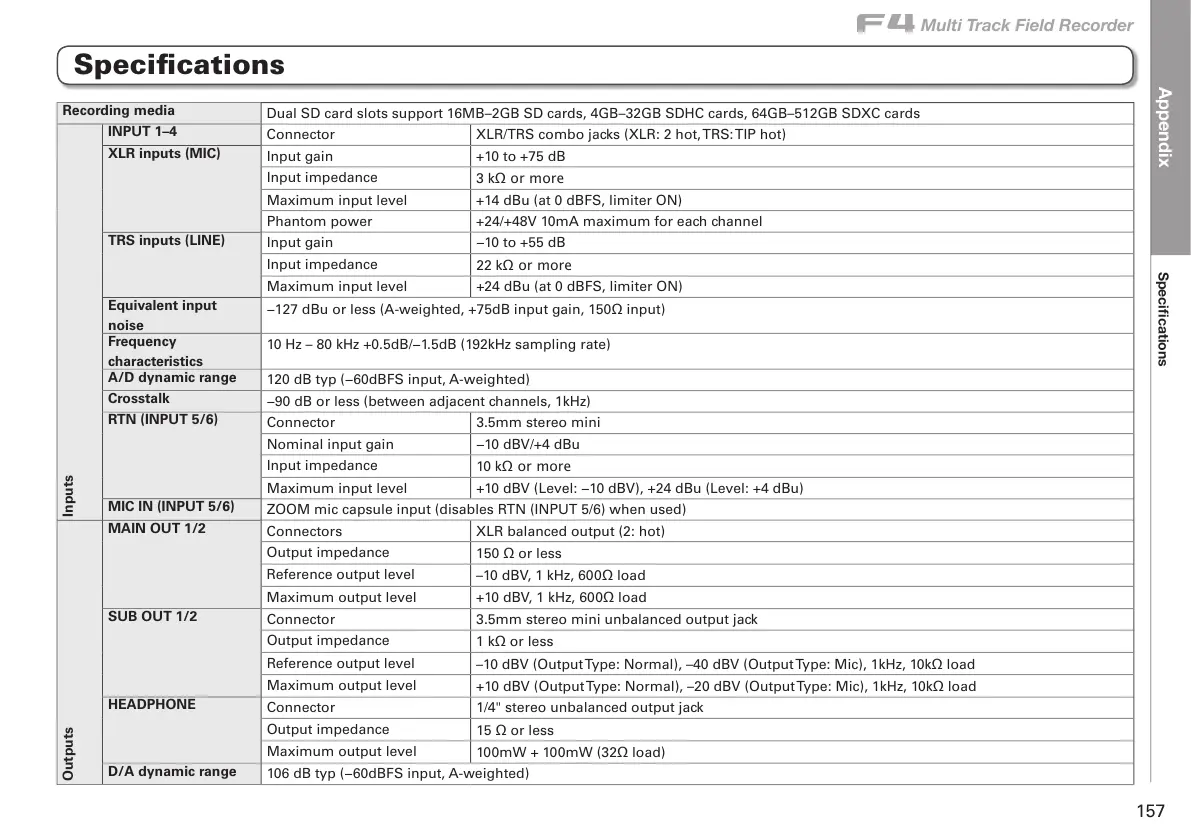

Specifications
Recording media
Dual SD card slots support 16MB–2GB SD cards, 4GB–32GB SDHC cards, 64GB–512GB SDXC cards
Inputs
INPUT 1–4
Connector XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
XLR inputs (MIC)
Input gain +10 to +75 dB
Input impedance
3 kΩ or more
Maximum input level +14 dBu (at 0 dBFS, limiter ON)
Phantom power +24/+48V 10mA maximum for each channel
TRS inputs (LINE)
Input gain −10 to +55 dB
Input impedance
22 kΩ or more
Maximum input level +24 dBu (at 0 dBFS, limiter ON)
Equivalent input
noise
−127 dBu or less (A-weighted, +75dB input gain, 150Ω input)
Frequency
characteristics
10 Hz – 80 kHz +0.5dB/−1.5dB (192kHz sampling rate)
A/D dynamic range
120 dB typ (−60dBFS input, A-weighted)
Crosstalk
−90 dB or less (between adjacent channels, 1kHz)
RTN (INPUT 5/6)
Connector 3.5mm stereo mini
Nominal input gain −10 dBV/+4 dBu
Input impedance
10 kΩ or more
Maximum input level +10 dBV (Level: −10 dBV), +24 dBu (Level: +4 dBu)
MIC IN (INPUT 5/6)
ZOOM mic capsule input (disables RTN (INPUT 5/6) when used)
Outputs
MAIN OUT 1/2
Connectors XLR balanced output (2: hot)
Output impedance
150 Ω or less
Reference output level
–10 dBV, 1 kHz, 600Ω load
Maximum output level
+10 dBV, 1 kHz, 600Ω load
SUB OUT 1/2
Connector 3.5mm stereo mini unbalanced output jack
Output impedance
1 kΩ or less
Reference output level
–10 dBV (Output Type: Normal), –40 dBV (Output Type: Mic), 1kHz, 10kΩ load
Maximum output level
+10 dBV (Output Type: Normal), –20 dBV (Output Type: Mic), 1kHz, 10kΩ load
HEADPHONE
Connector 1/4" stereo unbalanced output jack
Output impedance
15 Ω or less
Maximum output level
100mW + 100mW (32Ω load)
D/A dynamic range
106 dB typ (−60dBFS input, A-weighted)
