Zoom F4 User Manual

Appendix
:WLJPÄJH[PVUZ
158

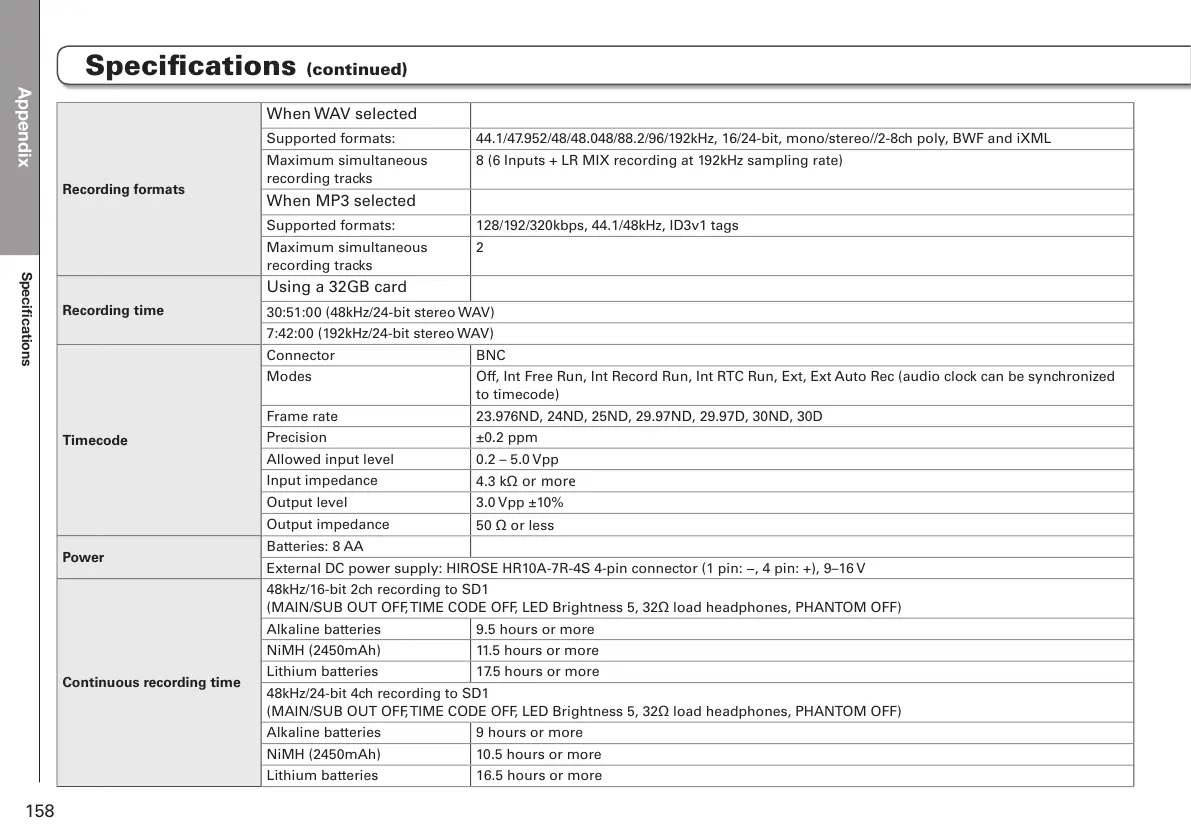

Recording formats
When WAV selected
Supported formats: 44.1/47.952/48/48.048/88.2/96/192kHz, 16/24-bit, mono/stereo//2-8ch poly, BWF and iXML
Maximum simultaneous
recording tracks
8 (6 Inputs + LR MIX recording at 192kHz sampling rate)
When MP3 selected
Supported formats: 128/192/320kbps, 44.1/48kHz, ID3v1 tags
Maximum simultaneous
recording tracks
2
Recording time
Using a 32GB card
30:51:00 (48kHz/24-bit stereo WAV)
7:42:00 (192kHz/24-bit stereo WAV)
Timecode
Connector BNC
Modes Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized
to timecode)
Frame rate 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
Precision ±0.2 ppm
Allowed input level 0.2 – 5.0 Vpp
Input impedance
4.3 kΩ or more
Output level 3.0 Vpp ±10%
Output impedance
50 Ω or less
Power
Batteries: 8 AA
External DC power supply: HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +), 9–16 V
Continuous recording time
48kHz/16-bit 2ch recording to SD1
(MAIN/SUB OUT OFF, TIME CODE OFF, LED Brightness 5, 32Ω load headphones, PHANTOM OFF)
Alkaline batteries 9.5 hours or more
NiMH (2450mAh) 11.5 hours or more
Lithium batteries 17.5 hours or more
48kHz/24-bit 4ch recording to SD1
(MAIN/SUB OUT OFF, TIME CODE OFF, LED Brightness 5, 32Ω load headphones, PHANTOM OFF)
Alkaline batteries 9 hours or more
NiMH (2450mAh) 10.5 hours or more
Lithium batteries 16.5 hours or more
Specifications (continued)

Zoom F4 Specifications

General

Number of Inputs	6
Recording Formats	WAV, MP3
Max Sampling Rate	192 kHz
Bit Depth	16/24-bit
Timecode	Yes
Built-In Microphone	No
Memory Card Support	SD/SDHC/SDXC (Up to 512 GB)
Max Input Level	+24 dBu
Media	SD, SDHC, SDXC
Phantom Power	+48V
USB	USB 2.0
Power Source	AA batteries
Weight	2.27 lbs (1.03 kg)
Headphone Output	1/4" Stereo
Number of Channels	8
