• The Research Software and Hardware classes can both borrow unused bandwidth from the
Research class because the Research Software and Hardware classes both have bandwidth
borrowing enabled.
• The Research Software and Hardware classes can also borrow unused bandwidth from the
Root class because the Research class also has bandwidth borrowing enabled.
25.5 Bandwidth Management Statistics
Click ADVANCED > BW MGMT > Class Setup > Statistics to open the Bandwidth
Management Statistics screen. This screen displays the selected bandwidth class’s bandwidth
usage and allotments.

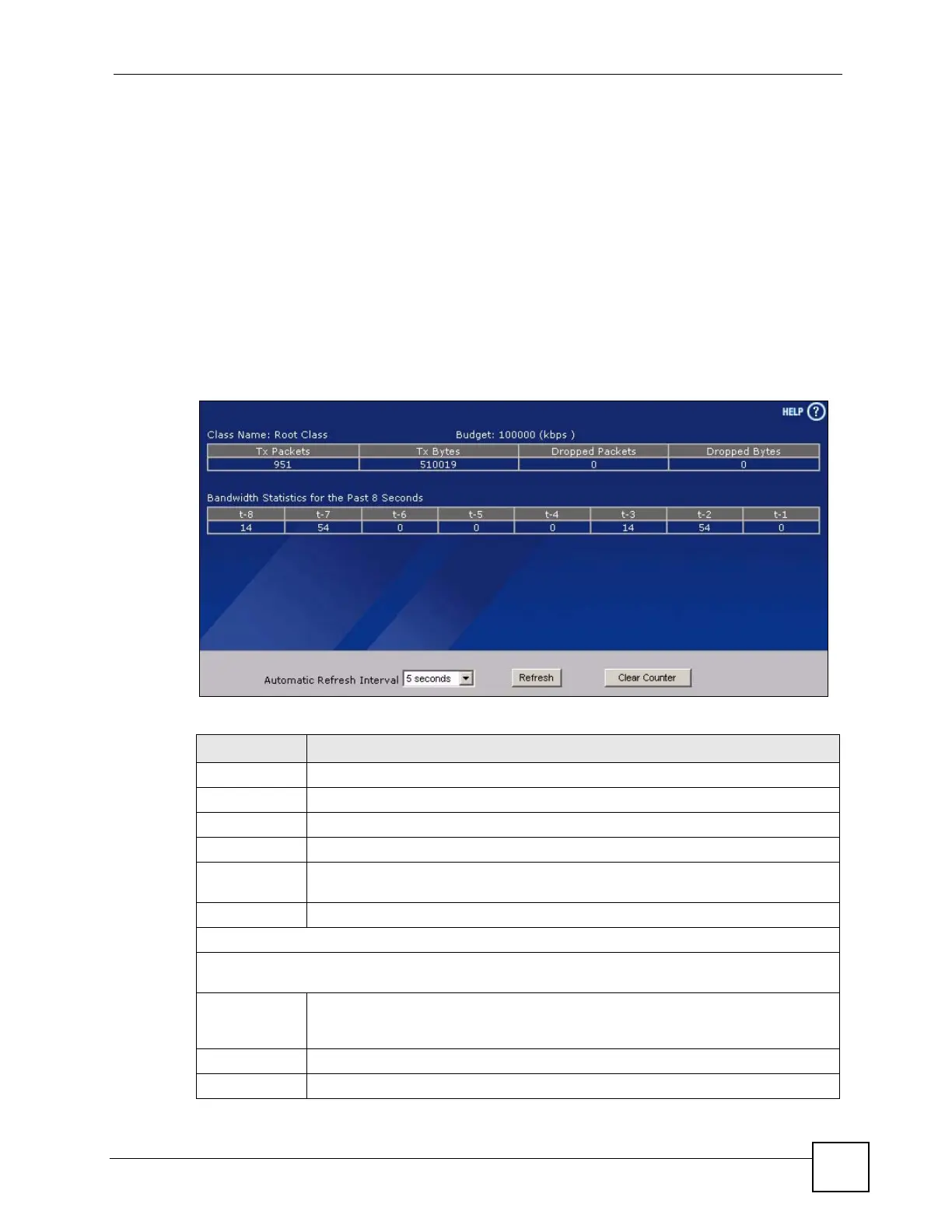

Figure 271 ADVANCED > BW MGMT > Class Setup > Statistics
The following table describes the labels in this screen.
LABEL DESCRIPTION
Class Name This field displays the name of the class the statistics page is showing.
Budget (kbps) This field displays the amount of bandwidth allocated to the class.
Tx Packets This field displays the total number of packets transmitted.
Tx Bytes This field displays the total number of bytes transmitted.
Dropped
Packets
This field displays the total number of packets dropped.
Dropped Bytes This field displays the total number of bytes dropped.
Bandwidth Statistics for the Past 8 Seconds (t-8 to t-1)
This field displays the bandwidth statistics (in bps) for the past one to eight seconds. For example, t-1
means one second ago.
Automatic
Refresh Interval
Select a number of seconds or None from the drop-down list box to update all
screen statistics automatically at the end of every time interval or to not update the
screen statistics.
Refresh Click this button to update the screen’s statistics immediately.
Clear Counter Click Clear Counter to clear all of the bandwidth management statistics.
