25.6 The Monitor Screen
Click ADVANCED > BW MGMT > Monitor to open the following screen. Use this screen
to view the device’s bandwidth usage and allotments.

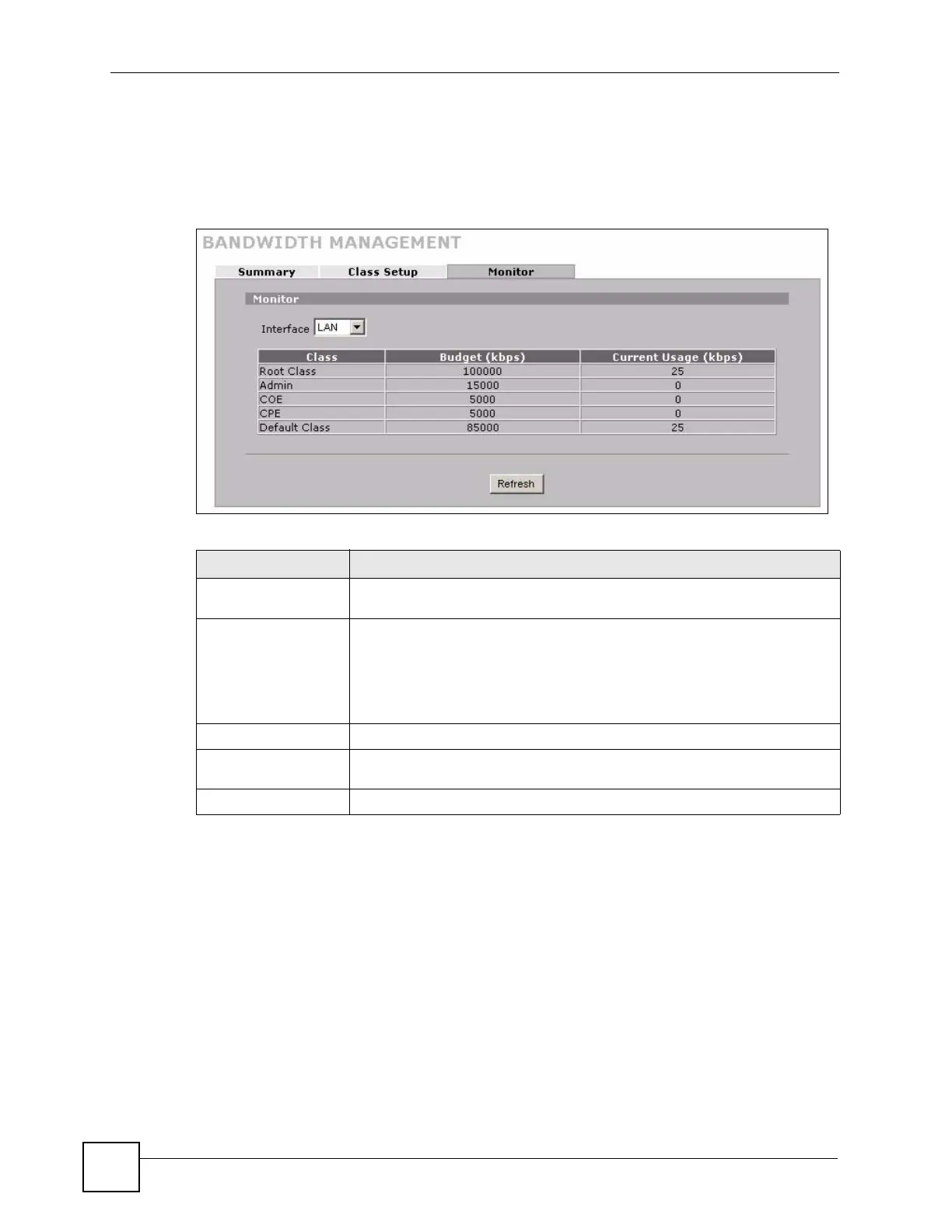

Figure 272 ADVANCED > BW MGMT > Monitor
The following table describes the labels in this screen.
LABEL DESCRIPTION
Interface Select an interface from the drop-down list box to view the bandwidth usage
of its bandwidth classes.
Class This field displays the name of the bandwidth class.
A Default Class automatically displays for all the bandwidth in the Root
Class that is not allocated to bandwidth classes. If you do not enable
maximize bandwidth usage on an interface, the ZyWALL uses the bandwidth
in this default class to send traffic that does not match any of the bandwidth
classes.
A
A.
Budget (kbps) This field displays the amount of bandwidth allocated to the bandwidth class.
Current Usage (kbps) This field displays the amount of bandwidth that each bandwidth class is
using.
Refresh Click Refresh to update the page.
