Chapter 33 Maintenance Screens

ZyWALL 5/35/70 Series User’s Guide

596

1 Do not turn off the ZyWALL while firmware upload is in progress!

After you see the Firmware Upload in Process screen, wait two minutes before logging into

the ZyWALL again.

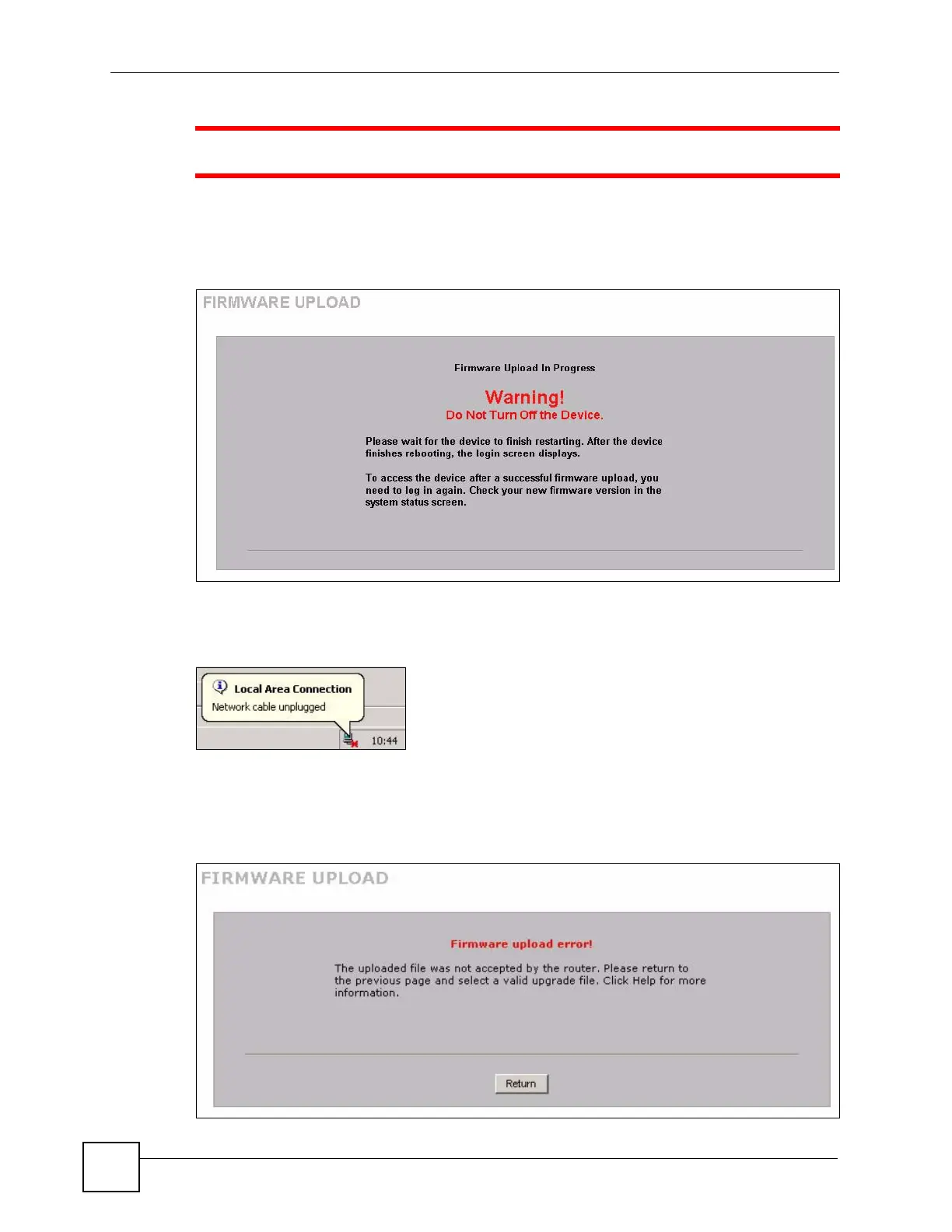

Figure 349 Firmware Upload In Process

The ZyWALL automatically restarts in this time causing a temporary network disconnect. In

some operating systems, you may see the following icon on your desktop.

Figure 350 Network Temporarily Disconnected

After two minutes, log in again and check your new firmware version in the HOME screen.

If the upload was not successful, the following screen will appear. Click Return to go back to

the F/W Upload screen.

Figure 351 Firmware Upload Error
