Chapter 7 Home Networking

VMG8924-B10A and VMG8924-B30A Series User’s Guide

119

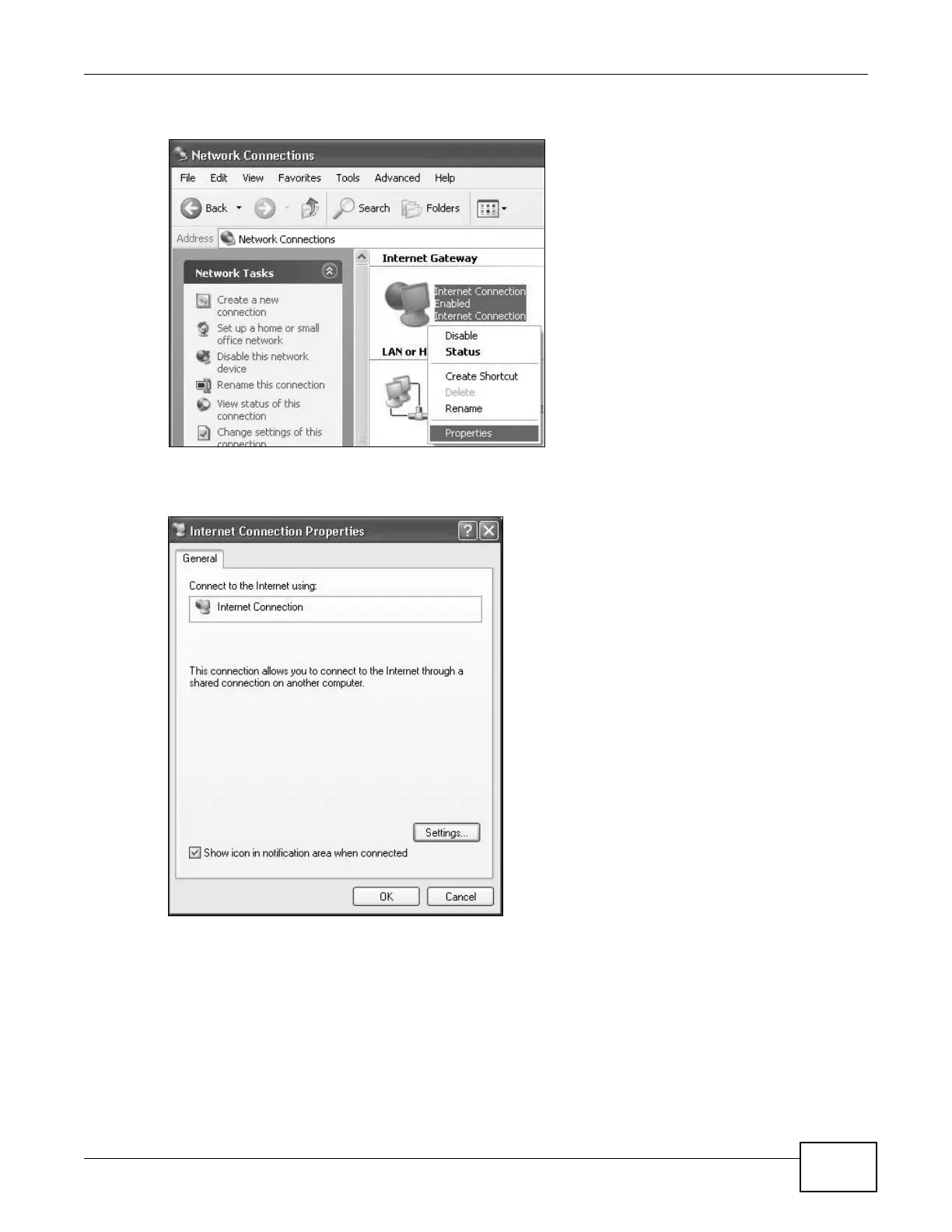

2 Right-click the icon and select Properties.

Network Co nnections

3 In the Internet Connection Properties window, click Settings to see the port mappings there

were automatically created.

Internet Connec tion Propertie s
