VMG8924-B10A and VMG8924-B30A Series User’s Guide 39
CHAPTER 4
Network Map and Status Screens
4.1 Overview
After you log into the Web Configurator, the Network Map screen appears. This shows the network
connection status of the Device and clients connected to it.
You can use the Status screen to look at the current status of the Device, system resources, and
interfaces (LAN, WAN, and WLAN).
4.2 The Network Map Screen
Use this screen to view the network connection status of the device and its clients. A warning
message appears if there is a connection problem.

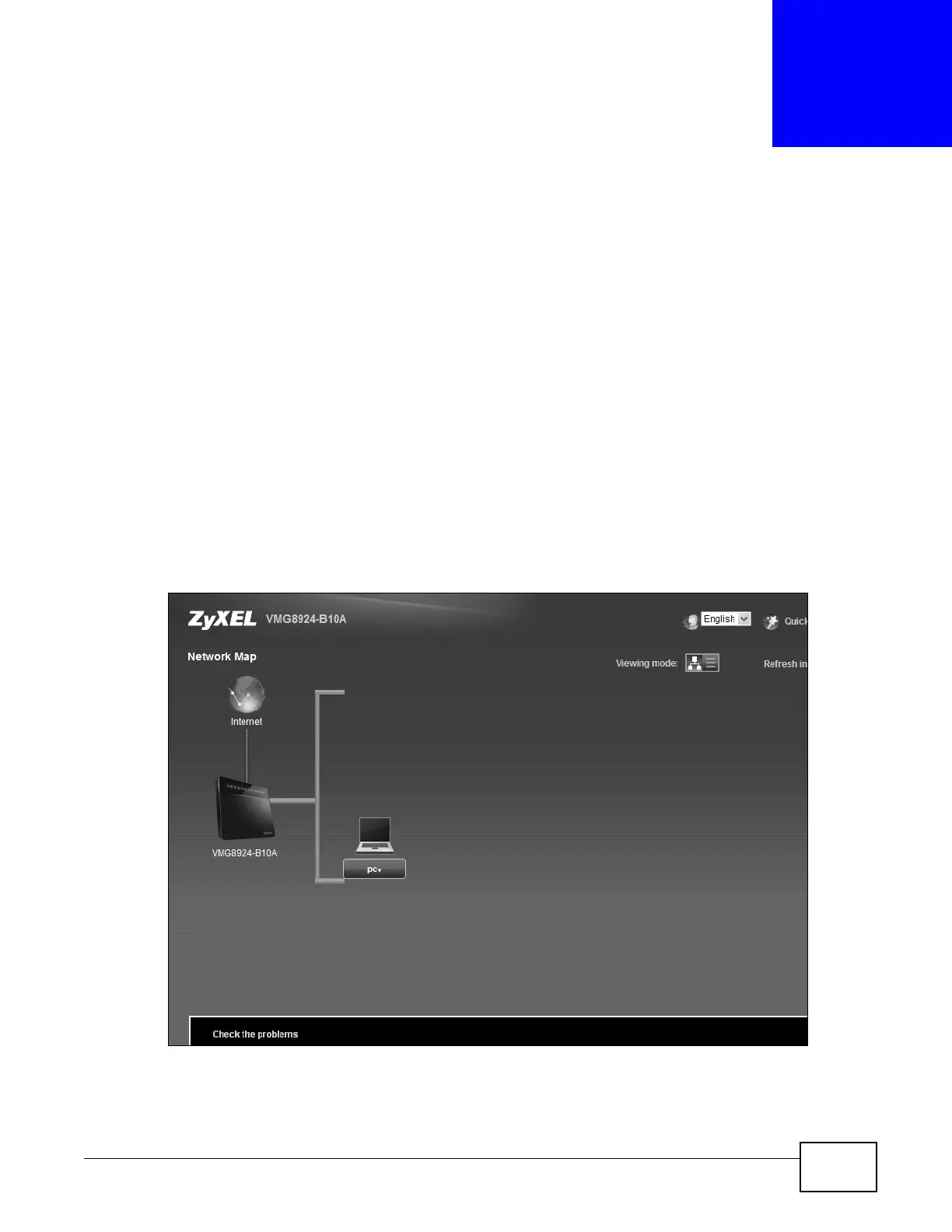

Figure 15 Network Map: Icon View Mode
To Next Page
