Chapter 6 Wireless
VMG8924-B10A and VMG8924-B30A Series User’s Guide
90
The following table describes the labels in this screen.
6.7.1 WDS Scan
You can click the Scan icon in Wireless > WDS to have the Device automatically search and
display the available APs within range. Select an AP and click Apply to have the Device establish a
wireless link with the selected wireless device.

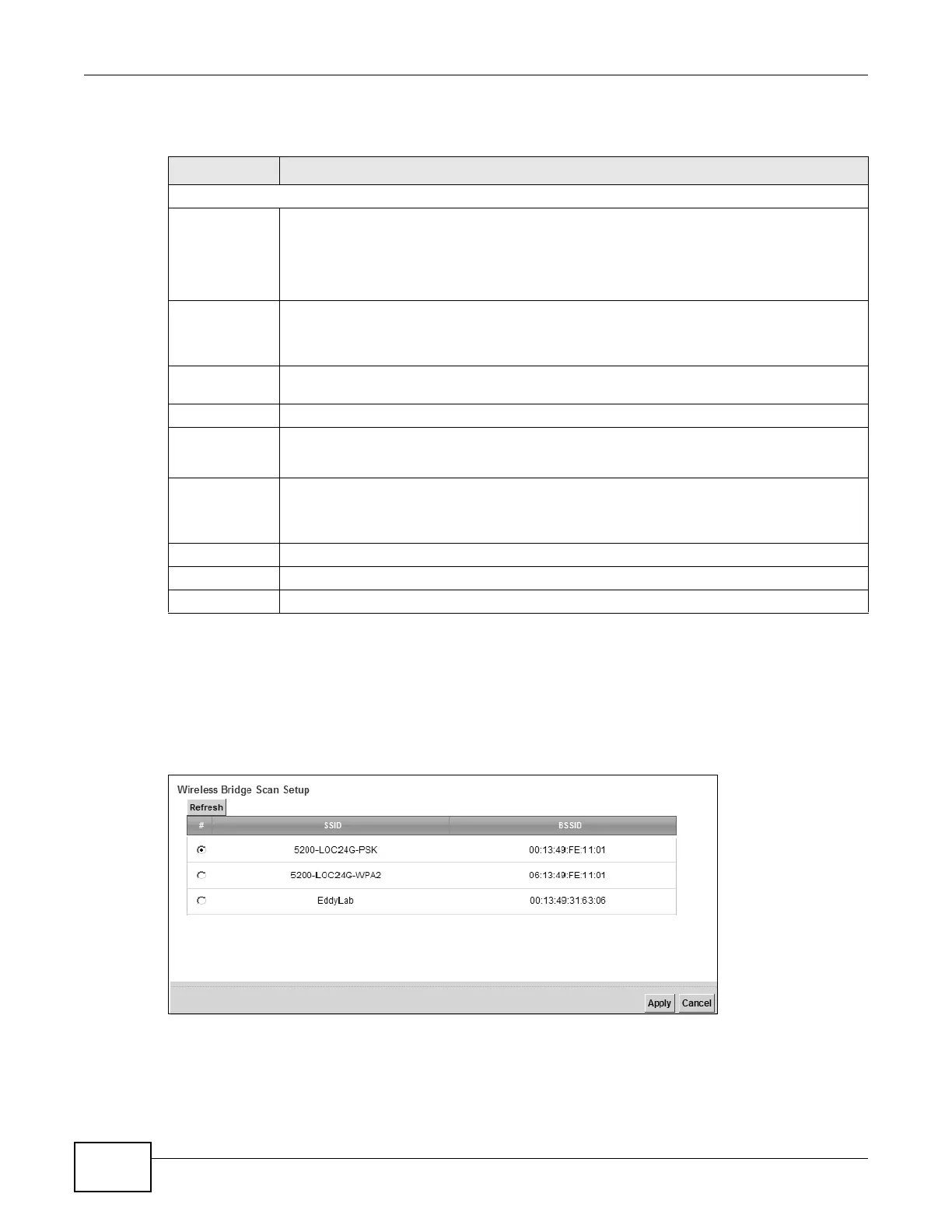

Figure 44 WDS: Scan
Table 25 Network Setting > Wireless > WDS
LABEL DESCRIPTION
Wireless Bridge Setup
AP Mode Select the operating mode for your Device.
• Access Point - The Device functions as a bridge and access point simultaneously.
• Wireless Bridge - The Device acts as a wireless network bridge and establishes
wireless links with other APs. In this mode, clients cannot connect to the Device
wirelessly.
Bridge Restrict This field is available only when you set operating mode to Access Point.
Select Enabled to turn on WDS and enter the peer device’s MAC address manually in the
table below. Select Disable to turn off WDS.
Remote Bridge
MAC Address
You can enter the MAC address of the peer device by clicking the Edit icon under Modify.
# This is the index number of the entry.
MAC Address This shows the MAC address of the peer device.
You can connect to up to 4 peer devices.
Modify Click the Edit icon and type the MAC address of the peer device in a valid MAC address
format (six hexadecimal character pairs, for example 12:34:56:78:9a:bc).
Click the Delete icon to remove this entry.
Scan Click the Scan icon to search and display the available APs within range.
Apply Click Apply to save your changes.
Cancel Click Cancel to restore your previously saved settings.
