Chapter 9 Quality of Service (QoS)

VMG8924-B10A and VMG8924-B30A Series User’s Guide

146

9.5.1 Add/Edit QoS Class

Click Add new Classifier in the Class Setup screen or the Edit icon next to a classifier to open

the following screen.

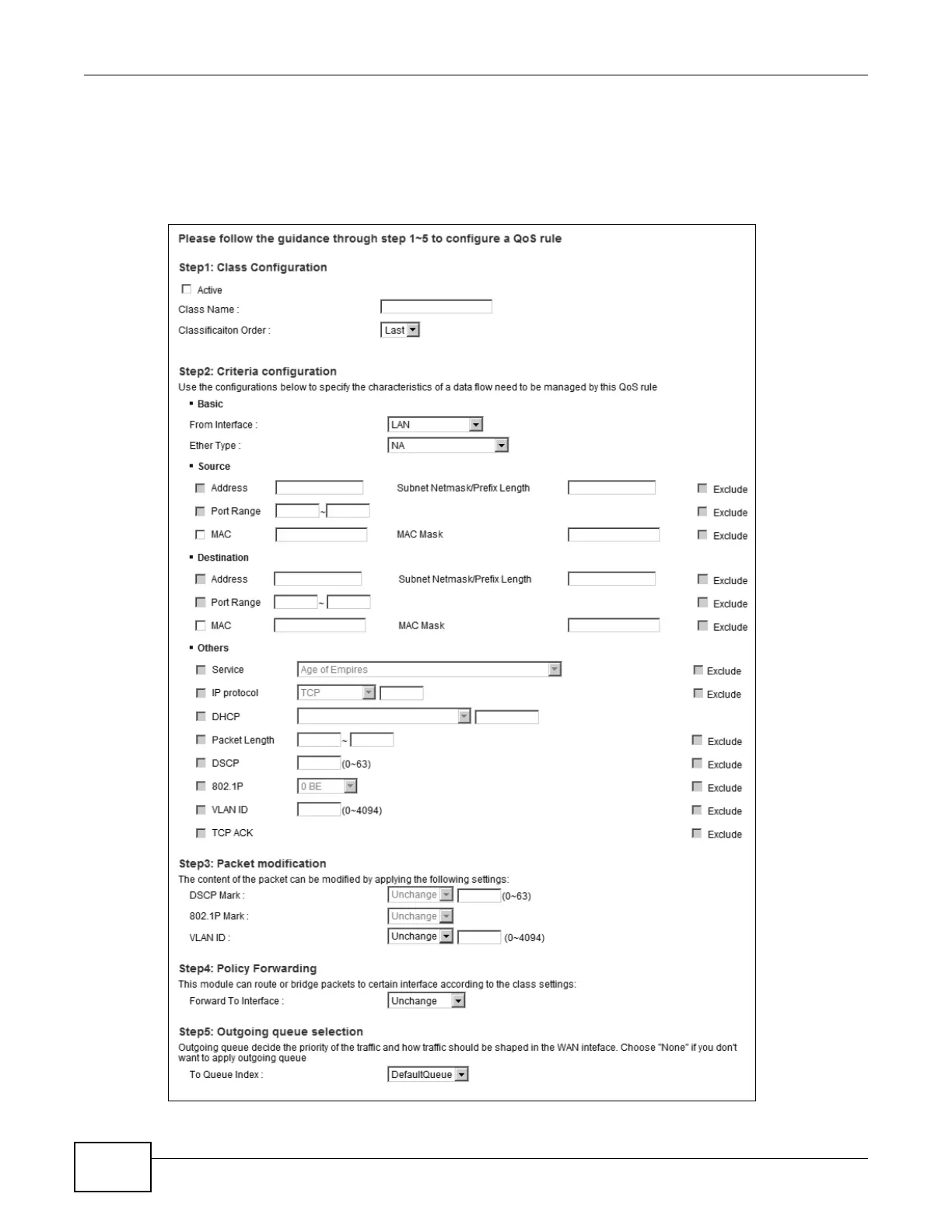

Figure 77 Class Setup: Add/Edit
