Chapter 5 Broadband
VMG8924-B10A and VMG8924-B30A Series User’s Guide
57
If you select ADSL over ATM as the interface type, the following screen appears.

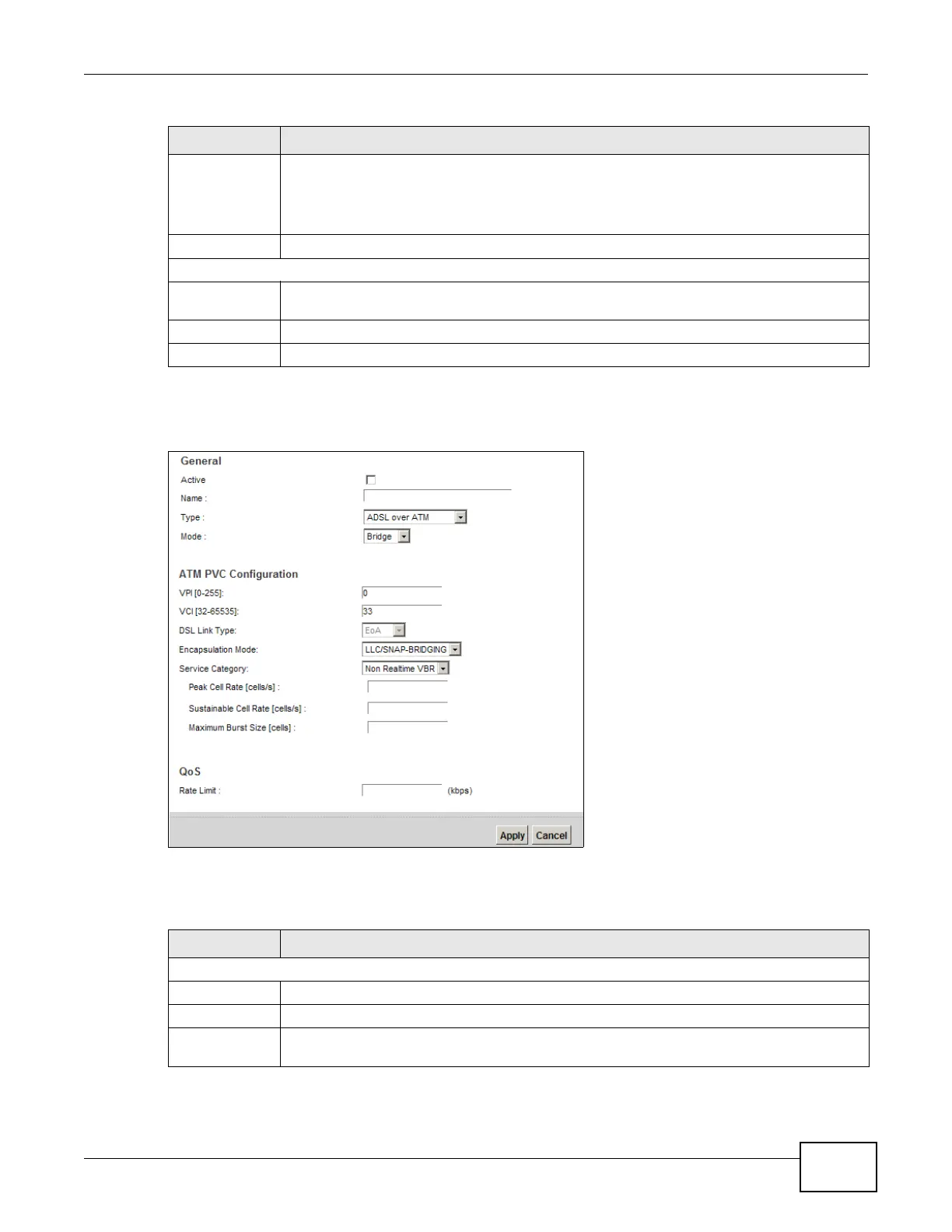

Figure 25 Network Setting > Broadband > Add New WAN Interface/Edit (ADSL over ATM-Bridge
Mode)
The following table describes the fields in this screen.
802.1p IEEE 802.1p defines up to 8 separate traffic types by inserting a tag into a MAC-layer frame
that contains bits to define class of service.
Select the IEEE 802.1p priority level (from 0 to 7) to add to traffic through this connection.
The greater the number, the higher the priority level.
802.1q Type the VLAN ID number (from 0 to 4094) for traffic through this connection.
QoS
Rate Limit Enter the rate limit for the connection. This is the maximum transmission rate allowed for
traffic on this connection.
Apply Click Apply to save your changes.
Cancel Click Cancel to exit this screen without saving.
Table 9 Network Setting > Broadband > Add New WAN Interface/Edit (ADSL over ATM - Bridge
Mode)
LABEL DESCRIPTION
General
Active Select this to activate the WAN configuration settings.
Name Enter a service name of the connection.
Type Select ADSL over ATM as the interface for which you want to configure here. The Device
uses the ADSL technology for data transmission over the DSL port.
Table 8 Network Setting > Broadband > Add New WAN Interface/Edit (Bridge Mode) (continued)
LABEL DESCRIPTION
