3D Systems CUBE User Manual

623D Systems, Inc.

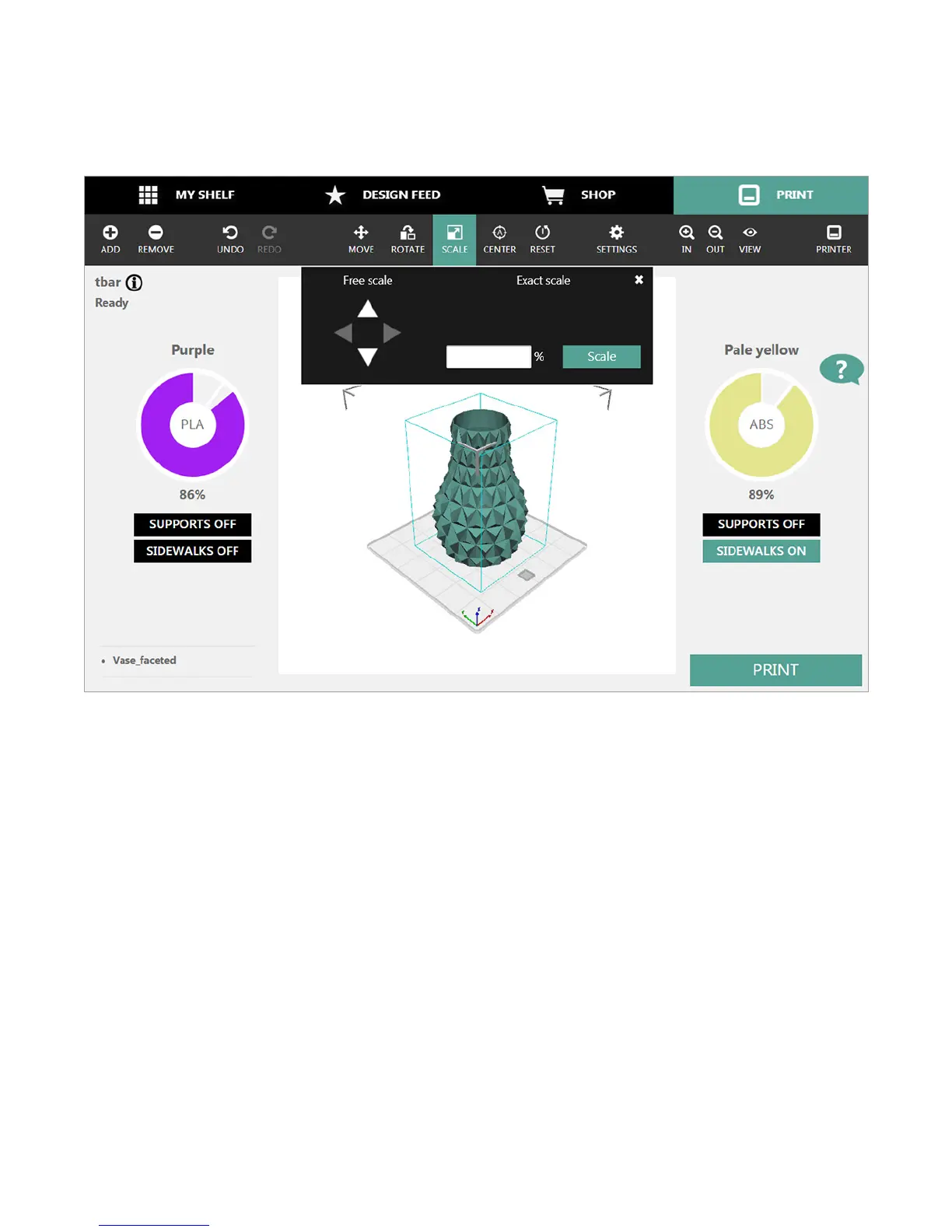

Scale Tool
The Scale tool* provides a way to increase or decrease the size of the model on the print pad. Select the model and select the Scale
tool. For free scale, select the up arrow to increase the size or the down arrow to decrease the size. You can also enter a percentage
value in the Exact Scale eld and select Scale. Entering 50 will reduce the model to half of the current size. Entering 200 will double the
size of the model. The value 100 will have no effect.
When nished, close the Scale tool and select the Scale button to deselect it.
*Not an available feature for mobile applications.

3D Systems CUBE Specifications

General

Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Number of printing colors	16
Maximum build size (WxDxH)	- mm
Plug and Play	Yes
USB version	2.0
Ethernet LAN	No
Card reader integrated	-
Product color	Silver
