3D Systems CUBE User Manual

613D Systems, Inc.

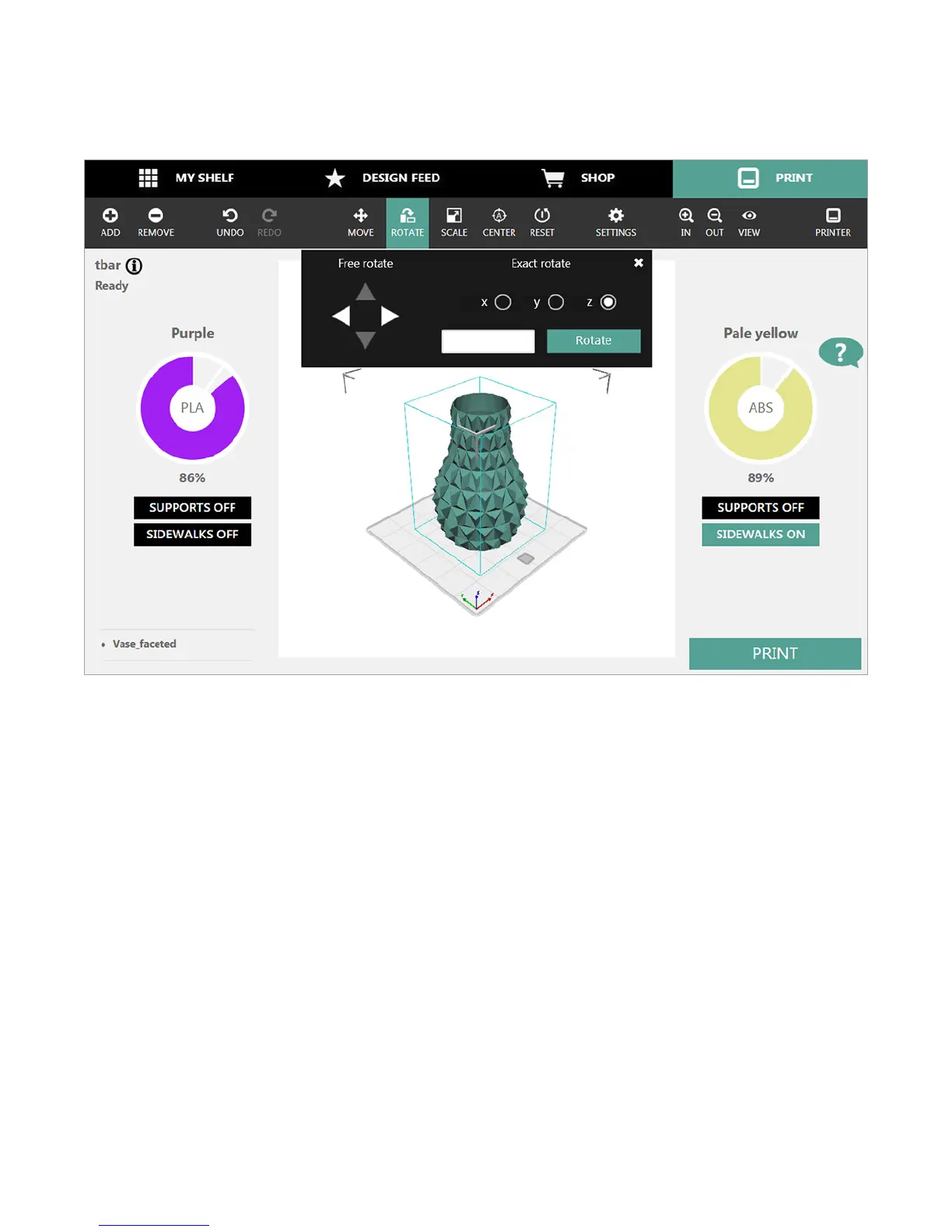

Rotate Tool
To rotate the model on the print pad, select the part and then select the Rotate tool*. To use the Free rotate option, select the X-axis,
Y-axis, or Z-axis and then select either the right or left arrow. You can also rotate the model by selecting an axis and entering a value in
the Exact Rotate eld. Select Rotate to rotate the model to the specied amount.
When nished, close the Rotate tool and select the Rotate button to deselect it.
*Not an available feature for mobile applications.

3D Systems CUBE Specifications

General

Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Number of printing colors	16
Maximum build size (WxDxH)	- mm
Plug and Play	Yes
USB version	2.0
Ethernet LAN	No
Card reader integrated	-
Product color	Silver
