Cross Connections | 147

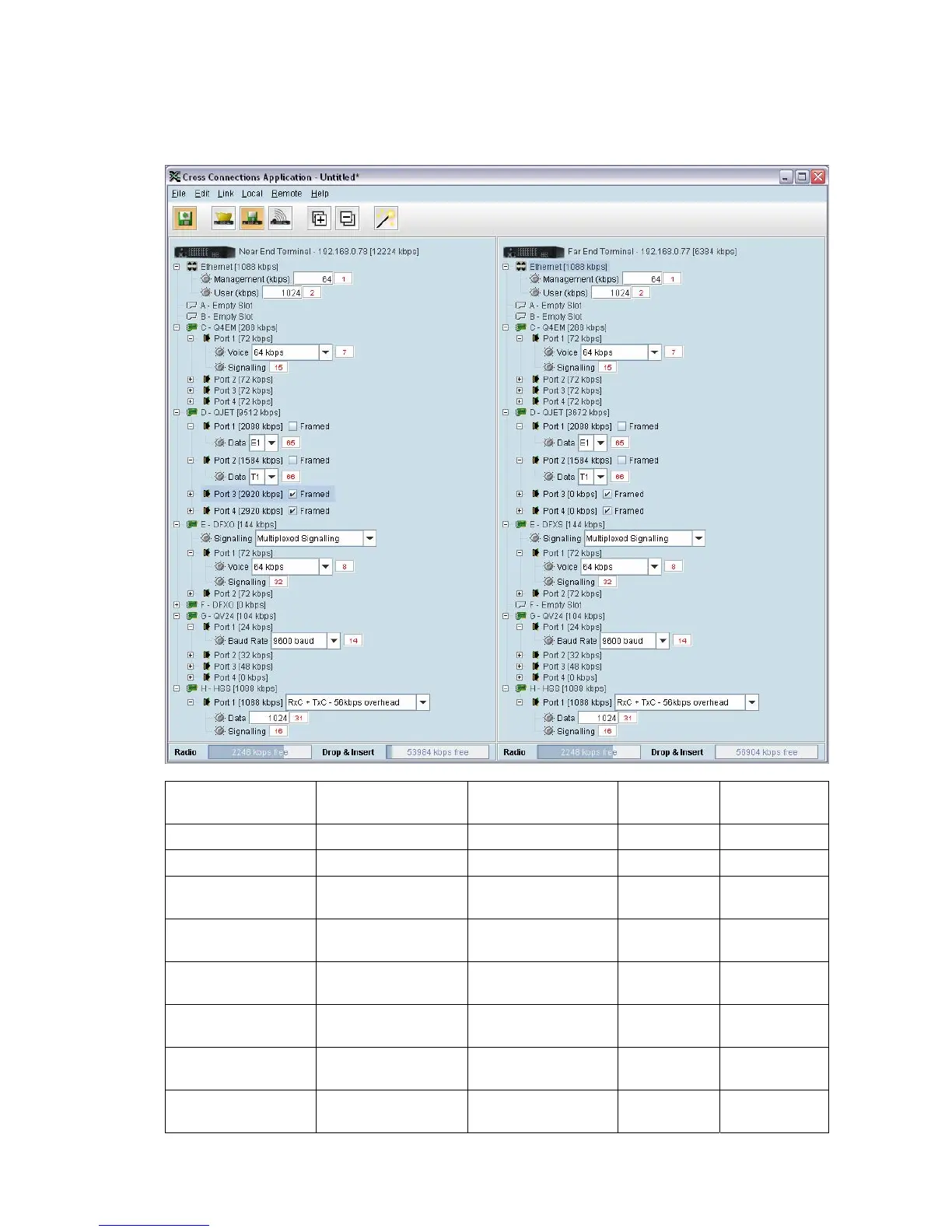

Cross connection example
This is an example of cross connection mapping:
Circuit Local port Remote port Capacity
(kbit/s)
Connection
numbers
Radio management 64 1
User Ethernet 1024 2
3 wire E&M circuit Q4EM port 1
(slot C)
Q4EM port 1
(slot C)
72 7/15
Unframed E1 data QJET port 1
(slot D)
QJET port 1
(slot D)
2088 65
Unframed T1 data QJET port 2
(slot D)
QJET port 2
(slot D)
1584 66
Loop Interface DFXO port 1
(slot E)
DFXS port 1
(slot E)
72 8/32
V.24 data circuit
9600
QV24 port 1
(slot G)
QV24 port 1
(slot G)
24 14
HSS data circuit
1024 kbit/s
HSS port 1
(slot H)
HSS port 1
(slot H)
1088 31/16
