Network IP addressing
Same subnet as local PC

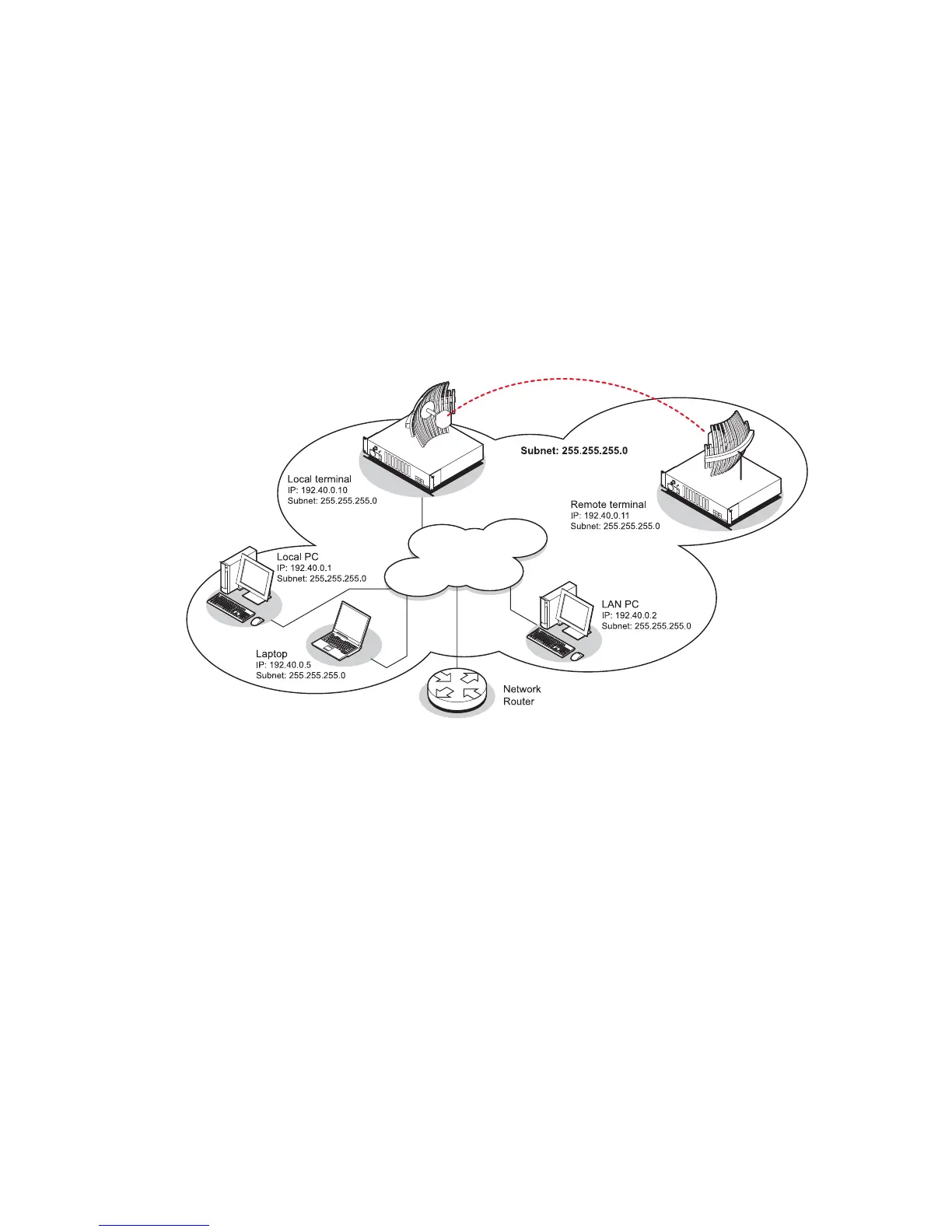

The following diagram shows a link interconnected on the same subnet as the local PC terminal used
for configuration.
In this example, the local PC, as well as the local and remote terminals, are on the same subnet and
therefore have the same subnet mask 255.255.255.0.
This will allow the PC and the terminals to communicate with each other.
