Mounting and installing the terminal | 36

Safety earth

The terminal chassis must have a protection / safety earth connected between the terminal earth stud

and a common protection earth in the rack. The DC power input can be either positive grounded or

negative grounded depending on the power supply system available.

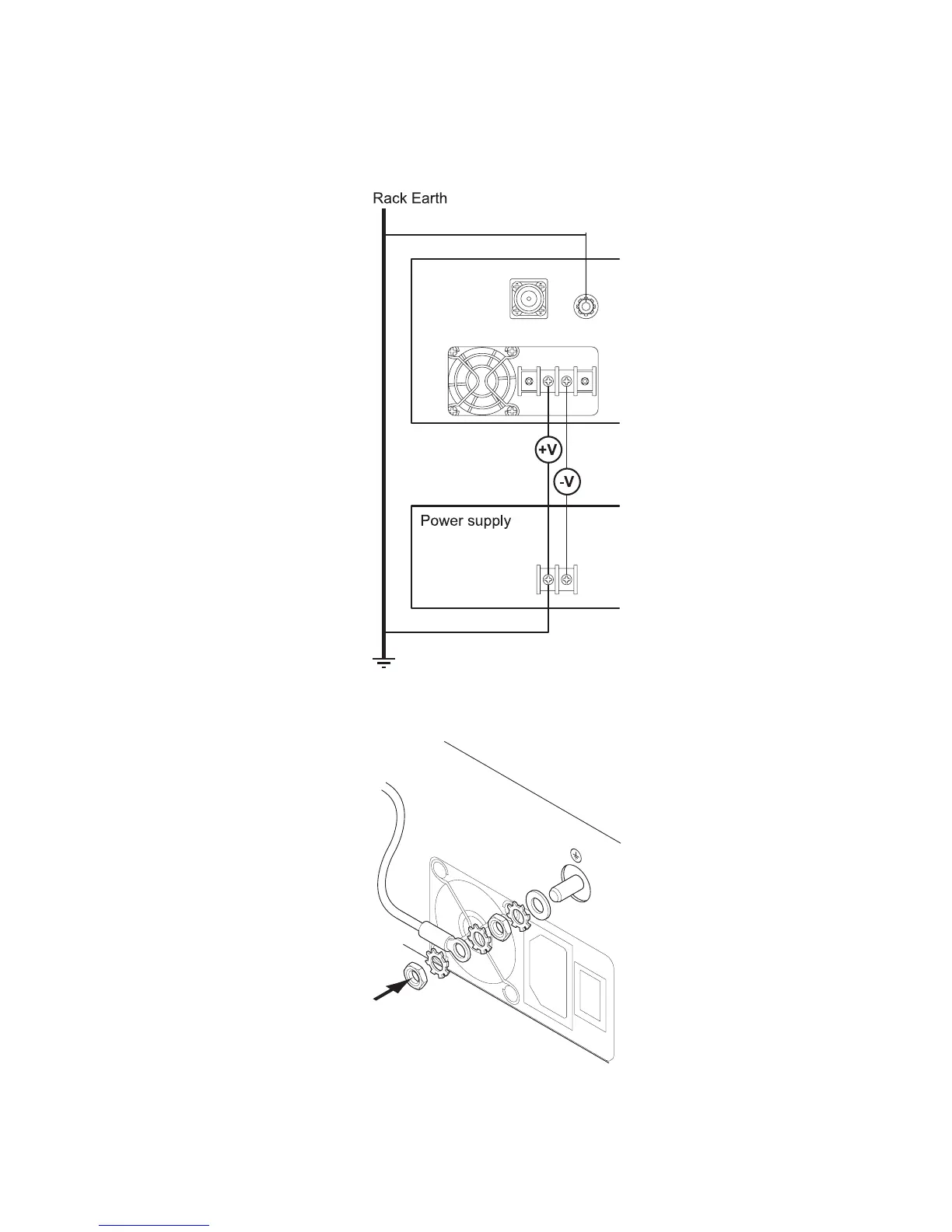

Ground the terminal chassis using the terminal earth stud on the front panel as shown:
