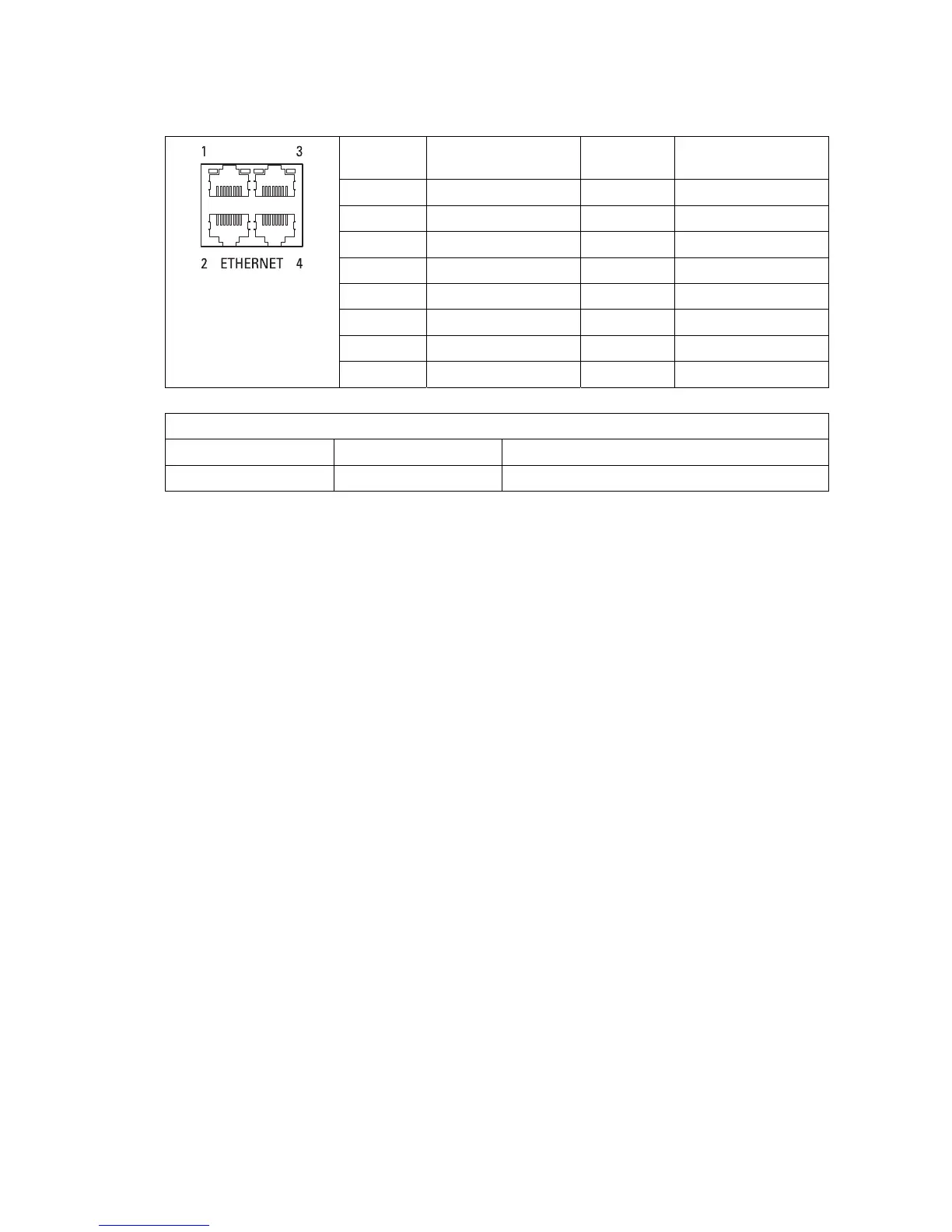

Interface connections | 213
Ethernet interface connections
Pin
number
Pin function Direction TIA-568A wire
colour
1 Transmit Output Green/white
2 Transmit Output Green
3 Receive Input Orange/white
4 Not used Blue
5 Not used Blue/white
6 Receive Input Orange
7 Not used Brown/white
8 Not used Brown
RJ-45 connector LED indicators
LED Status Explanation
Green On Ethernet activity
