Interface connections | 219

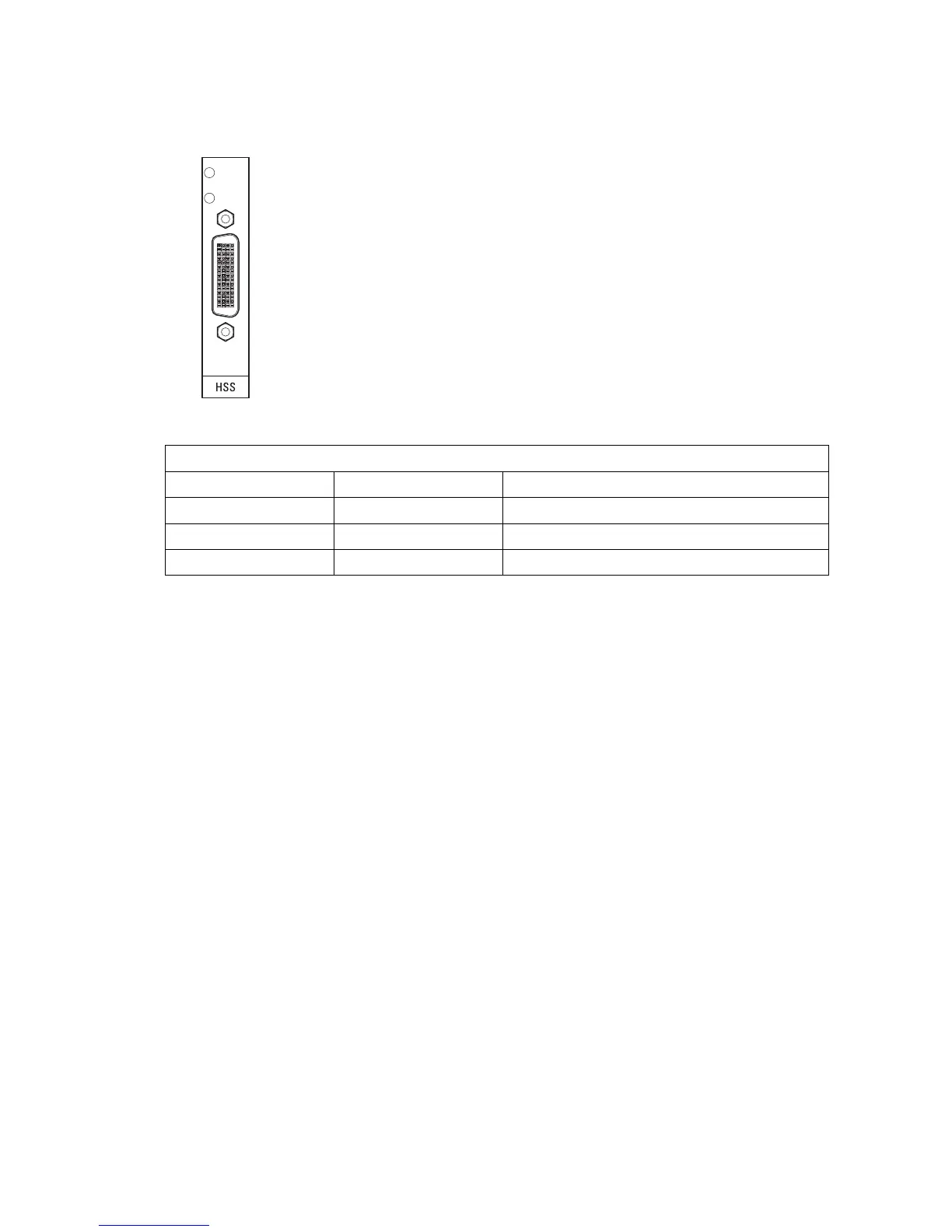

HSS Interface connections
The connector on the high-speed synchronous serial interface is a high density
LFH-60 (as used on standard Cisco WAN port serial interface cables and
equivalents).
The interface specification (X.21 / V.35 etc) is automatically changed by simply
changing the type of interface cable connected to the HSS.
LED indicators
LED Status Explanation
Top green LED On Normal operation
Top green LED Flashing Loopback in place
Lower green LED On Normal operation
