Maintenance | 193

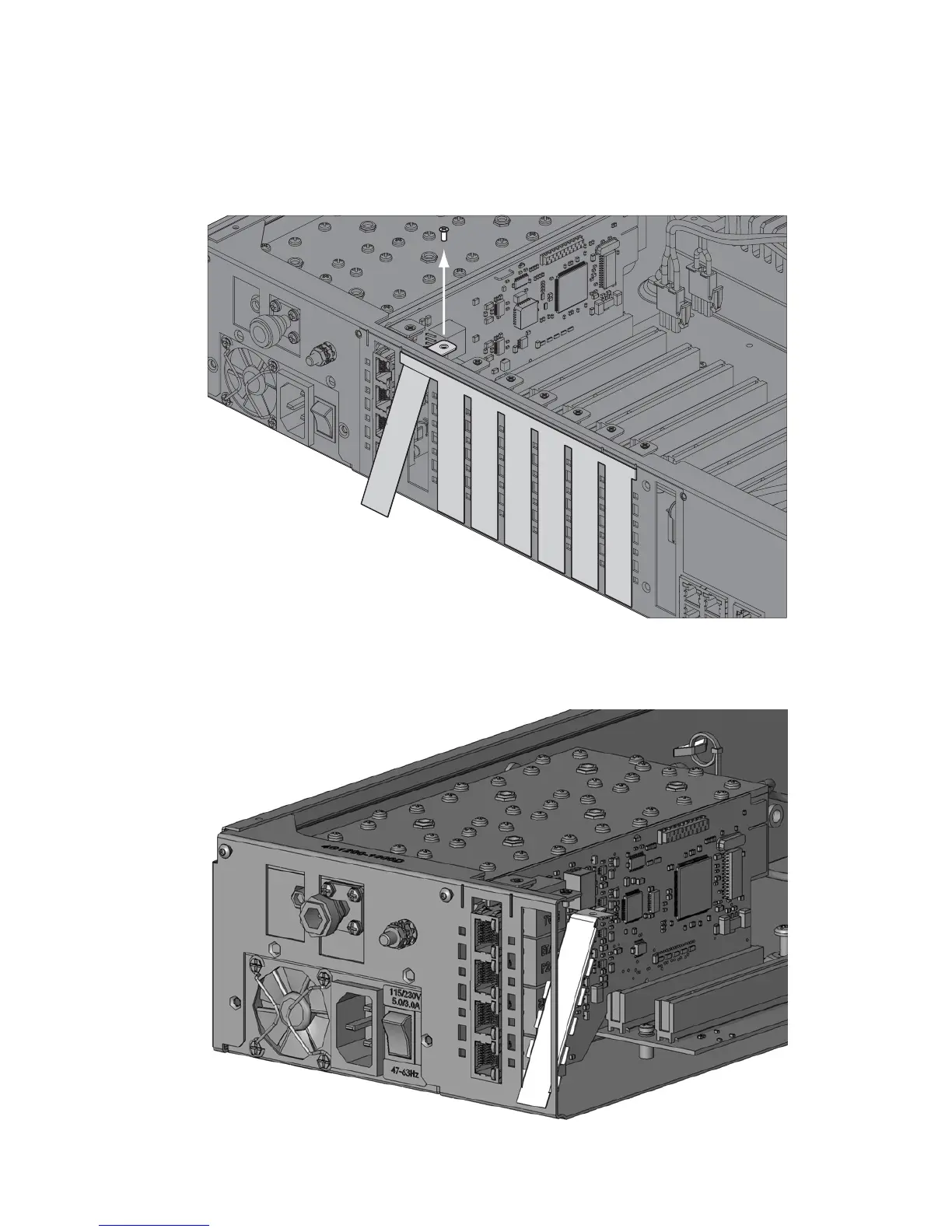

6. Remove the card securing screw from the required interface slot.
7. There are two types of interface slot blanking plates, the seven tab break off and the single slot
type (newer type).
If the blanking plate is the seven tab break off, remove the slot blanking tab by folding the tab to
and fro until it breaks off.
If the blanking plate is the single slot type, unclip the blanking plate from behind the slot (assuming
that the card securing screw has already been removed).
