278 Actual signals and parameters
4015 FBK
MULTIPLIER
Defines an extra multiplier for the value defined by
parameter 4014 FBK SEL. Parameter is used mainly in
applications where feedback value is calculated from
another variable (eg, flow from pressure difference).
0.000
-32.768…
32.767
Multiplier. If parameter value is set to zero, no multiplier is
used.
1 = 0.001
4016 ACT1 INPUT Defines the source for actual value 1 (ACT1). See also
parameter 4018 ACT1 MINIMUM.
AI2
AI1 Uses analog input 1 for ACT1 1
AI2 Uses analog input 2 for ACT1 2
CURRENT Uses current for ACT1 3
TORQUE Uses torque for ACT1 4
POWER Uses power for ACT1 5
COMM ACT 1 Uses value of signal 0158 PID COMM VALUE 1 for ACT1 6
COMM ACT 2 Uses value of signal 0159 PID COMM VALUE 2 for ACT1 7
FREQ INPUT Frequency input 8
4017 ACT2 INPUT Defines the source for actual value ACT2. See also
parameter 4020 ACT2 MINIMUM.
AI2
See parameter 4016 ACT1 INPUT.

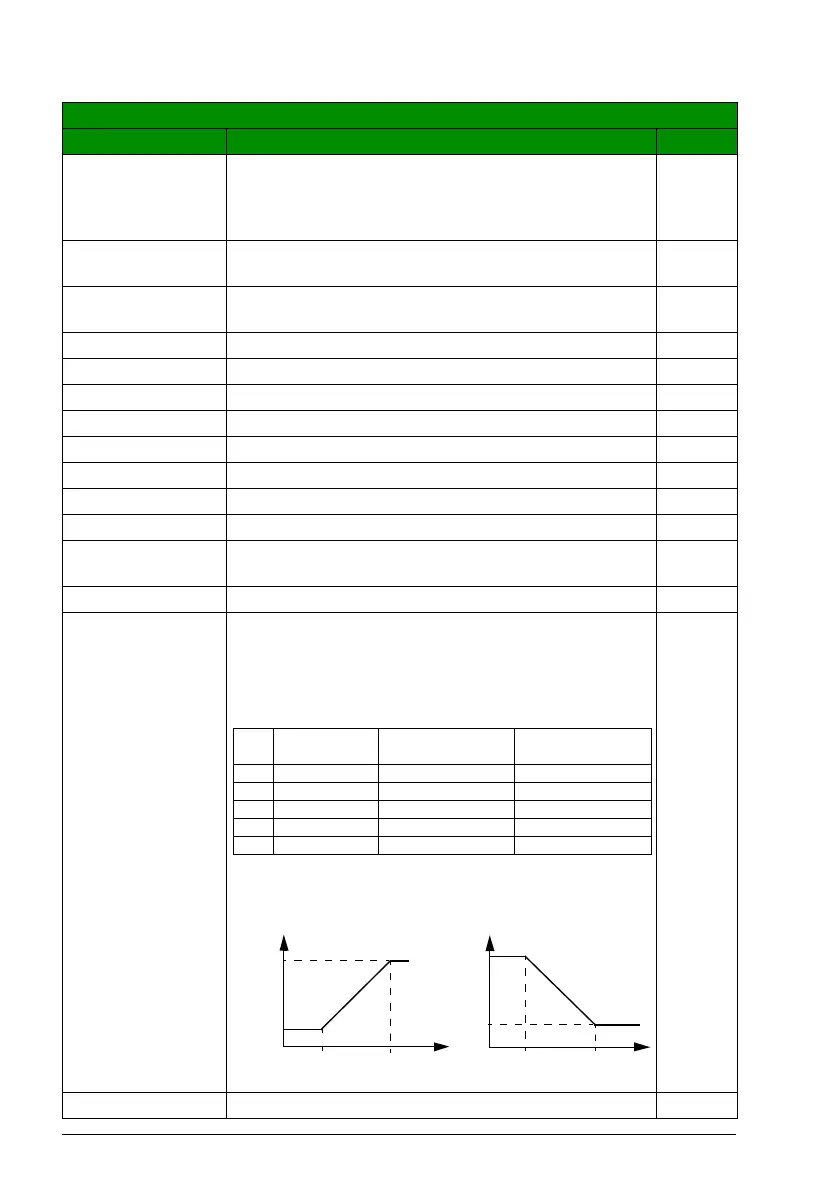

4018 ACT1
MINIMUM
Sets the minimum value for ACT1.
Scales the source signal used as the actual value ACT1
(defined by parameter 4016 ACT1 INPUT). For parameter
4016 values 6 (COMM ACT 1) and 7 (COMM ACT 2)
scaling is not done.
A = Normal; B = Inversion (ACT1 minimum > ACT1
maximum)
0%
-1000…1000% Value as a percentage 1 = 1%
All parameters
No. Name/Value Description Def/FbEq
Par
4016
Source Source min. Source max.
1 Analog input 1 1301 MINIMUM AI1 1302 MAXIMUM AI1
2 Analog input 2 1304 MINIMUM AI2 1305 MAXIMUM AI2
3 Current 0 2
·
nominal current
4 Torque -2
·
nominal torque 2
·
nominal torque
5Power -2
·
nominal power 2
·
nominal power
4019
4018
Source min.
4018
4019
ACT1 (%)
ACT1 (%)
A
B
Source max.
Source signal
Source min. Source max.
Source signal
