15.02 AO1 filt time Defines the filtering time constant for analogue output AO1.
0.000 … 30.000 s Filter time constant. 1000 = 1 s
15.03 AO1 out max Defines the maximum output value for analogue output AO1.
0.000 … 22.700 mA Maximum AO1 output value. 1000 = 1 mA
15.04 AO1 out min Defines the minimum output value for analogue output AO1.
0.000 … 22.700 mA Minimum AO1 output value. 1000 = 1 mA
No. Name/Value Description FbEq
63
%
100
T
t

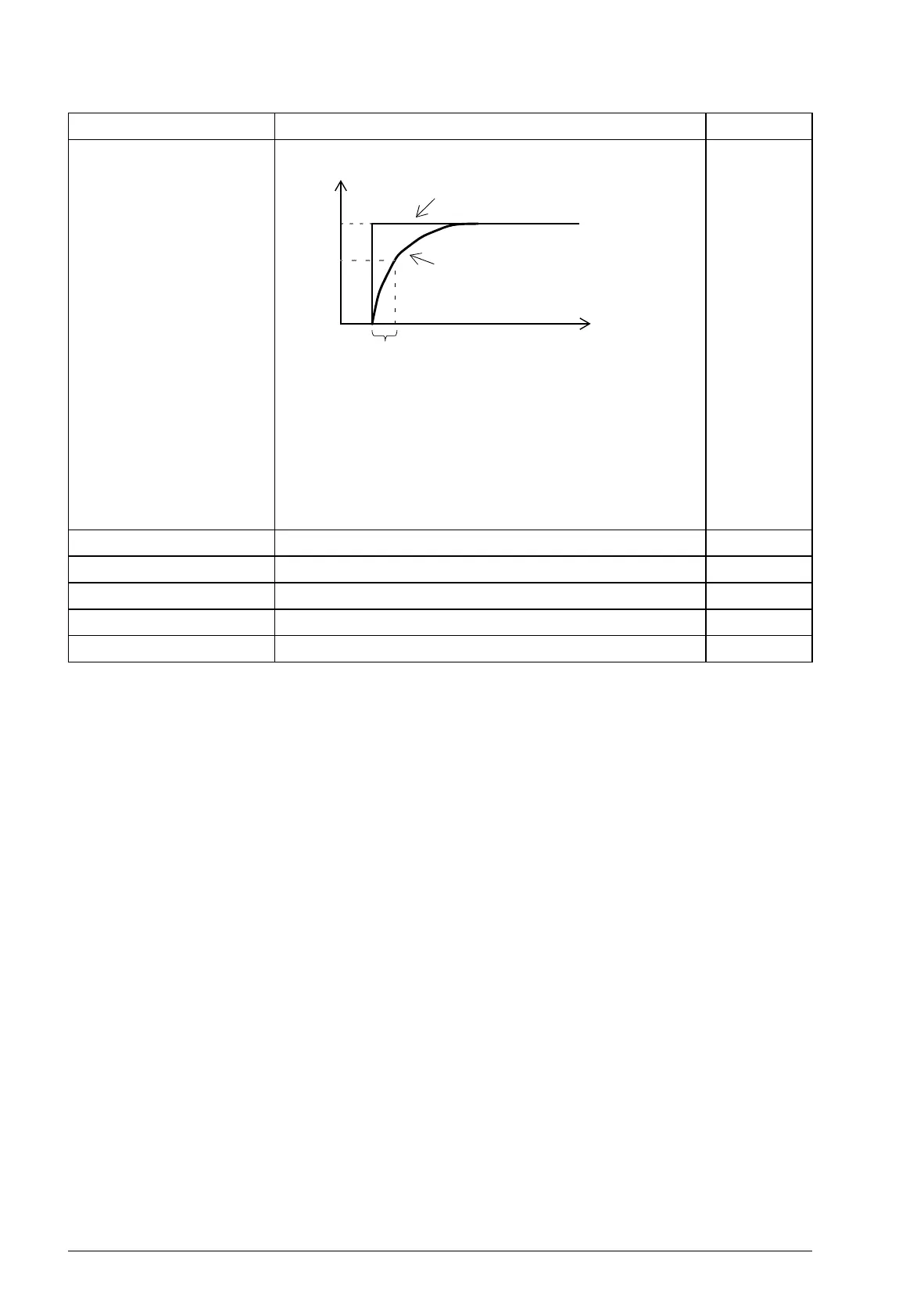

O = I × (1 - e
-t/T
)
I = filter input (step)
O = filter output
t = time
T = filter time constant
Unfiltered signal
Filtered signal
