ABB ACS850 - Parameters

The ACS850 control panel 25
 Parameters
In the Parameters option, you can:
• view and change parameter values
• start, stop, change the direction and switch between local and remote control.

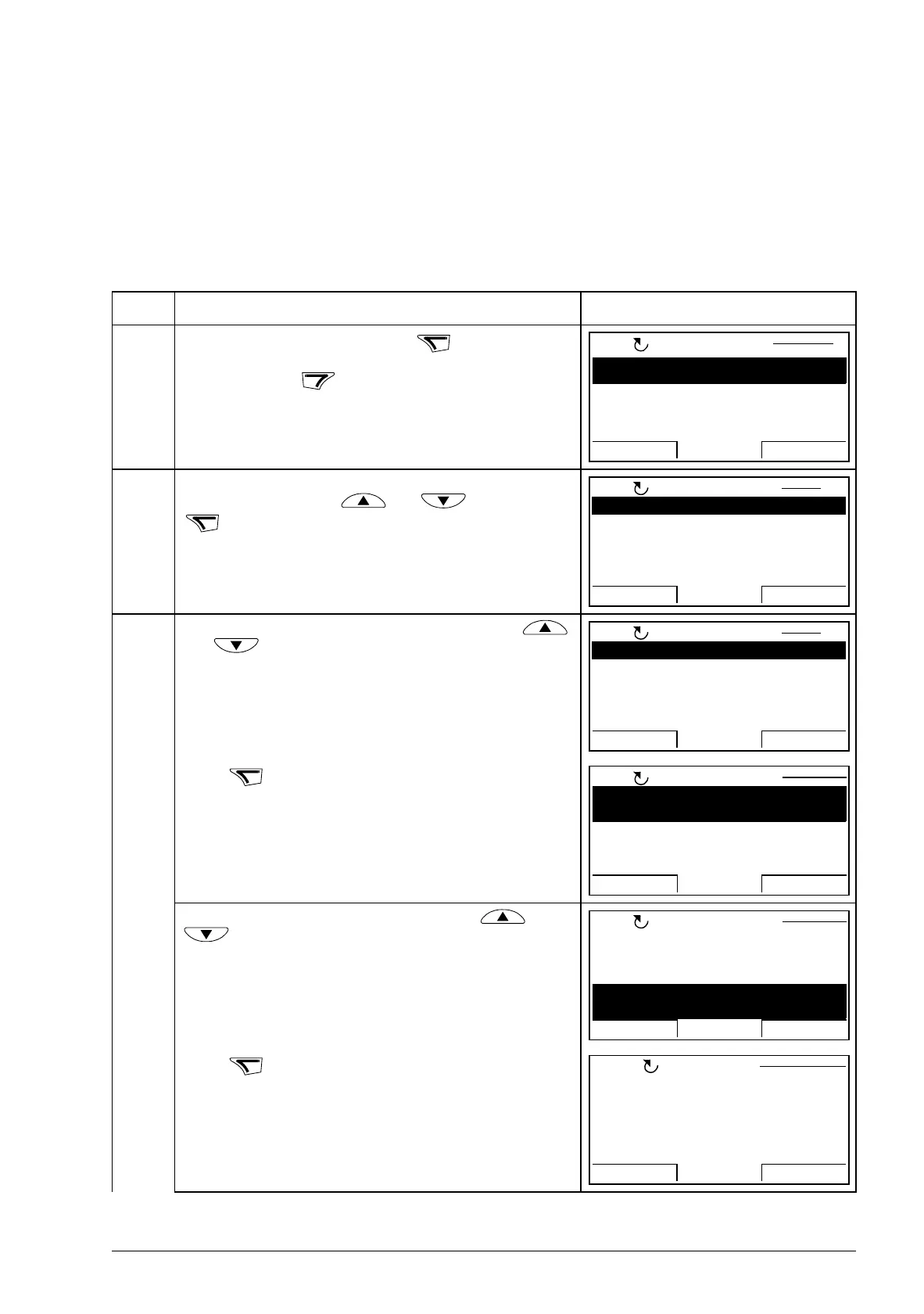

How to select a parameter and change its value
Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode.
Otherwise press repeatedly until you get to the
Main menu.
2. Go to the Parameters option by selecting PARAMETERS
on the menu with keys and , and pressing
.
3. Select the appropriate parameter group with keys
and .
Press .
4. Select the appropriate parameter with keys and
. The current value of the parameter is shown
below the selected parameter. Here the parameter 99.06
Mot nom current is used as an example.
Press .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1
LOC
ENTER
01 Actual values
02 I/O values
03 Control values
04 Appl values
06 Drive status
EXIT SEL
00:00
PAR GROUPS 01
LOC
99 Start-up data
01 Actual values
02 I/O values
03 Control values
04 Appl values
EXIT SEL
00:00
PAR GROUPS 99
LOC
SEL
9901 Language
English
9904 Motor type
9905 Motor ctrl mode
9906 Mot nom current
PARAMETERS
EXIT EDIT
00:00
LOC
9901 Language
9904 Motor type
9905 Motor ctrl mode
9906 Mot nom current
0.0 A
PARAMETERS
EXIT EDIT
00:00
LOC
EDIT
9906 Mot nom current
PAR EDIT
0.0 A
CANCEL SAVE00:00
LOC
