212 Parameters

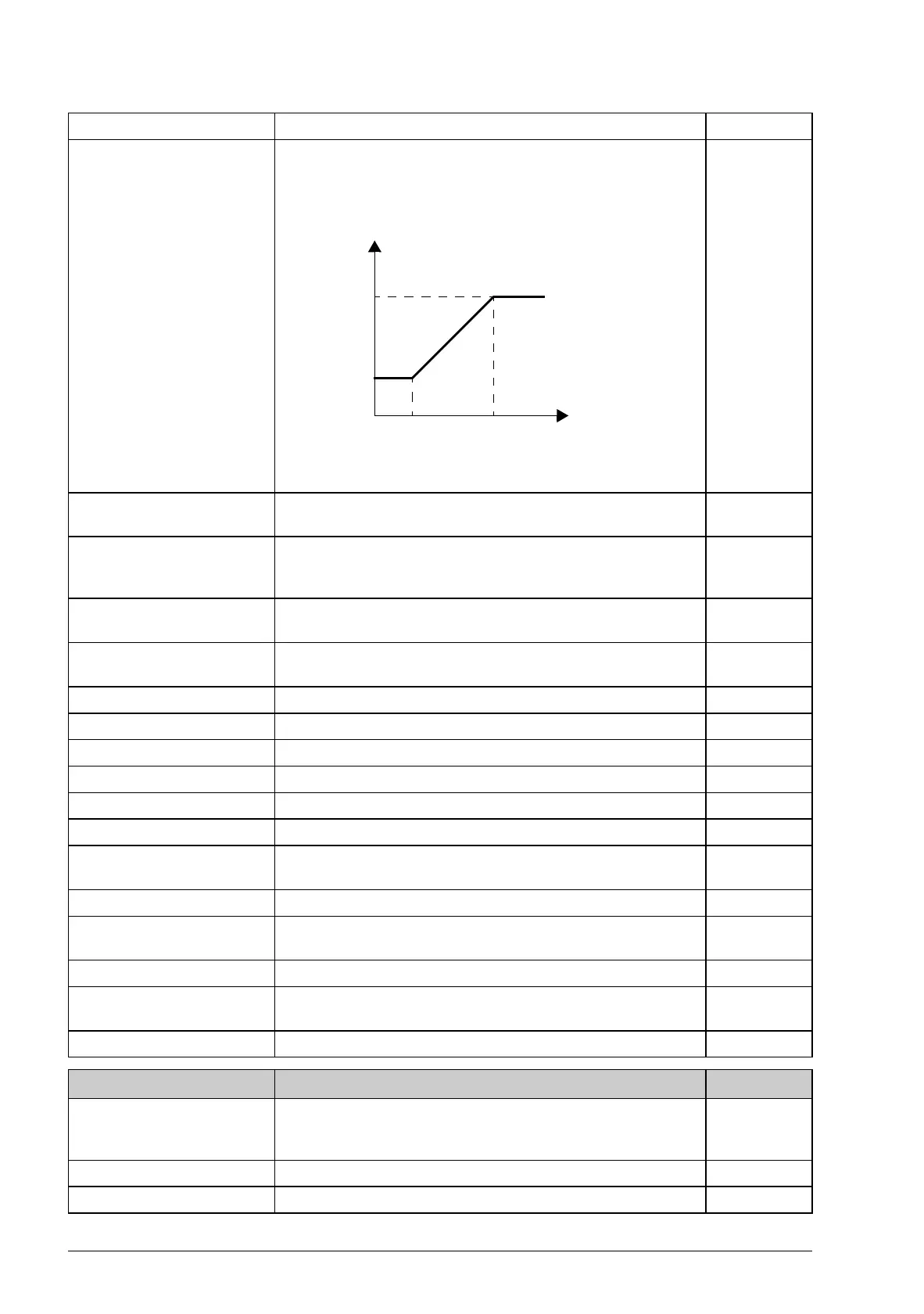

35.16 Signal3 max Defines the real value of the selected signal that corresponds
to the maximum display value defined by parameter 35.20
Proc var3 max.
-32768…32768 Real signal value corresponding to maximum process
variable 3 value.
1 = 1
35.17 Signal3 min Defines the real value of the selected signal that corresponds
to the minimum display value defined by parameter 35.21
Proc var3 min. See diagram at parameter 35.16 Signal3 max.
-32768…32768 Real signal value corresponding to minimum process variable
3 value.
1 = 1
35.18 Proc var3 dispf Scaling for process variable 3. This setting also scales the
value for fieldbus.
01 = 1 0
110 = 1 1
2100 = 1 2
3 1000 = 1 3
4 10000 = 1 4
5 100000 = 1 5
35.19 Proc var3 unit Specifies the unit for parameter 04.08 Process var3 (process
variable 3).
0…98 See parameter 35.05 Proc var1 unit.1 = 1
35.20 Proc var3 max Maximum value for process variable 3. See diagram at
parameter 35.16 Signal3 max.
-32768…32768 Maximum value for process variable 3. 1 = 1
35.21 Proc var3 min Minimum value for process variable 3. See diagram at
parameter 35.16 Signal3 max.
-32768…32768 Minimum value for process variable 3. 1 = 1
36
36 Timed functions
Configuration of timers. See also section Timers on page 76.
36.01 Timers enable Enable/disable control for timers. Whenever the source
selected by this parameter is off, timers are disabled; when
the source is on, timers are enabled.
DI1 Digital input DI1 (as indicated by 02.01 DI status, bit 0). 1073742337
DI2 Digital input DI2 (as indicated by 02.01 DI status, bit 1). 1073807873
No. Name/Value Description FbEq
35.17
35.20
35.21
35.16
04.08 Process var3
Signal selected by
35.15 Signal3 param
