Parameters 207

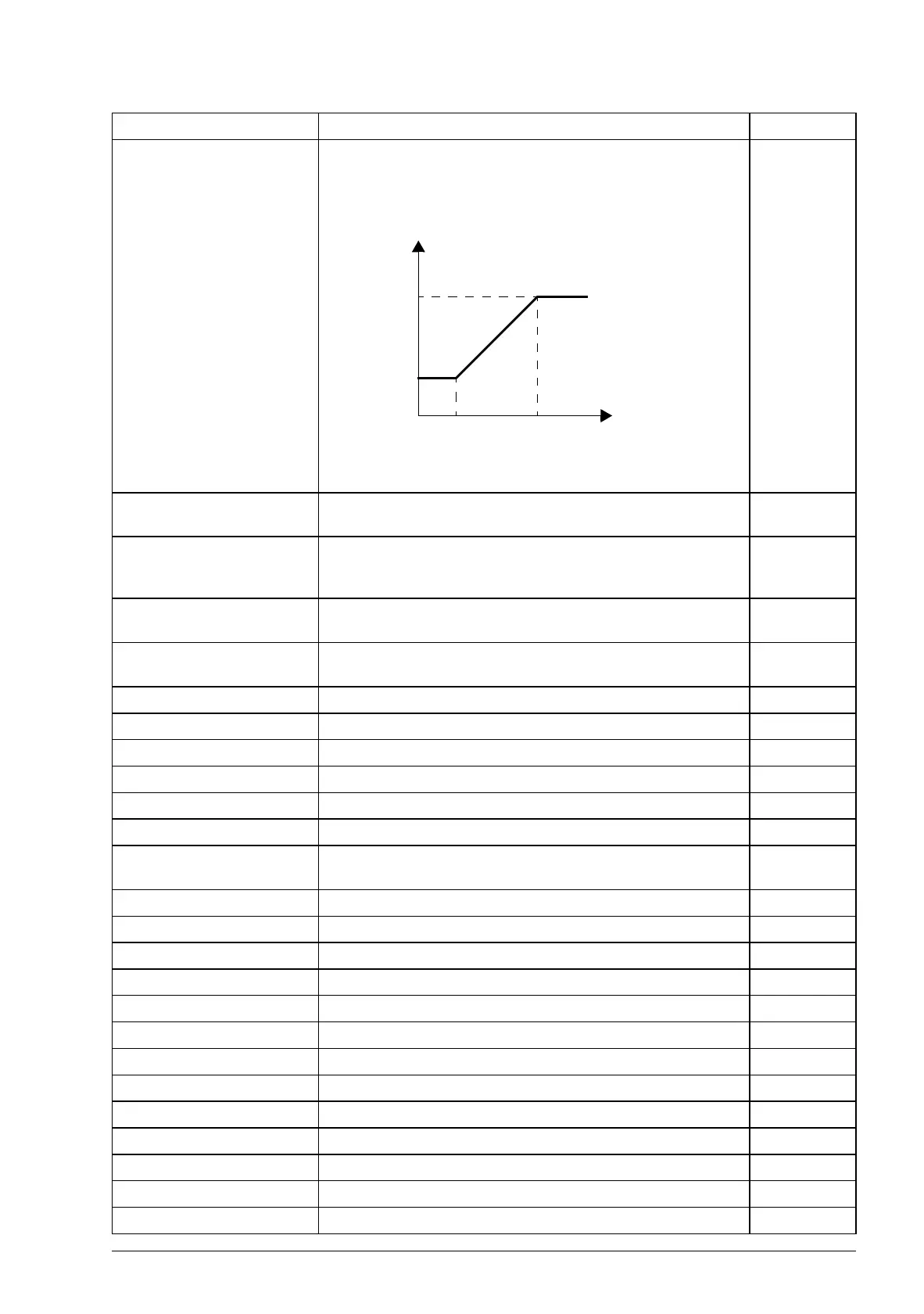

35.02 Signal1 max Defines the real value of the selected signal that corresponds
to the maximum display value defined by parameter 35.06
Proc var1 max.
-32768…32768 Real signal value corresponding to maximum process
variable 1 value.
1 = 1
35.03 Signal1 min Defines the real value of the selected signal that corresponds
to the minimum display value defined by parameter 35.07
Proc var1 min. See diagram at parameter 35.02 Signal1 max.
-32768…32768 Real signal value corresponding to minimum process variable
1 value.
1 = 1
35.04 Proc var1 dispf Scaling for process variable 1. This setting also scales the
value for fieldbus.
01 = 1 0
1 10 = 1 1
2 100 = 1 2
3 1000 = 1 3
4 10000 = 1 4
5 100000 = 1 5
35.05 Proc var1 unit Specifies the unit for parameter 04.06 Process var1 (process
variable 1).
0None 0
1A 1
2V 2
3Hz 3
4% 4
5s 5
6h 6
7rpm 7
8kh 8
9C 9
10 lbft 10
11 mA 11
12 mV 12
No. Name/Value Description FbEq
35.03
35.06
35.07
35.02
04.06 Process var1
Signal selected by
35.01 Signal1 param
