210 Parameters
97 us 97
98 C/W 98
35.06 Proc var1 max Maximum value for process variable 1. See diagram at
parameter 35.02 Signal1 max.
-32768…32768 Maximum value for process variable 1. 1 = 1
35.07 Proc var1 min Minimum value for process variable 1. See diagram at
parameter 35.02 Signal1 max.
-32768…32768 Minimum value for process variable 1. 1 = 1
35.08 Signal2 param Selects a signal to be provided as parameter 04.07 Process
var2.
Speed rpm 01.01 Motor speed rpm (see page 103). 1073742081
Speed % 01.02 Motor speed % (see page 103). 1073742082
Frequency 01.03 Output frequency (see page 103). 1073742083
Current 01.04 Motor current (see page 103). 1073742084
Current % 01.05 Motor current % (see page 103). 1073742085
Tor q u e 01.06 Motor torque (see page 103). 1073742086
Dc-voltage 01.07 Dc-voltage (see page 103). 1073742087
Power inu 01.22 Power inu out (see page 103). 1073742102
Power motor 01.23 Motor power (see page 103). 1073742103
SpRef unramp 03.03 SpeedRef unramp (see page 114). 1073742595
SpRef ramped 03.05 SpeedRef ramped (see page 114). 1073742597
SpRef used
03.06 SpeedRef used (see page 114). 1073742598
Tor q R e f use d 03.14 Torq ref used (see page 115). 1073742606
Process act 04.03 Process act (see page 115). 1073742851
Proc PID out 04.05 Process PID out (see page 115). 1073742853
Pointer Value pointer setting (see Terms and abbreviations on page
102).
-

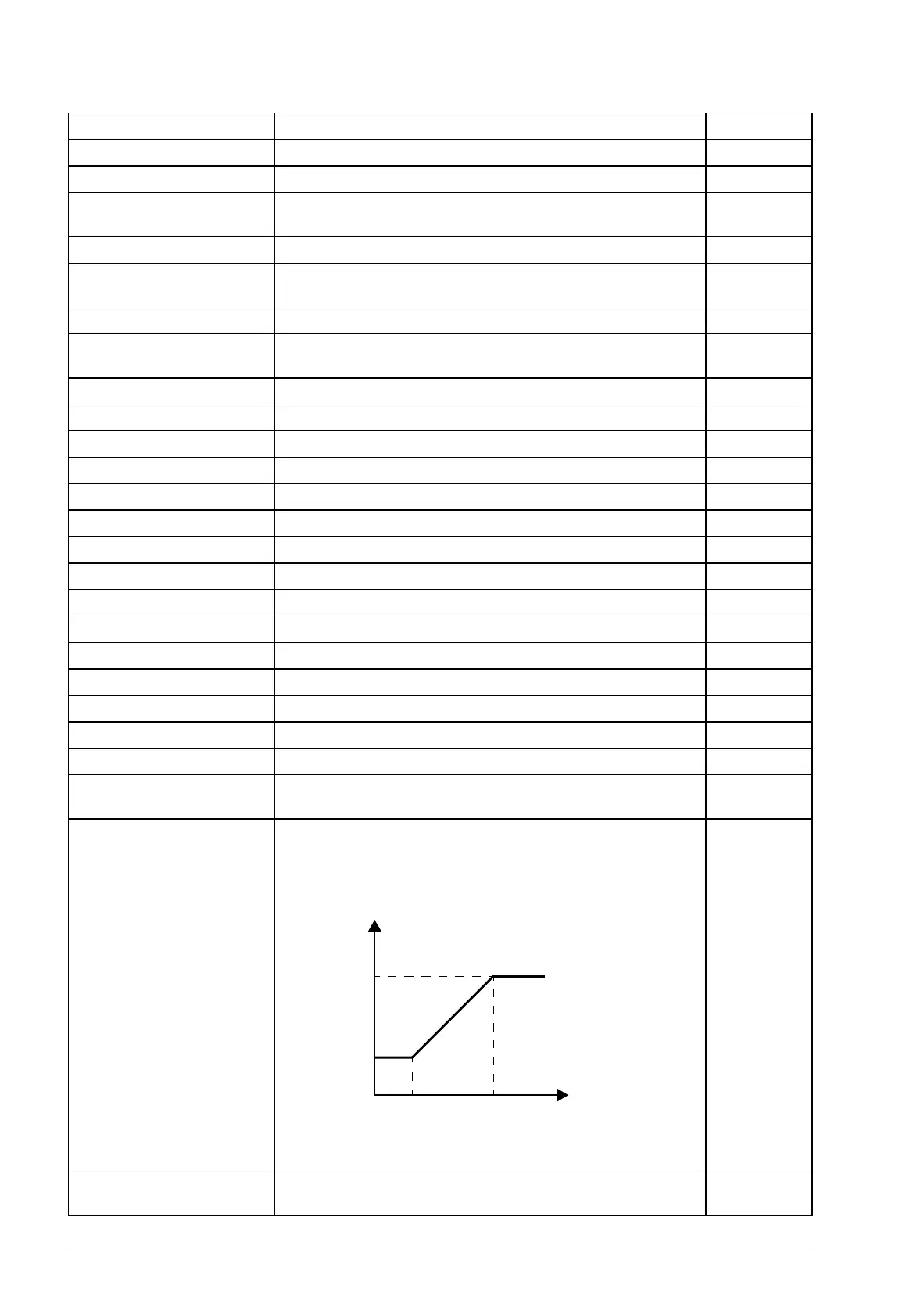

35.09 Signal2 max Defines the real value of the selected signal that corresponds
to the maximum display value defined by parameter 35.13
Proc var2 max.
-32768…32768 Real signal value corresponding to maximum process
variable 2 value.
1 = 1
No. Name/Value Description FbEq
35.10
35.13
35.14
35.09
04.07 Process var2
Signal selected by
35.08 Signal2 param
