The ACS850 control panel 17
Layout

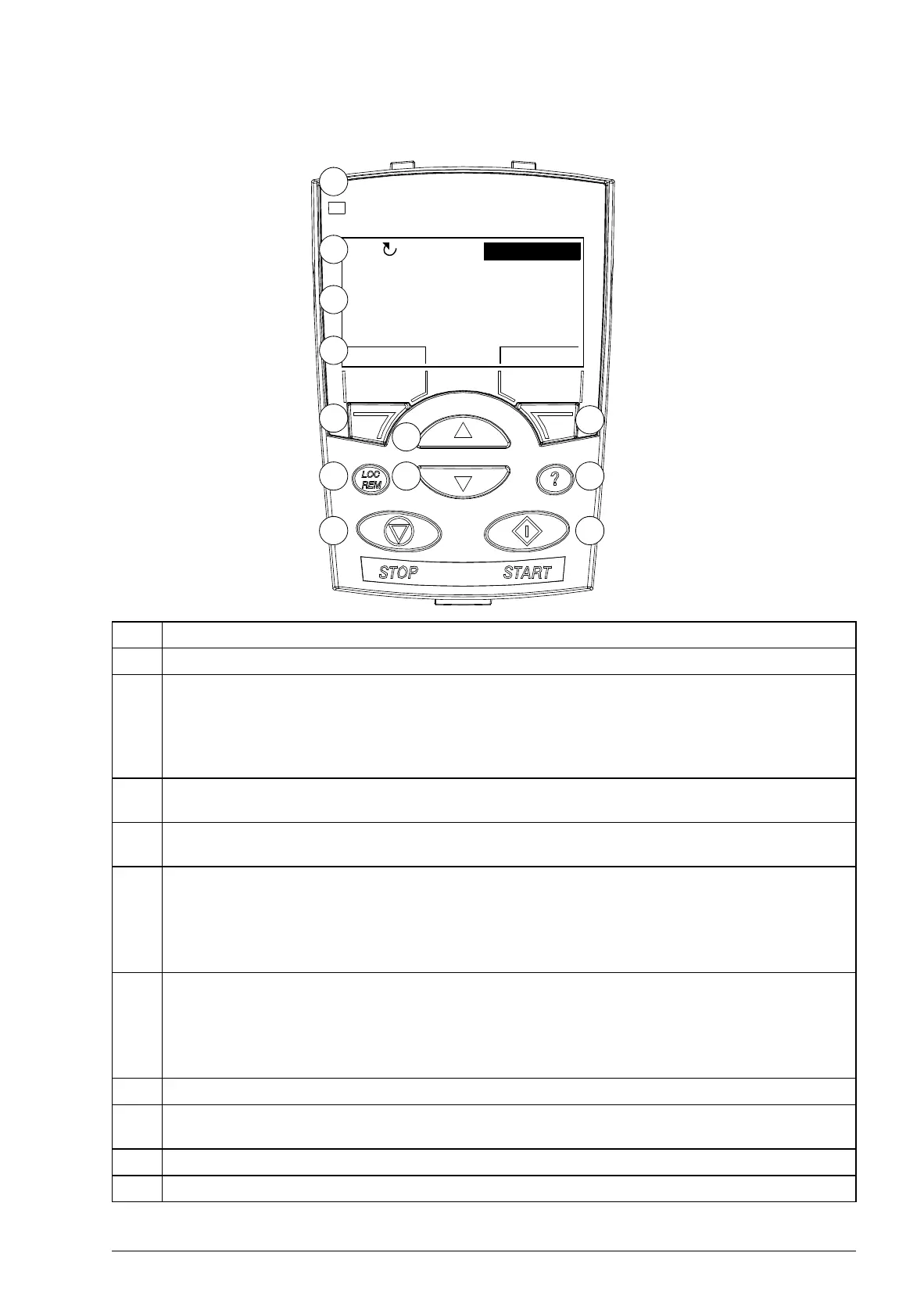

No. Use
1 Status LED – Green for normal operation.
2 LCD display – Divided into three main areas:
Status line – variable, depending on the mode of operation, see section Status line on page 18.
Center – variable; in general, shows signal and parameter values, menus or lists. Shows also faults
and alarms.
Bottom line – shows current functions of the two soft keys and, if enabled, the clock display.
3 Soft key 1 – Function depends on the context. The text in the lower left corner of the LCD display
indicates the function.
4 Soft key 2 – Function depends on the context. The text in the lower right corner of the LCD display
indicates the function.
5 Up –
Scrolls up through a menu or list displayed in the center of the LCD display.
Increments a value if a parameter is selected.
Increments the reference value if the upper right corner is highlighted.
Holding the key down changes the value faster.
6 Down –
Scrolls down through a menu or list displayed in the center of the LCD display.
Decrements a value if a parameter is selected.
Decrements the reference value if the upper right corner is highlighted.
Holding the key down changes the value faster.
7 LOC/REM – Changes between local and remote control of the drive.
8 Help – Displays context sensitive information when the key is pressed. The information displayed
describes the item currently highlighted in the center of the display.
9 STOP – Stops the drive in local control.
10 START – Starts the drive in local control.
