The ACS850 control panel 49
 Reference Edit
In the Reference Edit option, you can:
• accurately control the local reference value,
• start, stop, change the direction and switch between local and remote control.
Editing is allowed only in the LOC state, the option always edits the local reference
value.

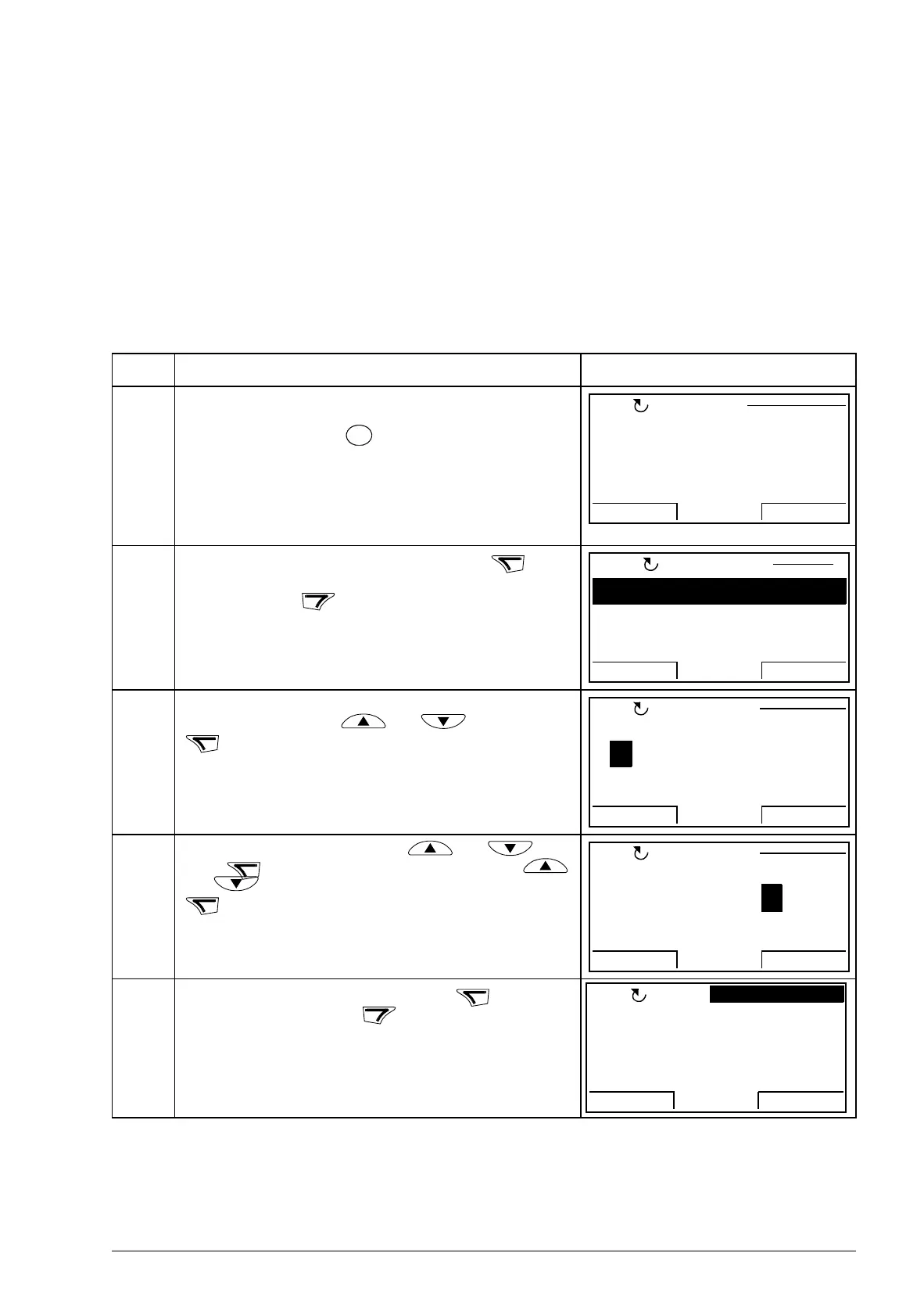

How to edit reference value
Step Action Display
1. If the panel is in the remote control mode (REM shown on
the status line), switch to local control (LOC shown on the
status line) by pressing . Reference editing is not
possible in remote control mode. (See page 22 for more
information on switching between the local and remote
control modes.)
The display shows a message about that if you try to
enter REF EDIT in the remote control mode.
2. Otherwise, go to the Main menu by pressing if you
are in the Output mode.
Otherwise press repeatedly until you get to the
Main menu.
3. Go to the Reference Edit option by selecting REF EDIT
on the menu with keys and , and pressing
.
4. Select the correct sign with keys and , and
press . Select the correct numbers with keys
and , and after each number is selected, press
.
5. After the last number is selected, press . Go to the
Output mode by pressing . The selected reference
value is shown in the status line.
LOC
REM
Reference editing
enabled only in
local control mode
MESSAGE
REM
00:00
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1
LOC
ENTER
0000.00 rpm
+
REF EDIT
CANCEL NEXT
00:00
LOC
NEXT
NEXT
1250.00 rpm
-
REF EDIT
CANCEL
SAVE
00:00
LOC
SAVE
EXIT
-1250.00rpm
50 A
10 Hz
7
%
10.
0.
49.
LOC
DIR
MENU
00:00
