48 The ACS850 control panel

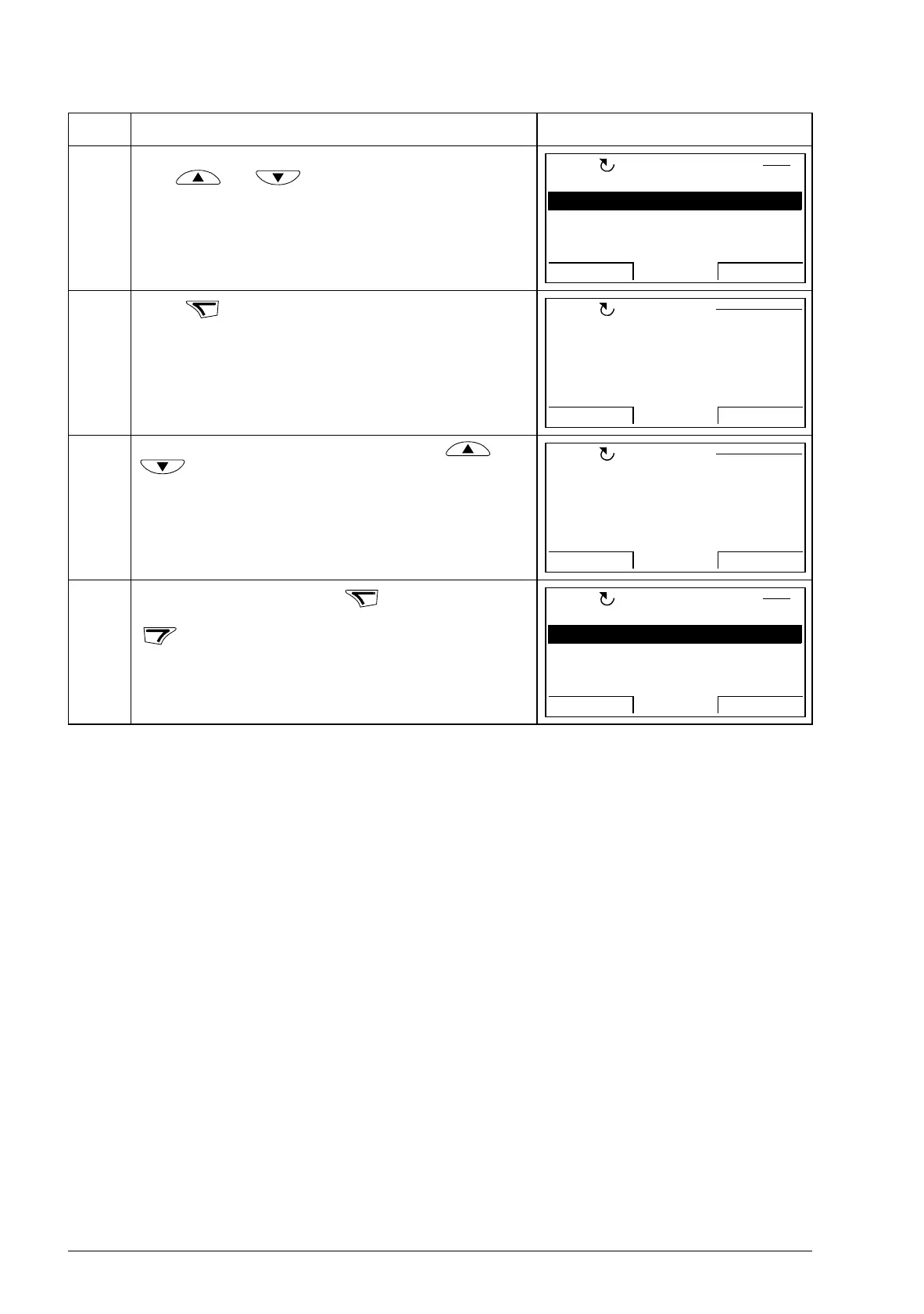

5. Select the setting (line with a parameter number) with
keys and . You can edit the parameter
(INFO selection turns into EDIT selection).
6. Press .
7. Specify a new value for the setting with keys and
.
Pressing the key once increments or decrements the
value. Holding the key down changes the value faster.
Pressing the keys simultaneously replaces the displayed
value with the default value.
8. To save the new value, press .
To cancel the new value and keep the original, press
.
